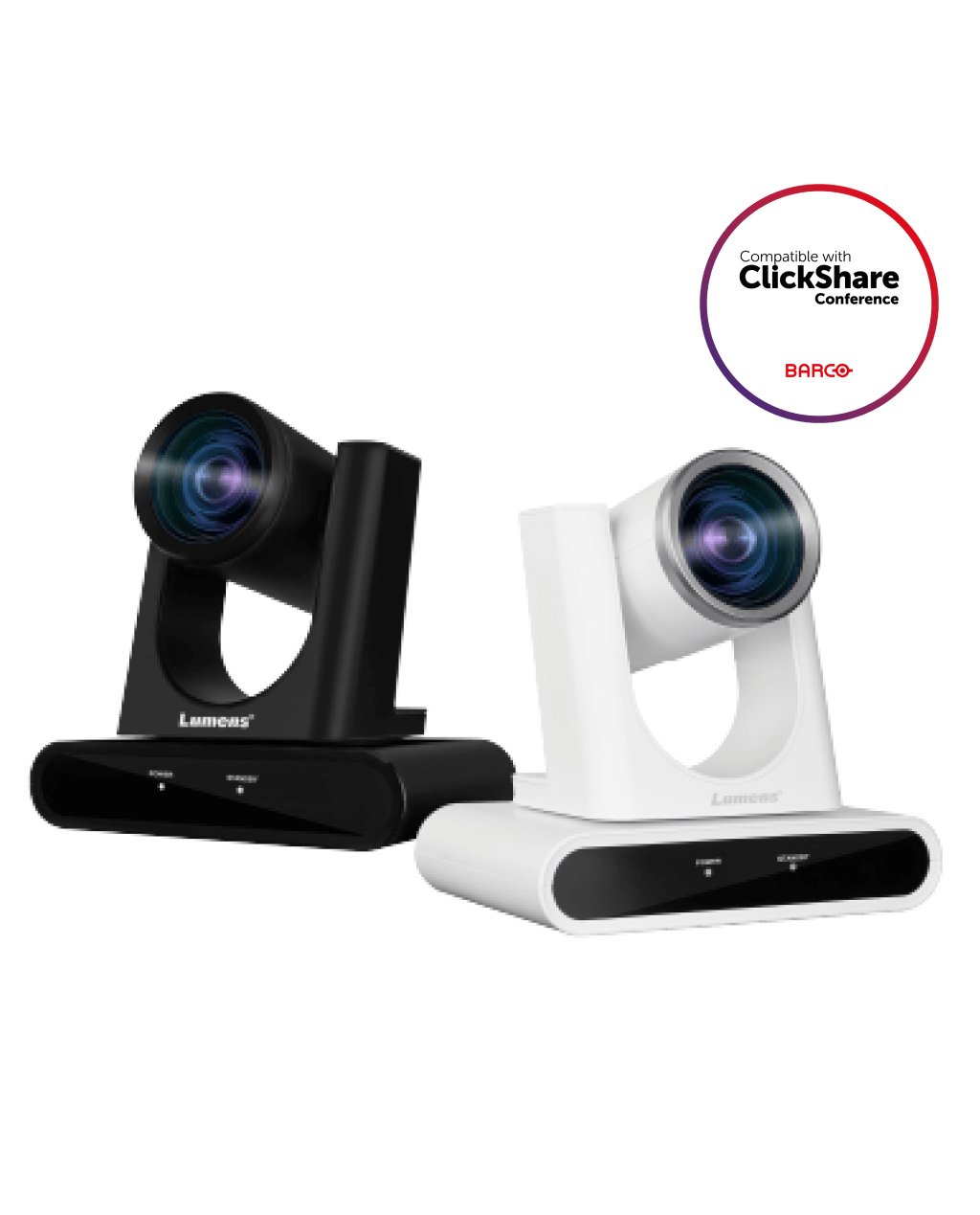

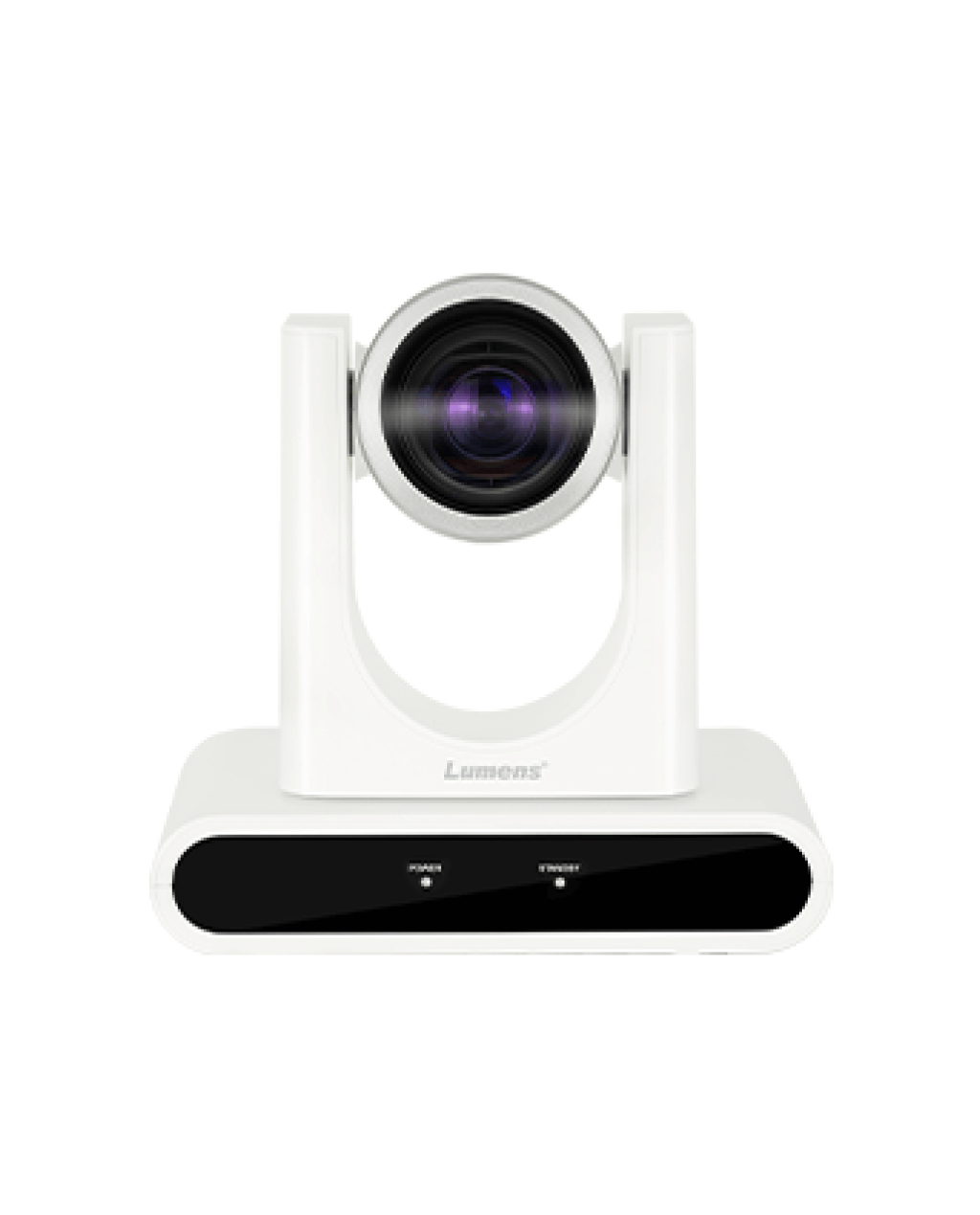

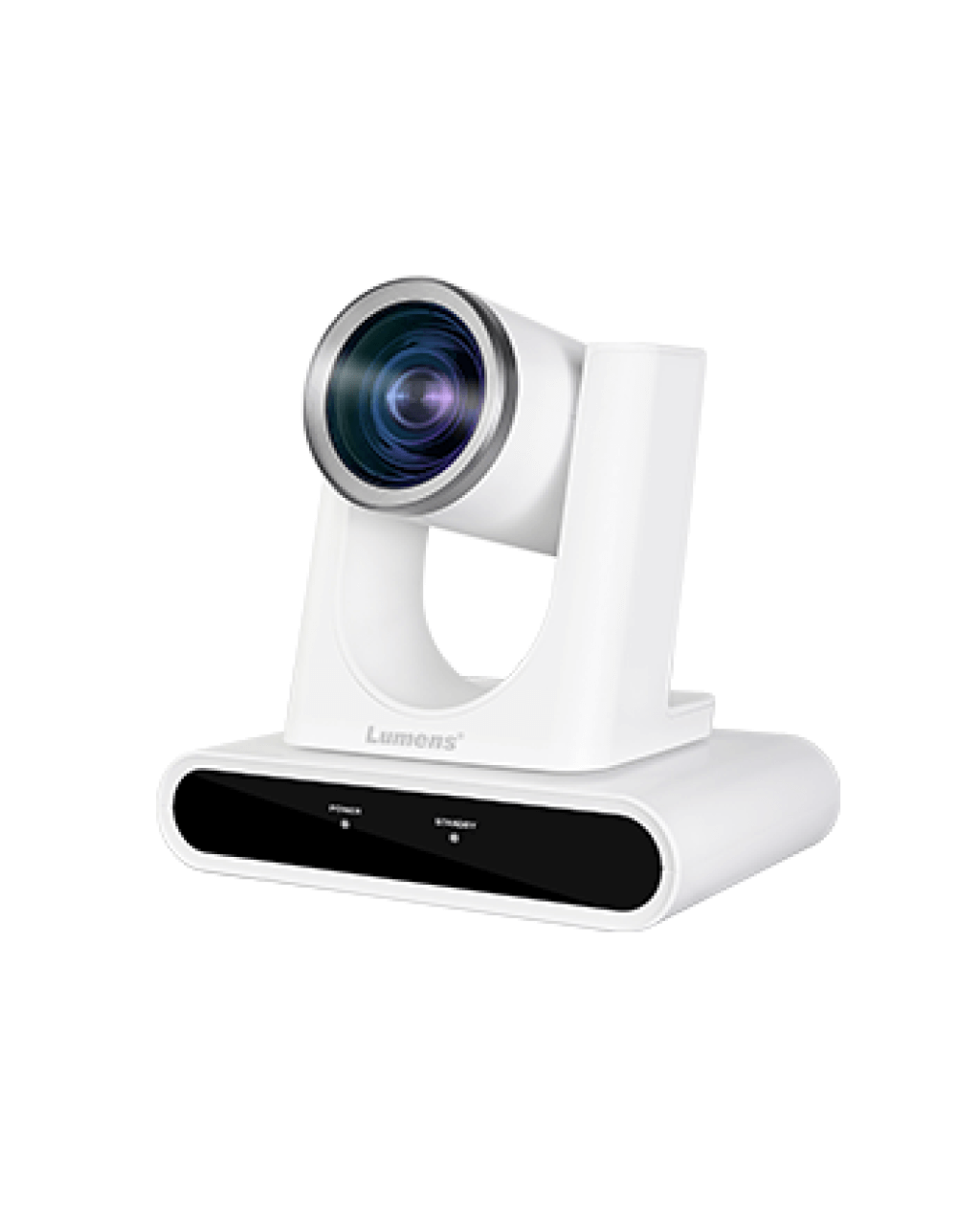

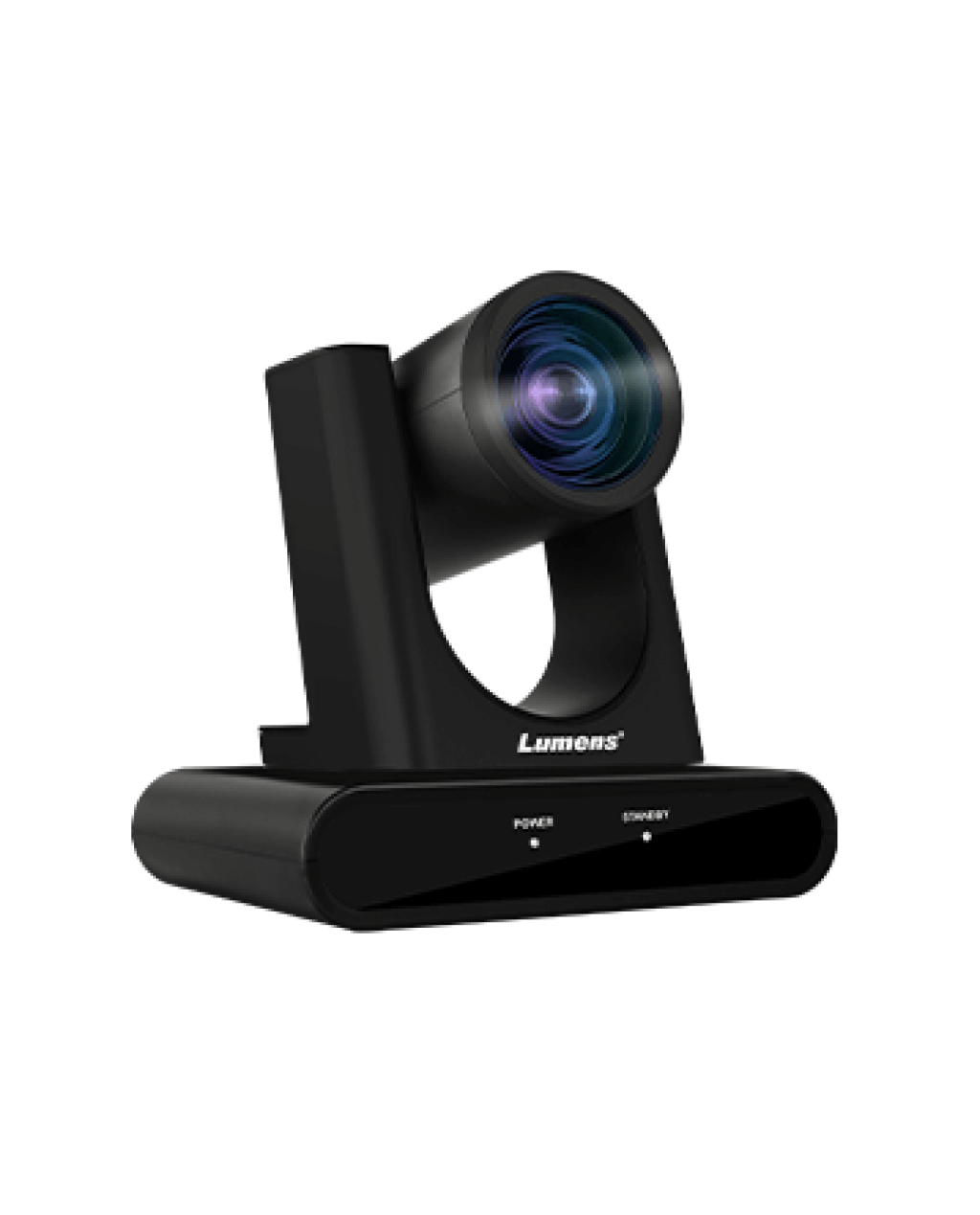

VC-R31 Full HD USB PTZ Camera


Professional PTZ Video Camera

A 1080p 60fps PTZ camera with 12x zoom, HDMI, USB, and IP streaming.

Features:

  • 1080p 60fps
  • Superb value for money
  • 12x zoom / 72.5° horizontal field of view
  • Simultaneous HDMI, USB, and IP streaming output
  • Outstanding color reproduction
  • 5-year warranty*

Studio Quality Video

Equipped with a professional 1/2.8 inch image sensor, the vc-r30 provides Great output in all lighting conditions. The sharp lens, intelligent white balance, And auto-exposure mode combine to deliver clear pictures. The camera handles Skin tones, high contrast, low and mixed lighting conditions extremely well.\

Ideal for Video Conferences

Covering a wide 72.5° horizontal fov and with plug and play usb, the Camera is a great option for video conferencing. The versatile zoom lens Can capture everyone in a medium-sized conference room. Vc-r30 Connects to the host computer via usb running popular video Conferencing applications such as teams, webex, skype, and zoom.

PTZ Camera Malaysia

PTZ Camera Malaysia

Smooth Motion PTZ

The 12x optical zoom offers fantastic flexibility making the camera Suitable for positioning anywhere from the back of an auditorium to an Interactive training room. Whenever the operator needs a panning Movement across a stage, a close-up focus on the presenter, or a wide- Angle shot, it maintains a steady image while the camera moves. Lumens’ autofocus system enables the vc-r30 to deliver sharp pictures Even while the camera is in motion or when the zoom angle changes.

Live Streaming and Virtual Meetings

Video output is via usb 3.0, hdmi, 3g-sdi, and ethernet simultaneously, giving users great| Workflow options. The camera can be controlled and monitored locally or remotely over an Ip network. It’s suitable for hosting a live and virtual conference at the same time, tackling The issue of space and engaging with audiences both local and remote. Compliant with Most video production, video conference, and streaming applications, including zoom, Skype, webex, teams, google meet, wowza, youtube, obs, and wirecast.

VC-R30 Full HD USB PTZ Camera

Specification

Sensor
1/1.8″ 9.17MP CMOS
Video Format
2160p: 59.94 / 50 / 29.97 / 25
1080p: 59.94 / 50 / 29.97 / 25
1080i: 59.94 / 50
720p: 59.94 / 50 / 29.97 / 25
Video Output (HD) Interface
12G-SDI / HDMI 2.0 / Ethernet / USB 3.0
Optical Zoom
30x
Digital Zoom
12x
Viewing Angle
63° (H) 35.4° (V) 72.3° (D)
Aperture
F1.6 ~ F4.8
Focal Length
6.5mm ~ 202mm
Shutter Speed
1/1 ~ 1/10,000 sec
Minimum Object Distance
1.5m (Wide/Tele)
Video S/N Ratio
> 50dB
Minimum Illumination
0.05 lux (F1.6, 50IRE, 30fps)
Focus System
Auto / Manual / Smart AF
Gain Control
Auto / Manual
White Balance
Auto / Manual

Exposure Control
Auto / Manual
WDR
Yes
3D NR
Yes
Image Flip
Yes
AR/VR Systems
FreeD
Tally Light
Yes
Panning Angle
+170° ~ -170°
Panning Speed
300°/sec
Tilting Angle
+90° ~ -30°
Tilting Speed
300°/sec
Preset Positions
256
Multiple Video Stream
HEVC 4K 59.94fps
H.264 1080p 59.94fps
H.264 640×360 29.97fps
HDMI / 12G-SDI
2160p59.94
IP Stream
HEVC 4K 59.94fps
H.264 1080p 59.94fps
H.264 640×360 29.97fps

IP Compression
HEVC(H.265) / H.264
USB Output
H.264 4K30fps
MJPEG 1080p30
USB Compression
H.264 / MJPEG
IP Protocol
RTSP / RTMP / RTMPS / MPEG-TS / SRT
PoE
PoE++ (IEEE802.3bt)
Audio Input
Line In / MIC In, Phone Jack 3.5mm x1
Audio Output
Ethernet / 12G-SDI / HDMI 2.0
Audio Compression Format
G.711

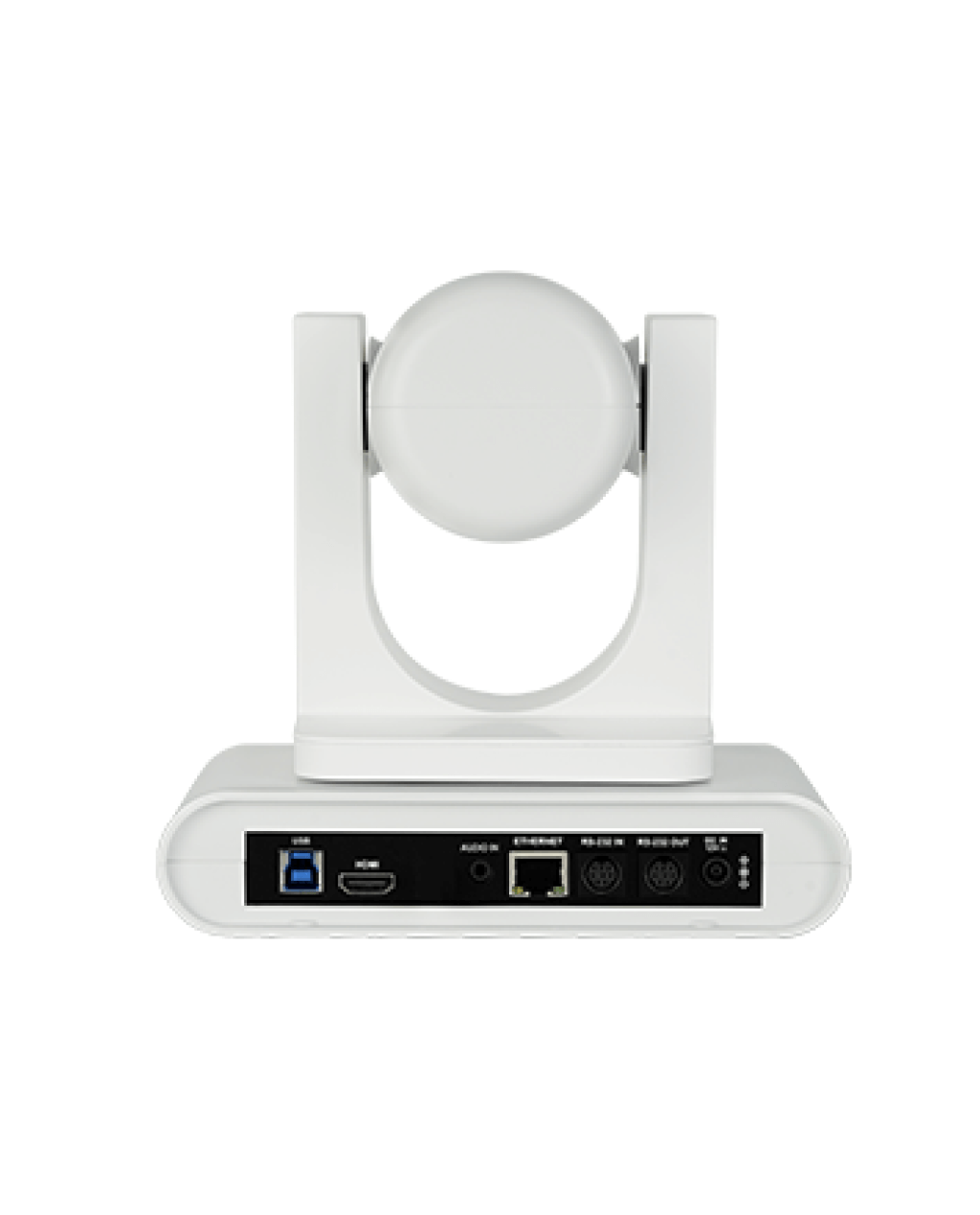

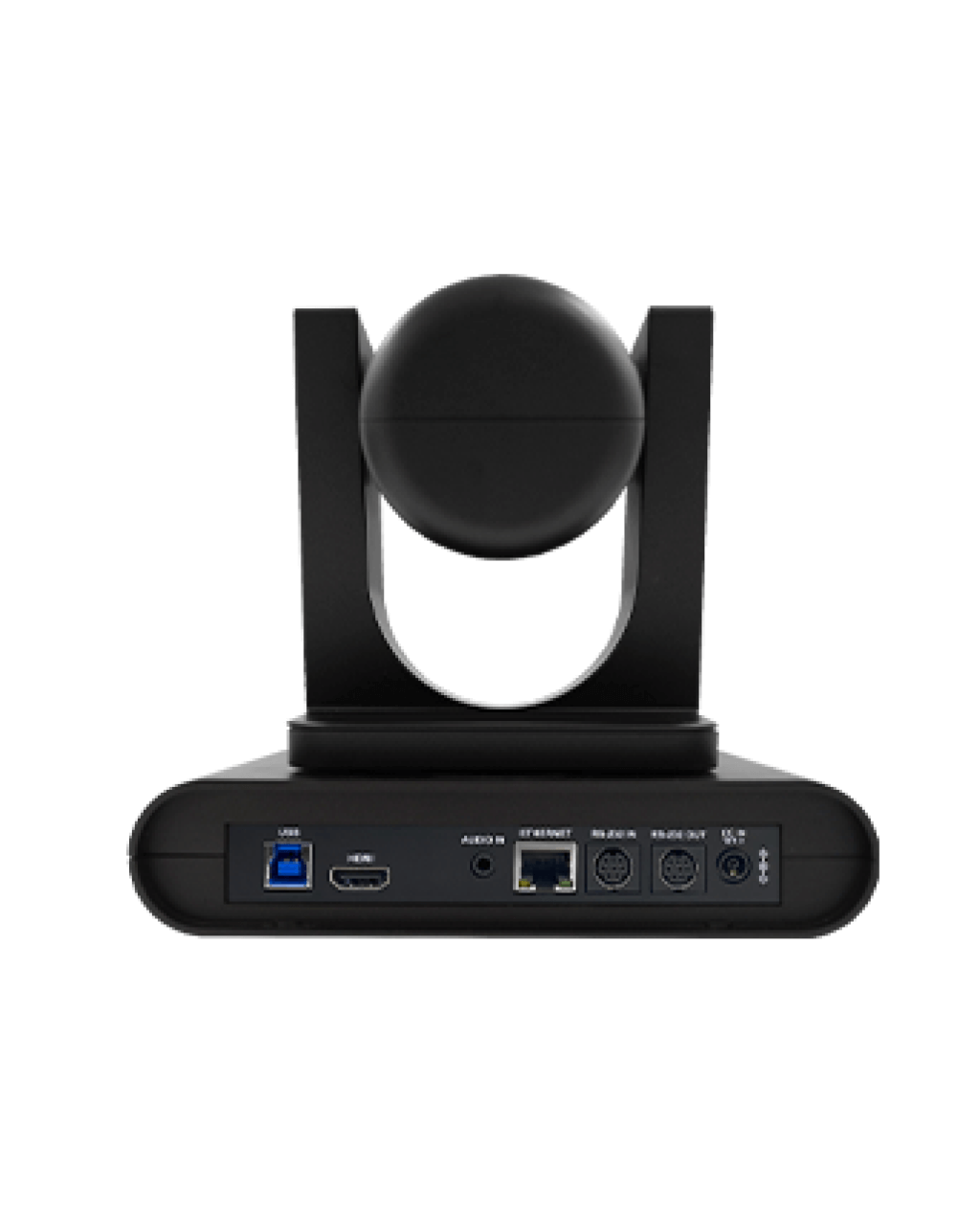

Control Interface
RS-232 / RS-422 / Ethernet / USB 3.0/ Remote
Control Protocol
VISCA / VISCAIP / PELCO D / ONVIF / UVC
DC In
12V +/- 20%
Power Consumption
PoE: 27.5 W
DC In: 27 W
Weight
6.6lbs (3 kg)
Dimensions
9.2″ x 7.4″ x 7.4″
(232 x 188 x 189 mm)

Downloads

Lumens VC-R31 – Flyer
