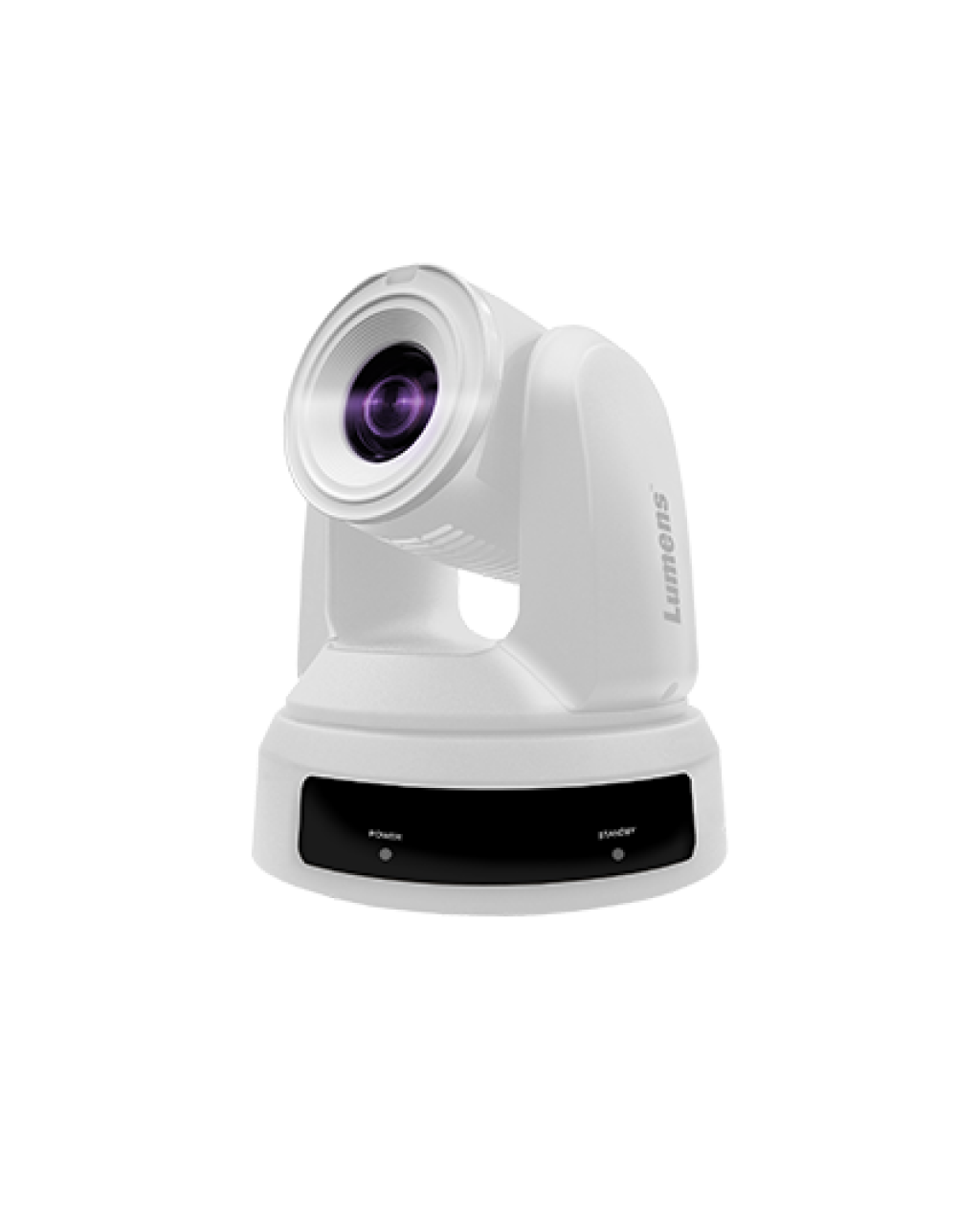

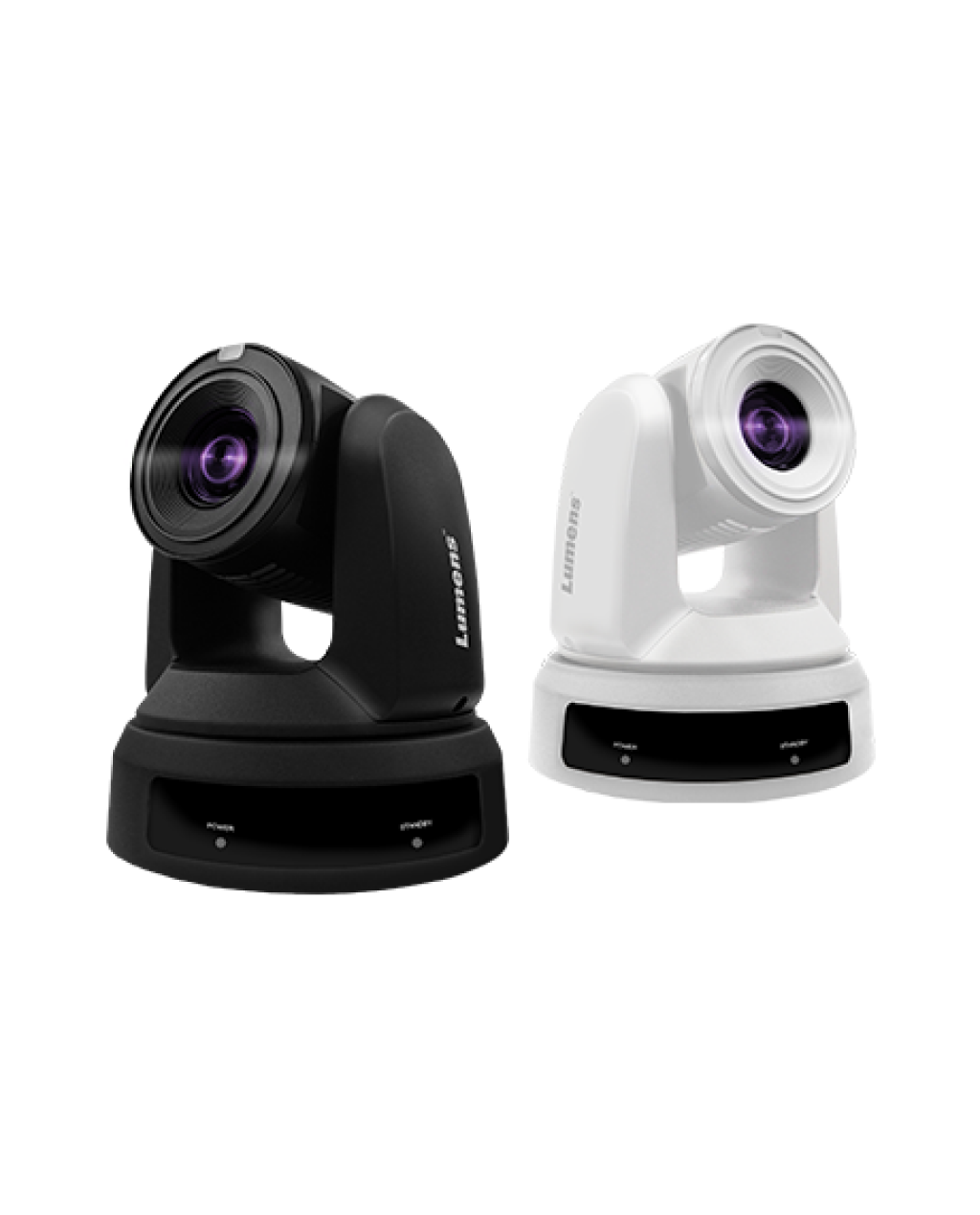

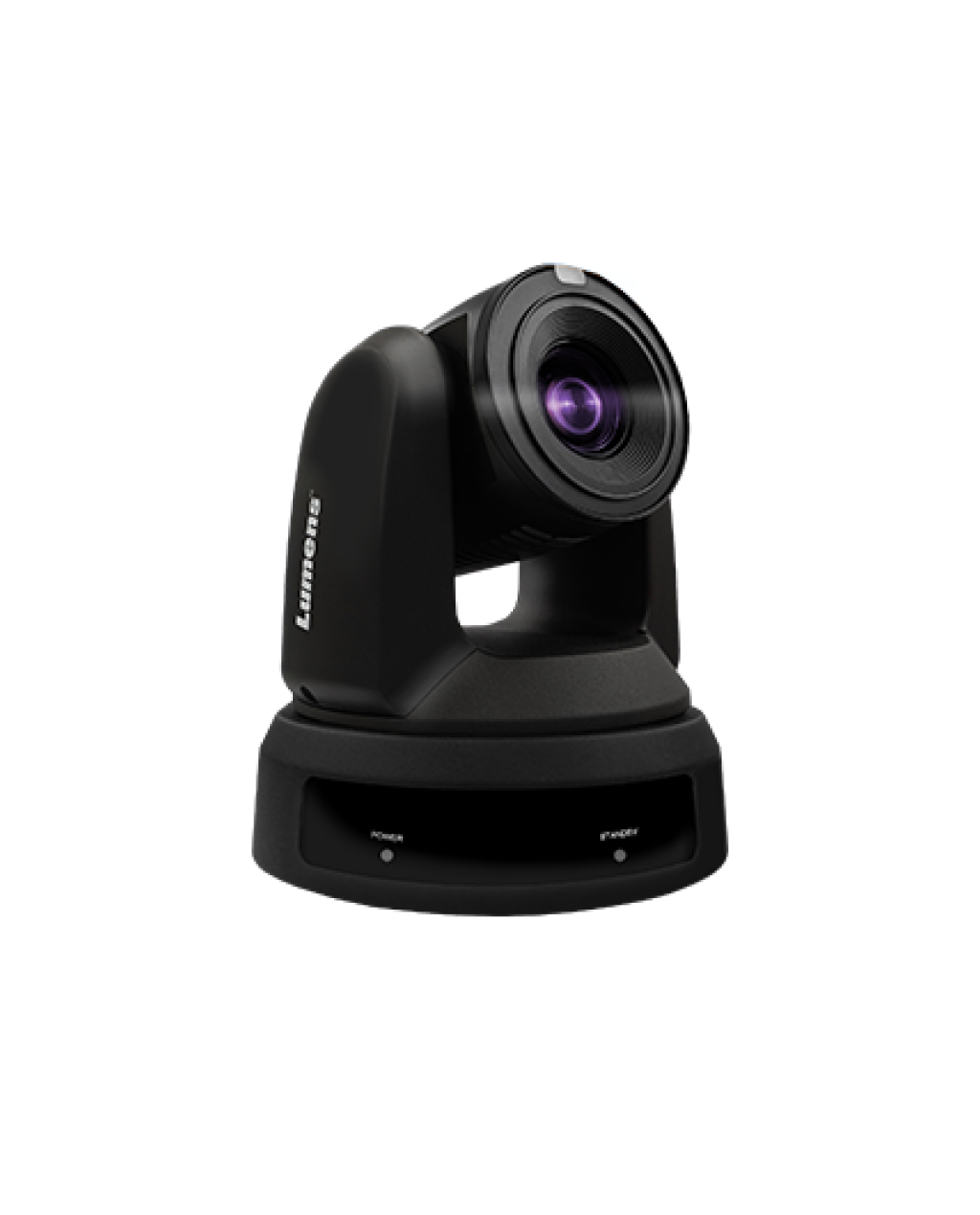

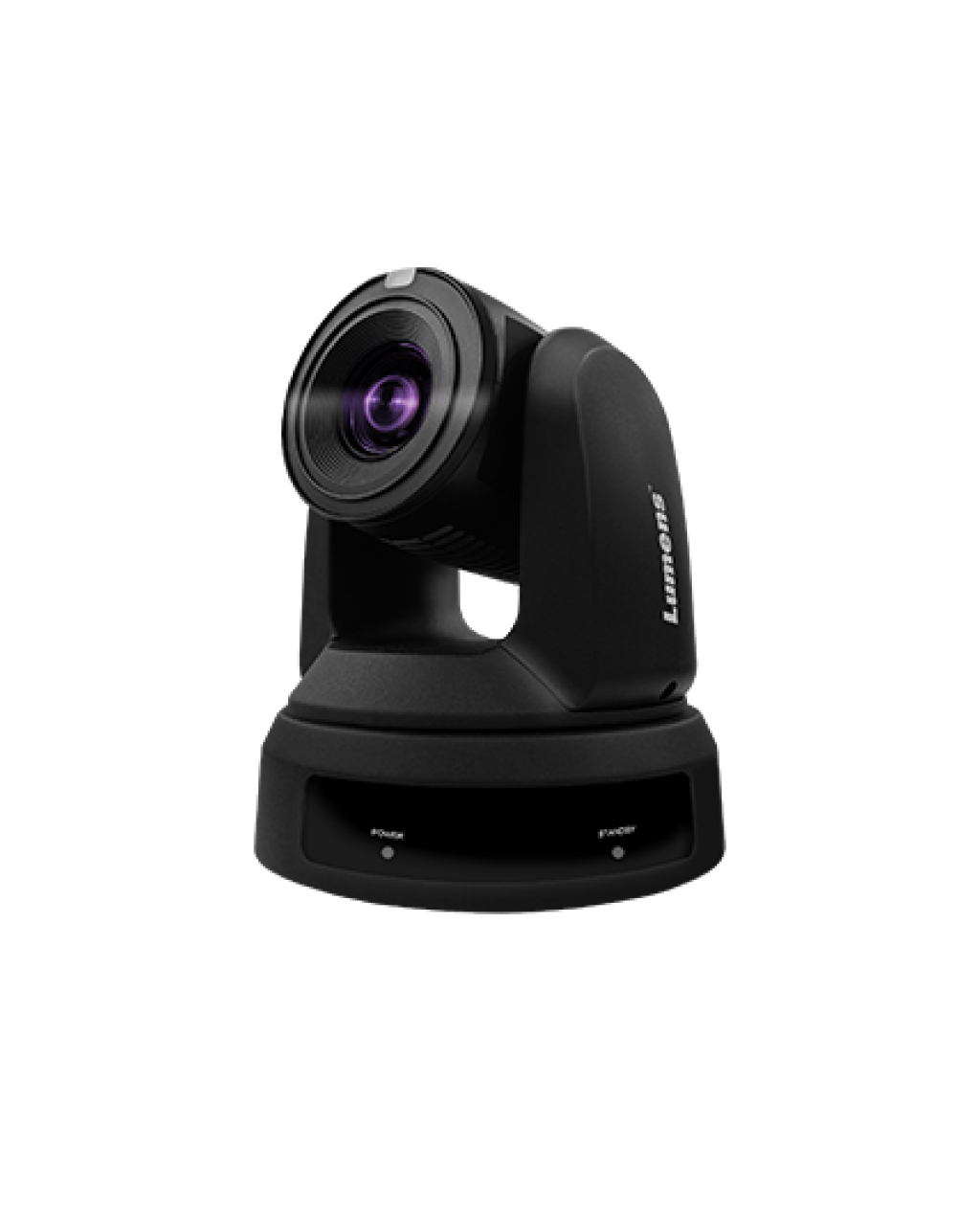

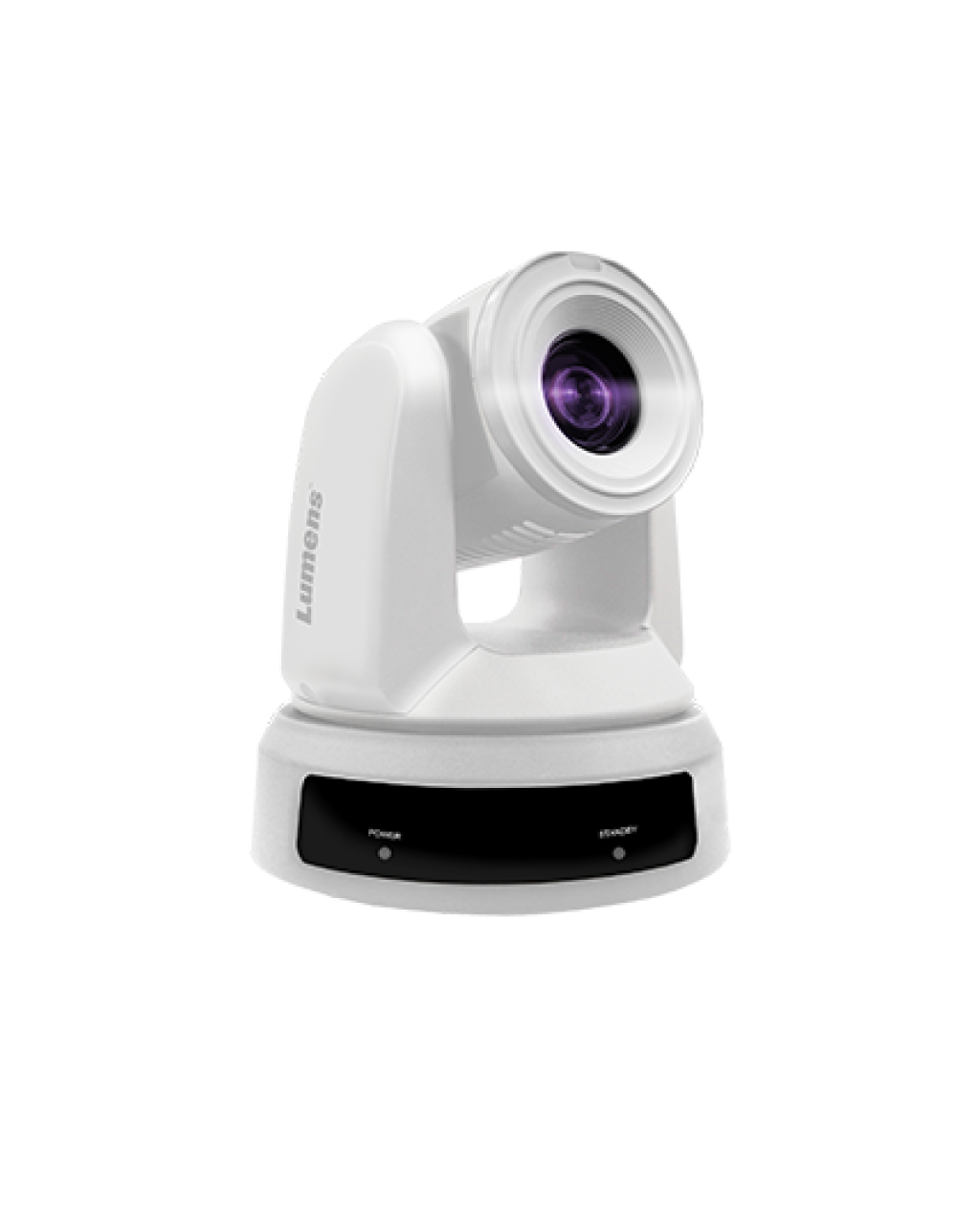

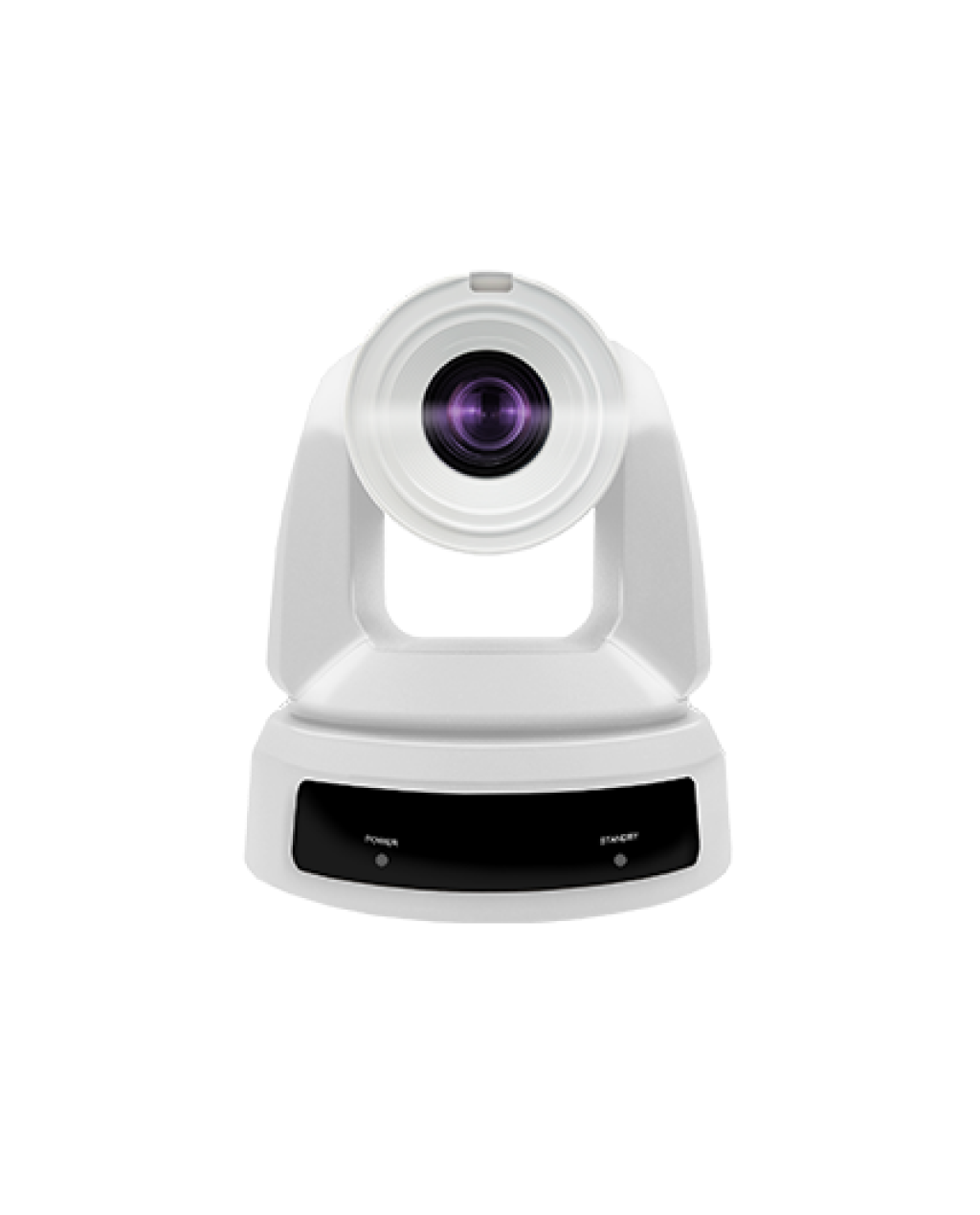

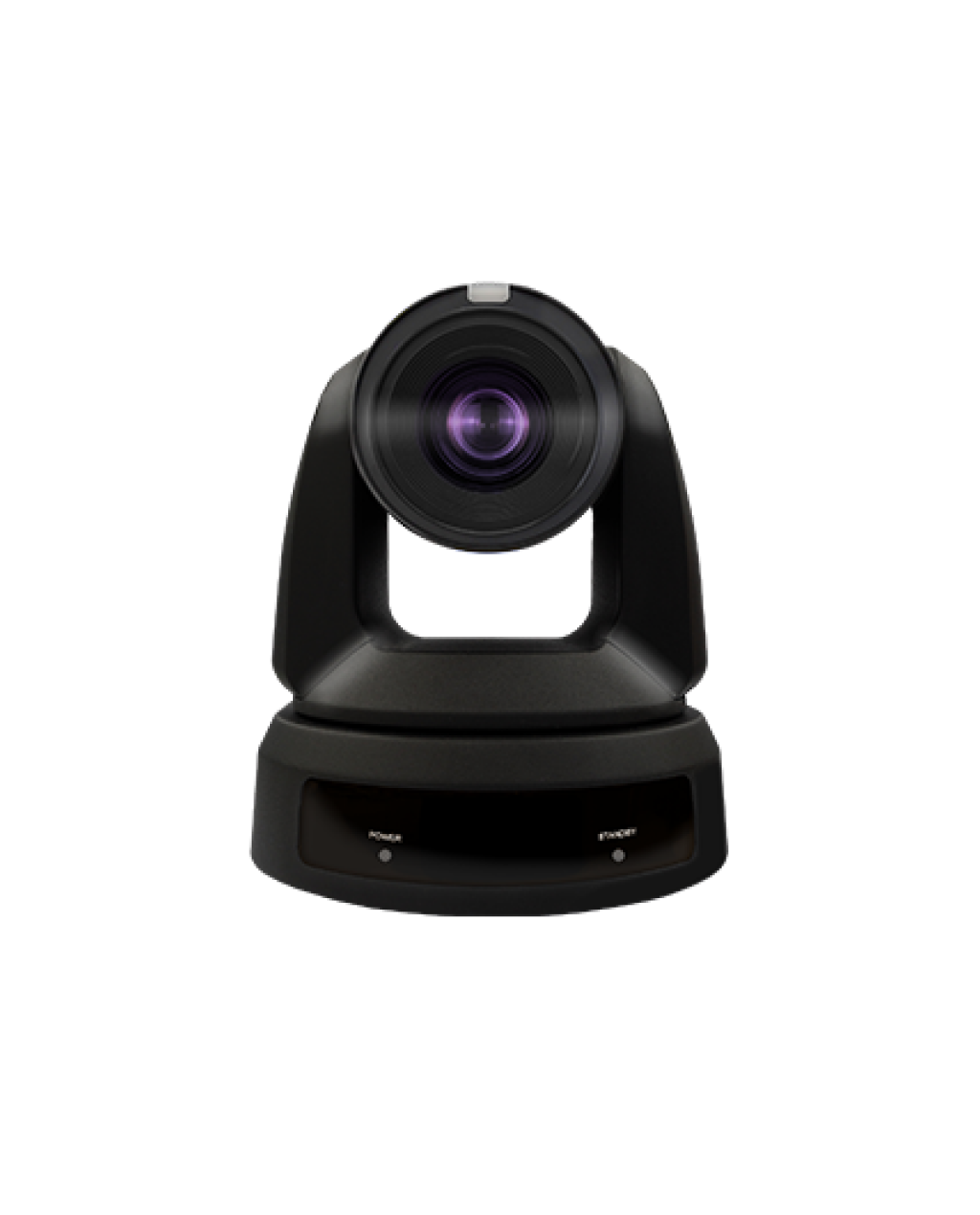

VC-A53 Full HD PTZ IP Camera


PTZ Video Camera

Flexible 1080p 60fps PTZ camera with 20x zoom, 3G-SDI, HDMI and IP streaming.

Features:

  • Professional Sony image sensor
  • Supports 1080p at 60fps and versatile 20x optical zoom
  • Delivers HD video output via Ethernet, HDMI, USB and 3G-SDI simultaneously
  • 5-year warranty*

Professional High Speed Robotics

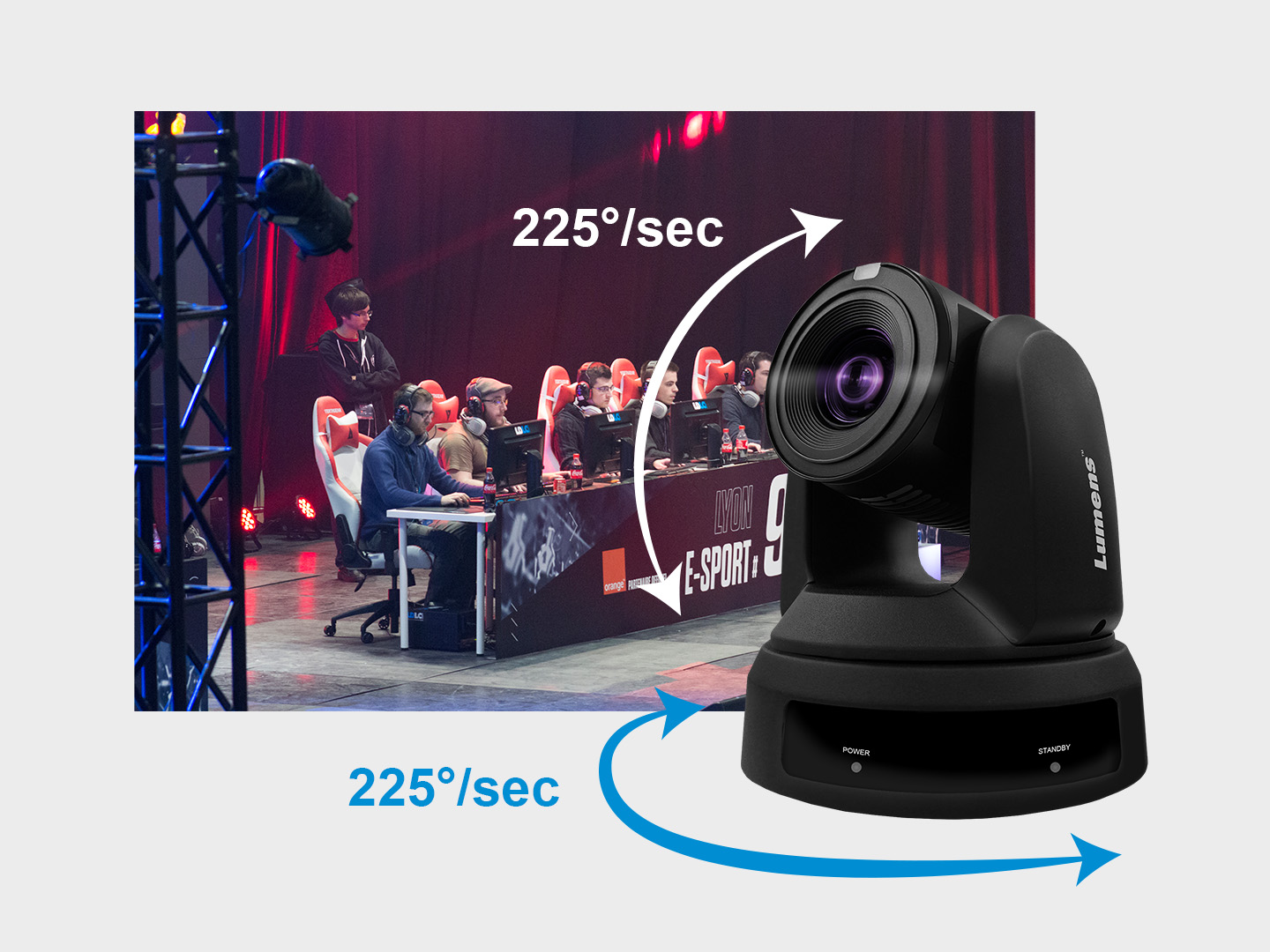

With high-precision motors, the vc-a53 can run at up-to 225° per second for Very fast movement between preset positions. The unit is also able to move at Low speed to deliver smooth and judder-free tracking shots.

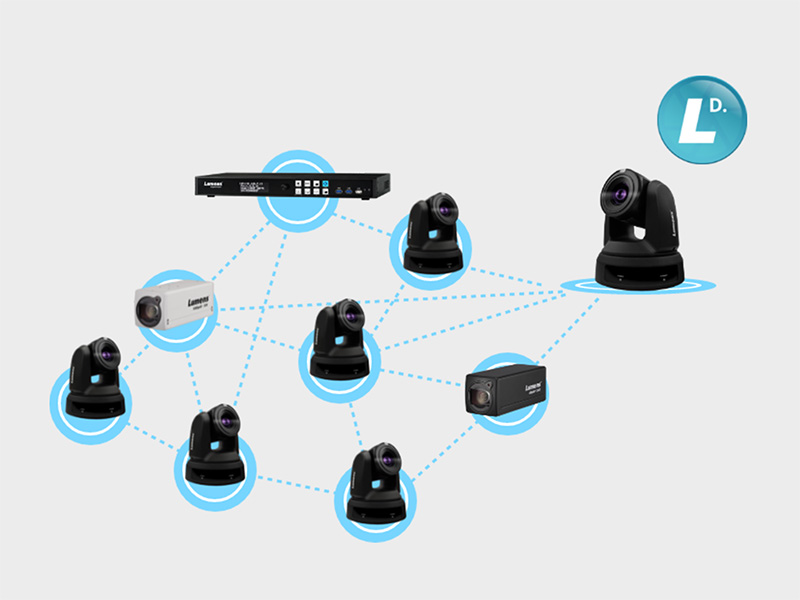

Networking Built-in

The vc-a53’s ethernet port is truly multi-purpose. It supports power over Ethernet, video streaming in a variety of secure and broadcast standard Formats, and ip control. Users can remotely control multiple units and Manage their cameras facility-wide using the complimentary lumens Deployment tool 2.0

VC-A53 Full HD PTZ IP Camera

VC-A53 Full HD PTZ IP Camera

Production Ready

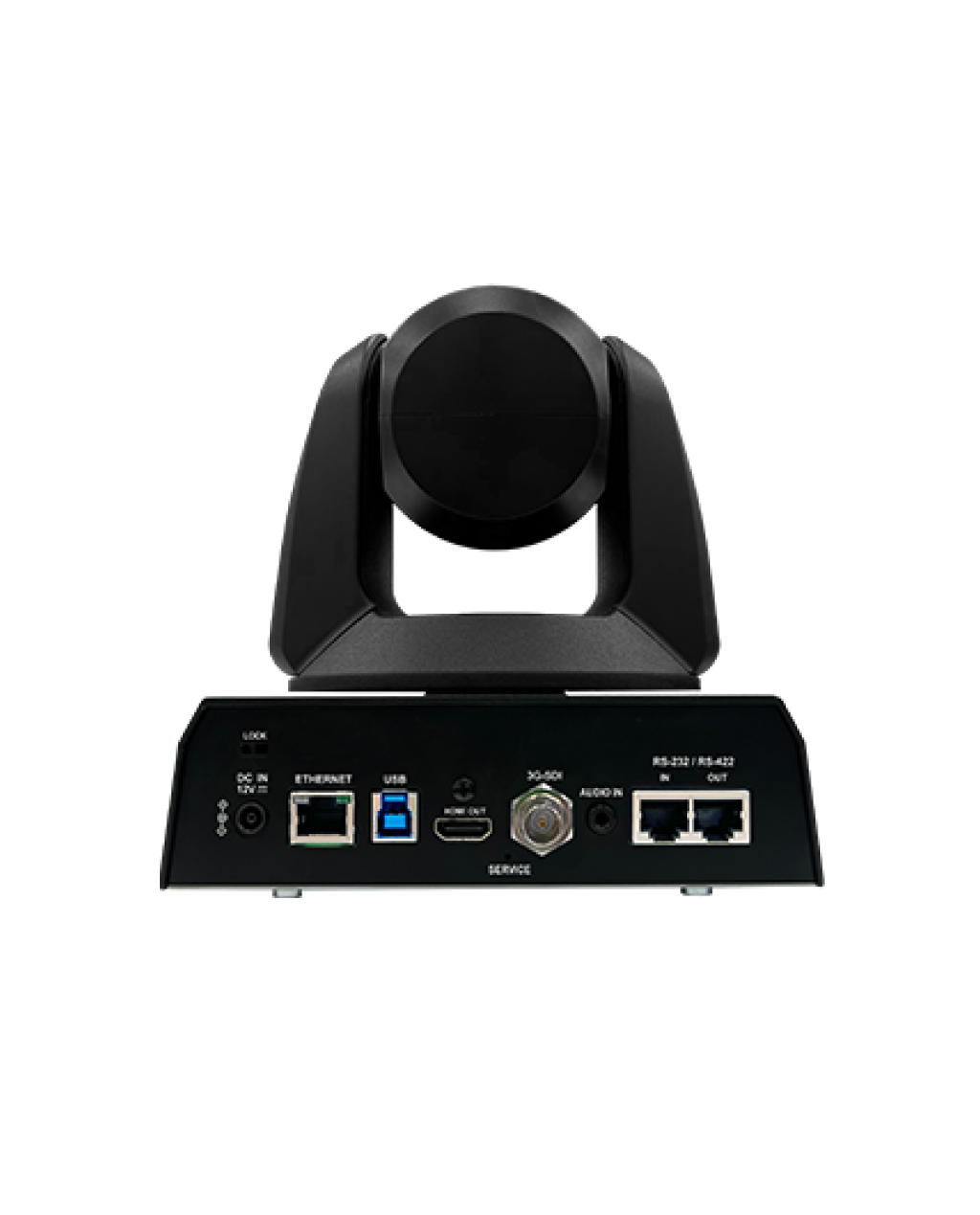

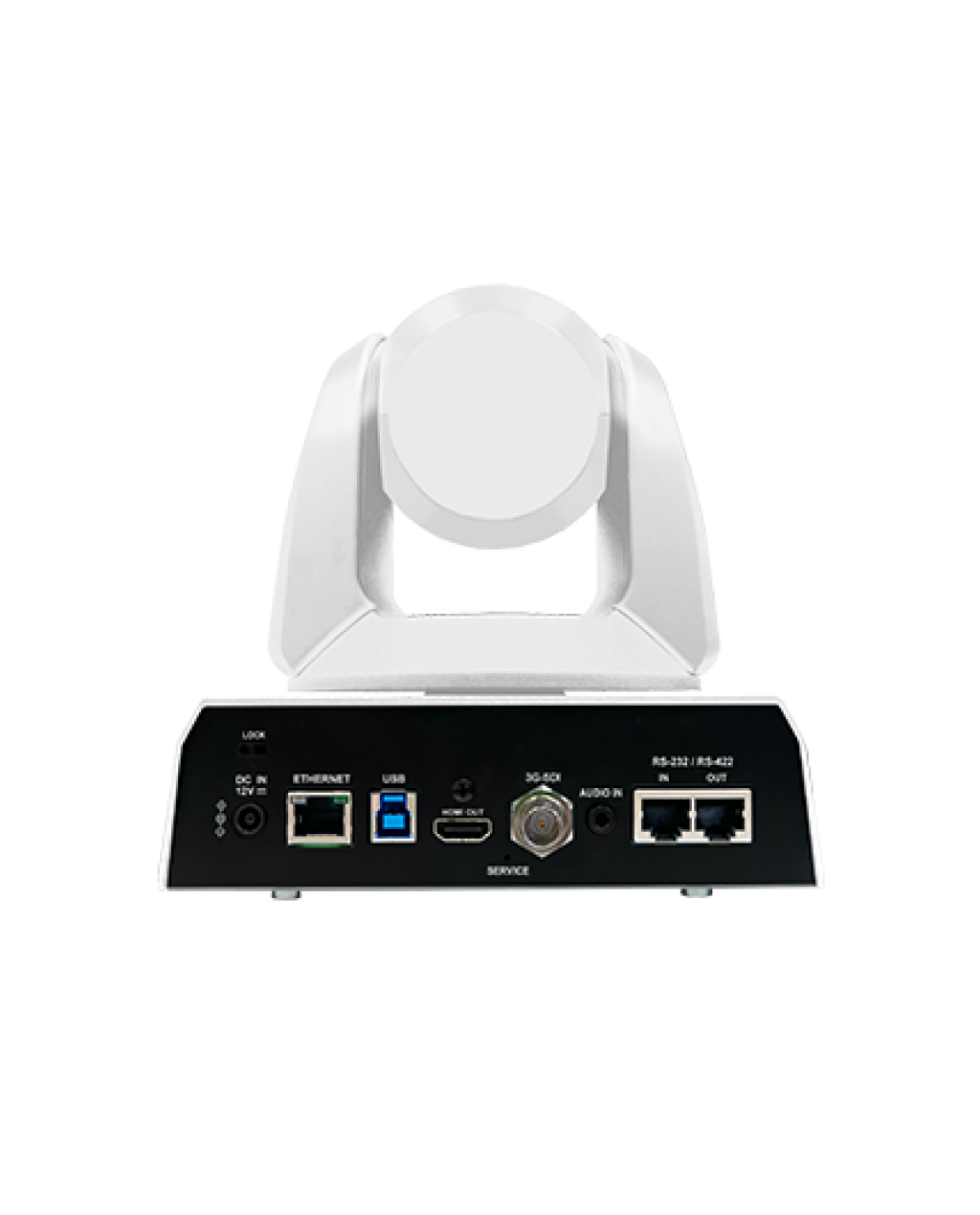

The vc-a53 is based around a professional sony sensor, making the Video output easy to integrate into mixed camera productions. The unit Can be controlled using rs-232, rs-422 , usb and ethernet control Interfaces enabling users to add the camera into existing workflows.

Intelligent Auto

Vc-a53 offers full manual settings to give producers full creative control. The camera also Incorporates intelligent automatic modes that deliver exceptional auto-focus, predictive Auto-exposure and auto-white balance. These features allow users to trust the camera to Run without user-input and to deliver consistently professional results.

VC-A53 Full HD PTZ IP Camera

Specification

Sensor
1/1.8″ 9.17MP CMOS
Video Format
2160p: 59.94 / 50 / 29.97 / 25
1080p: 59.94 / 50 / 29.97 / 25
1080i: 59.94 / 50
720p: 59.94 / 50 / 29.97 / 25
Video Output (HD) Interface
12G-SDI / HDMI 2.0 / Ethernet / USB 3.0
Optical Zoom
30x
Digital Zoom
12x
Viewing Angle
63° (H) 35.4° (V) 72.3° (D)
Aperture
F1.6 ~ F4.8
Focal Length
6.5mm ~ 202mm
Shutter Speed
1/1 ~ 1/10,000 sec
Minimum Object Distance
1.5m (Wide/Tele)
Video S/N Ratio
> 50dB
Minimum Illumination
0.05 lux (F1.6, 50IRE, 30fps)
Focus System
Auto / Manual / Smart AF
Gain Control
Auto / Manual
White Balance
Auto / Manual

Exposure Control
Auto / Manual
WDR
Yes
3D NR
Yes
Image Flip
Yes
AR/VR Systems
FreeD
Tally Light
Yes
Panning Angle
+170° ~ -170°
Panning Speed
300°/sec
Tilting Angle
+90° ~ -30°
Tilting Speed
300°/sec
Preset Positions
256
Multiple Video Stream
HEVC 4K 59.94fps
H.264 1080p 59.94fps
H.264 640×360 29.97fps
HDMI / 12G-SDI
2160p59.94
IP Stream
HEVC 4K 59.94fps
H.264 1080p 59.94fps
H.264 640×360 29.97fps

IP Compression
HEVC(H.265) / H.264
USB Output
H.264 4K30fps
MJPEG 1080p30
USB Compression
H.264 / MJPEG
IP Protocol
RTSP / RTMP / RTMPS / MPEG-TS / SRT
PoE
PoE++ (IEEE802.3bt)
Audio Input
Line In / MIC In, Phone Jack 3.5mm x1
Audio Output
Ethernet / 12G-SDI / HDMI 2.0
Audio Compression Format
G.711
Control Interface
RS-232 / RS-422 / Ethernet / USB 3.0/ Remote
Control Protocol
VISCA / VISCAIP / PELCO D / ONVIF / UVC
DC In
12V +/- 20%
Power Consumption
PoE: 27.5 W
DC In: 27 W
Weight
6.6lbs (3 kg)
Dimensions
9.2″ x 7.4″ x 7.4″
(232 x 188 x 189 mm)
