Ultimate Folding Screen

Portable Folding Screen – Folding

Highlights:

  • Case dimensions 30 cm (H) x 40 cm (D) x 132 cm (L).
  • Maximum image width up to wide 488 cm wide, depending on surface selection.
  • Borders are electronically welded using PVC material that provides straighter, cleaner edges.
  • Clear anodized 32 mm x 2 mm wall aluminum tubing frame.
  • Standard legs support screen in a vertical position. Heavy-duty legs recommended for frame heights greater than 229 cm. Extra heavy-duty legs for frame heights greater than 320 cm.

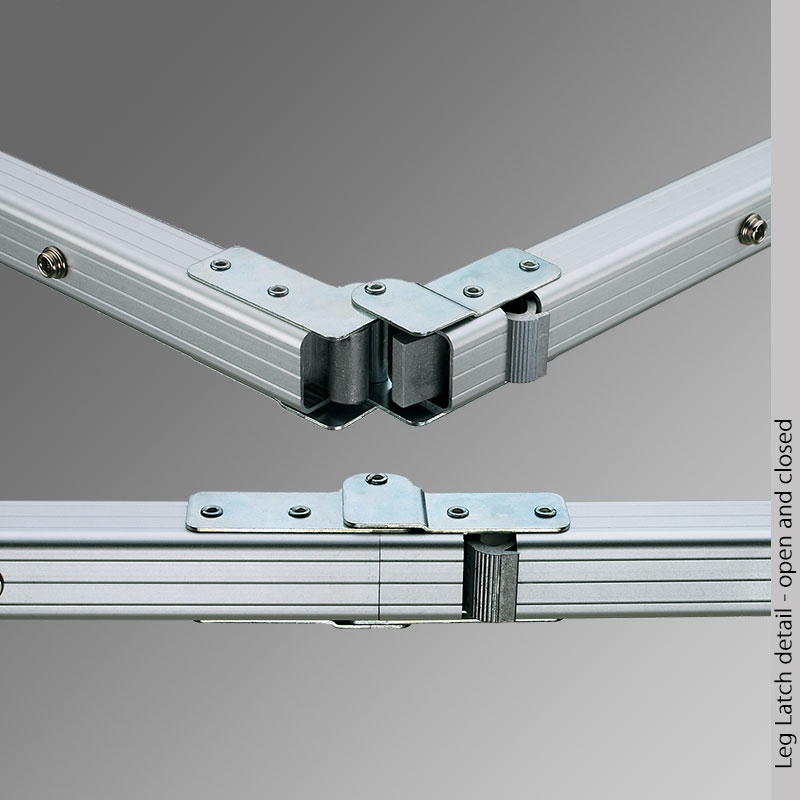

  • Legs adjust in 15 cm increments up or down with durable hinge locking mechanism.

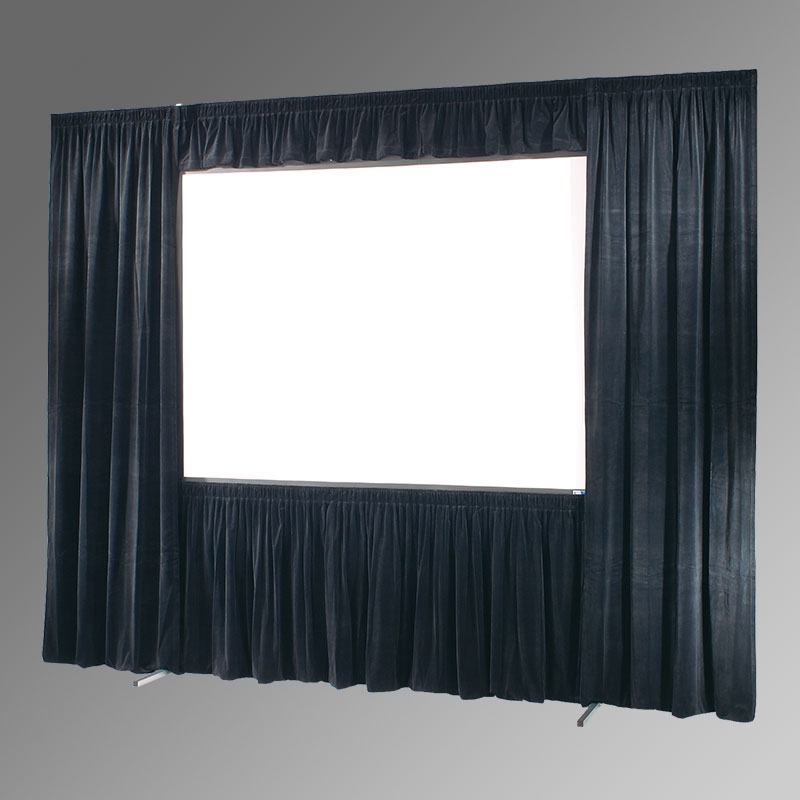

  • Optional dress kit available with cotton (standard) or optional Inherently Flame Retardant (IFR) velour.

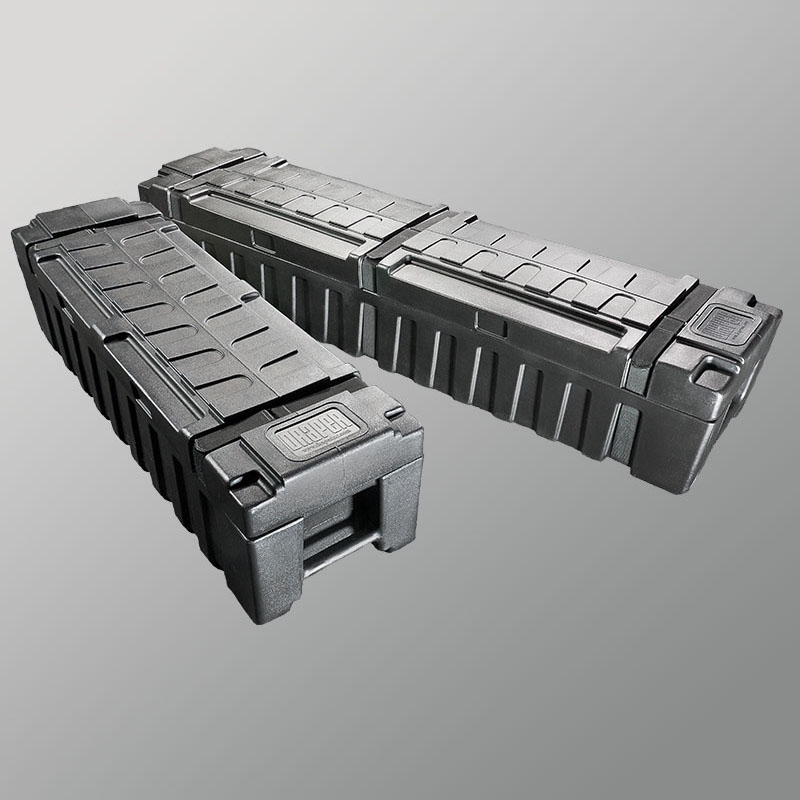

  • Includes heavy-duty, molded polyethylene wheeled carrying case.
  • Available with interchangeable front and rear projection surfaces

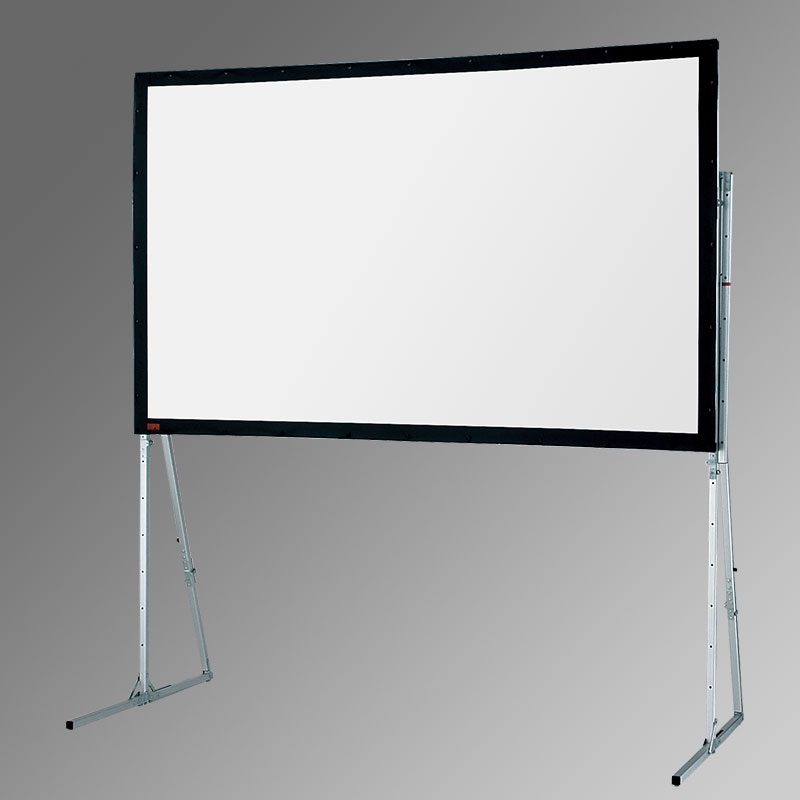

Ultimate Folding Screen

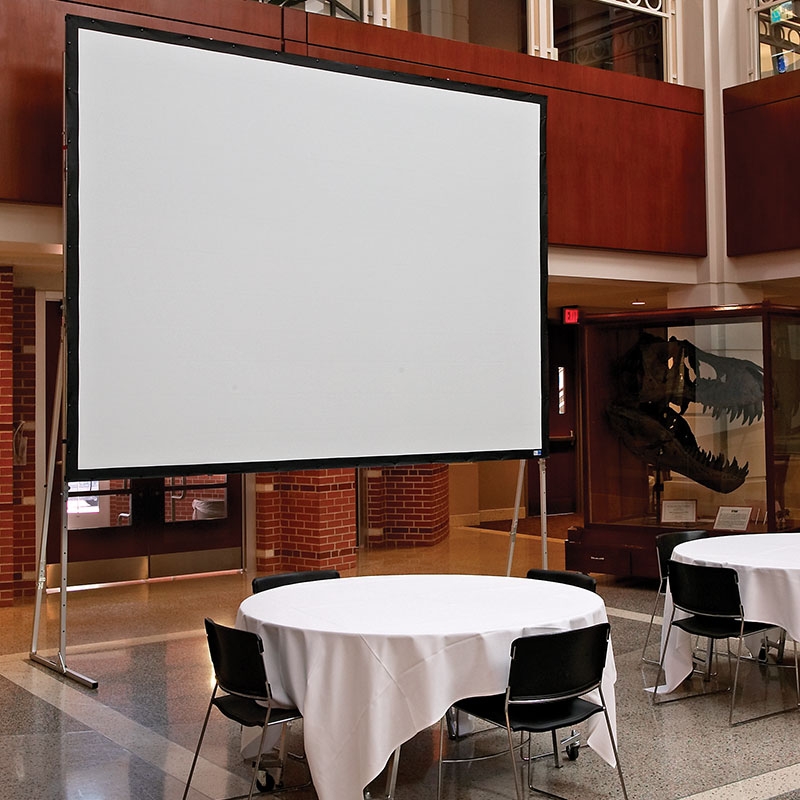

The portable ultimate folding screen’s design simplicity and rugged components withstand the Rigors of repeated set-ups and tear-downs in demanding applications. This projection screen Features a lock-and-load latch that bites down when the viewing surface is attached providing an Extremely rigid frame. The resilient latch retention spring is captured and constantly flexed to Prevent the screen from dislodging. A flat viewing surface offers a better image quality that Accommodates today’s varied viewing formats. Anodized aluminum tubing provides stability for Larger projection screen sizes that are ideal for churches and expo halls.

Surfaces

Dimensions Data



AV Format
Size Image Area Case Length Net Wt.
(lbs.)
50″ x 50″ 50″ x 50″ 4’8-1/2″ 26
60″ x 60″ 60″ x 60″ 5’6-1/2″ 30
70″ x 70″ 70″ x 70″ 6’4-1/2″ 35
84″ x 84″ 84″ x 84″ 7’6-1/2″ 40
72″ x 96″ 72″ x 96″ 8’7″ 44
96″ x 96″ 96″ x 96″ 8’7″ 45
7′ x 9′ 7′ x 9′ 9’7″ 47
9′ x 9′ 9′ x 9′ 9’7″ 49
8′ x 10′ 8′ x 10′ 10’7″ 54
10′ x 10′ 10′ x 10′ 10’7″ 58
9′ x 12′ 9′ x 12′ 12’7″ 61
12′ x 12′ 12′ x 12′ 12’7″ 66

NTSC Format (4.3)
Size Image Area Case Length Net Wt.
(lbs.)
6′ 42-1/2″ x 56-1/2″ 5’6-1/2″ 30
7′ 50″ x 66-1/2″ 6’4-1/2″ 35
100″ 60″ x 80″ 7’6-1/2″ 40
10′ 69″ x 92″ 8’7″ 44
11′ 78″ x 104″ 9’7″ 47
150″ 87″ x 116″ 10’7″ 54
15′ 105″ x 140″ 12’7″ 61
200″ 118″ x 158″ 14’1″ 68

HDTV Format (16.9)
Size Image Area Case Length Net Wt.
(lbs.)
92″ 45″ x 80″ 7’6-1/2″ 40
106″ 52″ x 92″ 8’7″ 44
119″ 58″ x 104″ 9’7″ 46
133″ 65″ x 116″ 10’7″ 54
161″ 79″ x 140″ 12’7″ 61
184″ 90″ x 160″ 14’3″ 68

WideScreen Format (1.85:1)
Size Image Area Case Length Net Wt.
(lbs.)
99″ 47″ x 87″ 8’1″ 40
108″ 50″ x 92″ 8’7″ 44
120″ 56″ x 104″ 9’7″ 49
132″ 63″ x 116″ 10’7″ 54
162″ 76″ x 140″ 12’7″ 66
182″ 86-1/2″ x 160″ 14’3″ 68
