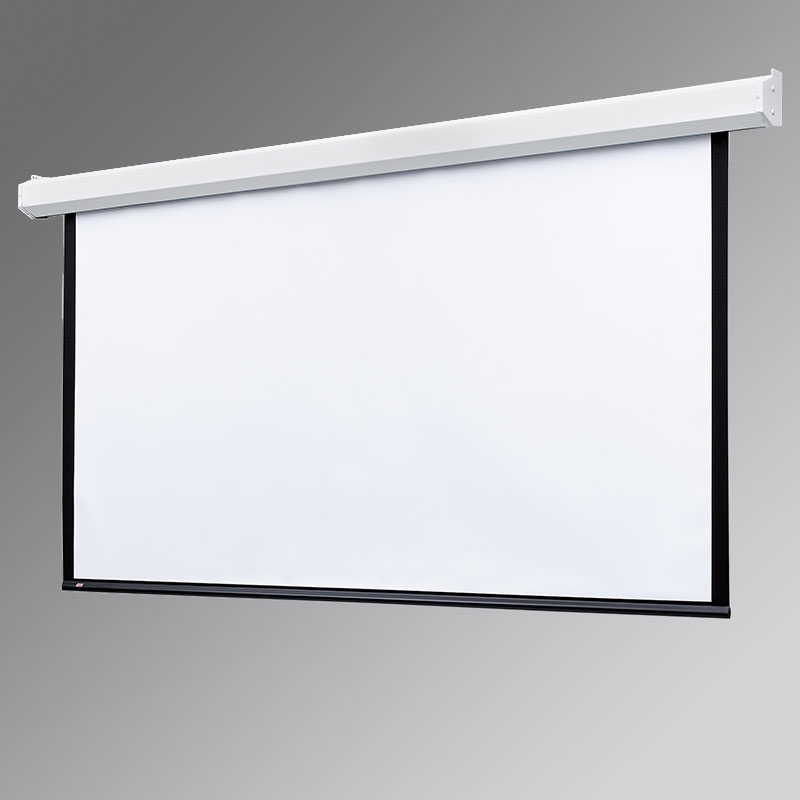

Electric Projection Screen – Wall/Ceiling Mounted Non-Tensioned

Highlights:

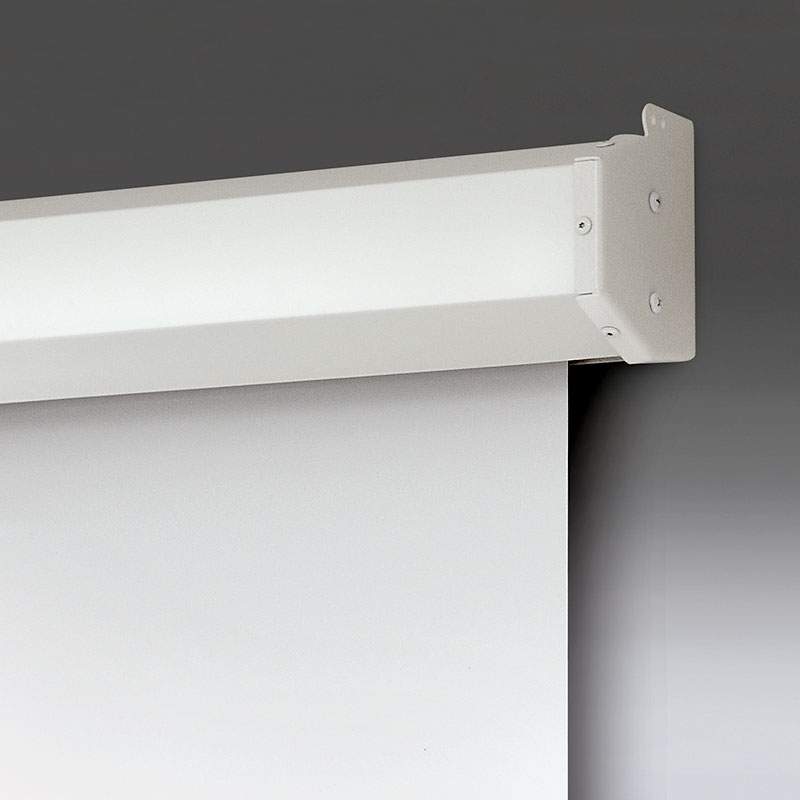

  • Case dimensions 15 cm x 13 cm. Larger screen size case dimensions 17 cm x 17 cm. Housed in pentagonal steel case with a scratch-resistant white polyester finish and matching endcaps.
  • Larger sizes require a different case design. Case dimensions are 17 cm x 17 cm. Housed in fabricated extruded aluminum with a curved front and L-shaped back/top cover with white finish, black optional.
  • Maximum image width up to 488 cm wide, depending on surface selection.
  • AV Format, HDTV, and 16:10 formats have image area framed with black on all four sides. Black side borders are available upon request for AV.
  • Black drop standard, depending on screen size. Extra drop above image area available upon request.
  • Optional floating wall brackets grip the screen securely anywhere along the back of the case, and are barely visible.

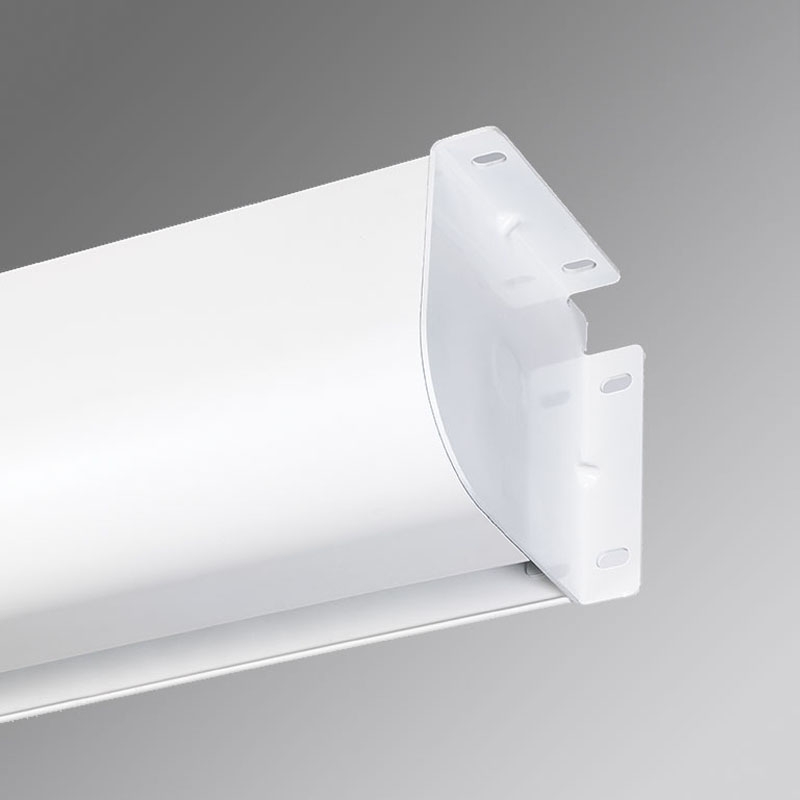

  • Endcaps serve as universal mounting brackets.

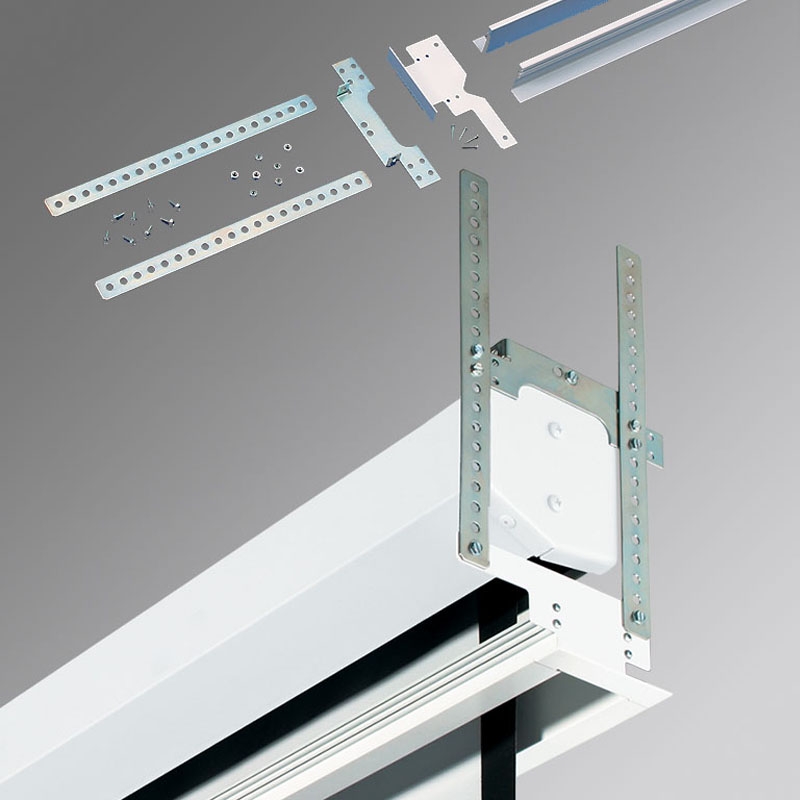

  • Available with ceiling trim kit for ceiling-recessed installation. An additional 30 cm top drop is recommended for ceiling-recessed installation.
  • Heavyduty motor 220V , 3-position switch (standard). Other control options are available.
  • Optional Plug & Play with built-in low-voltage controller (LP) or with built-in quiet, low-voltage controller (QLP).
  • Custom sizes available.

Targa

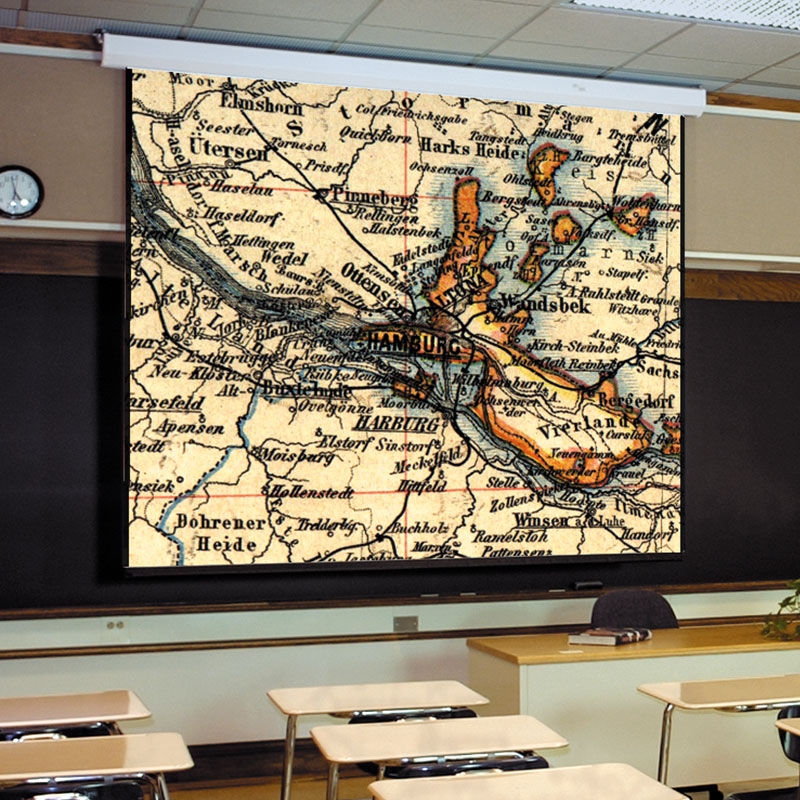

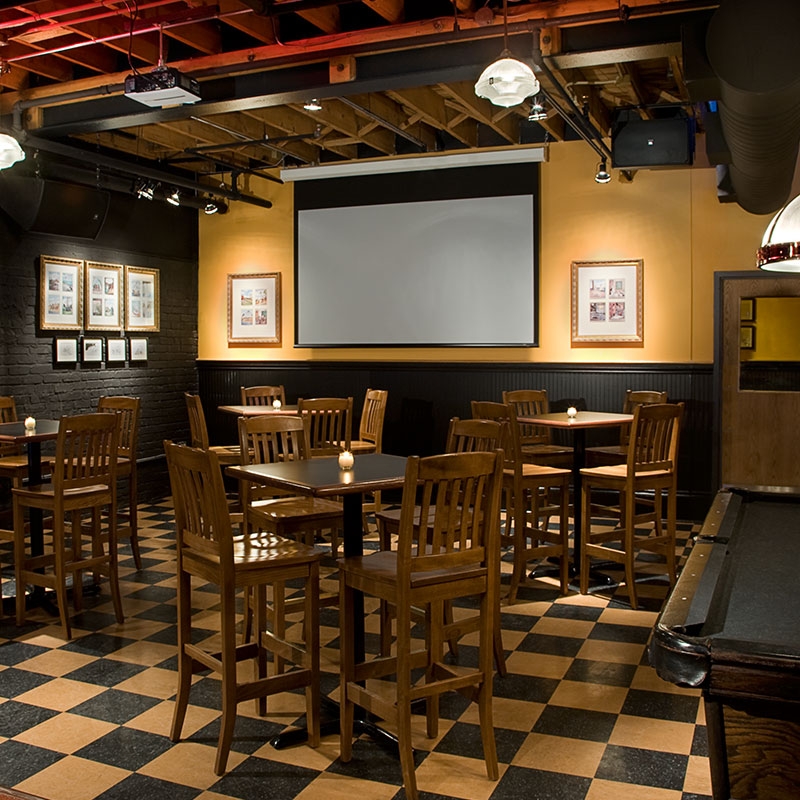

The wall- or ceiling-mounted, targa electric projection screen is a popular choice for auditoriums, Conference and lecture halls, hospitals, hotels, boardrooms, and churches. Housed in a Pentagonal steel case with matching endcaps that form universal mounting brackets makes Installation of the targa easy, whether wall- or ceiling-mounted. This free-hanging, fiberglass- Backed projection screen maintains flatness thanks to the weight of the screen and bottom dowel. The motor is mounted inside the roller providing a clean, low-profile appearance.

Surface

Dimensions Data



AV Format
Size Image Area Case Length Net Wt.
(lbs.)
50″ x 50″ 50″ x 50″ 4’8-1/2″ 26
60″ x 60″ 60″ x 60″ 5’6-1/2″ 30
70″ x 70″ 70″ x 70″ 6’4-1/2″ 35
84″ x 84″ 84″ x 84″ 7’6-1/2″ 40
72″ x 96″ 72″ x 96″ 8’7″ 44
96″ x 96″ 96″ x 96″ 8’7″ 45
7′ x 9′ 7′ x 9′ 9’7″ 47
9′ x 9′ 9′ x 9′ 9’7″ 49
8′ x 10′ 8′ x 10′ 10’7″ 54
10′ x 10′ 10′ x 10′ 10’7″ 58
9′ x 12′ 9′ x 12′ 12’7″ 61
12′ x 12′ 12′ x 12′ 12’7″ 66

NTSC Format (4.3)
Size Image Area Case Length Net Wt.
(lbs.)
6′ 42-1/2″ x 56-1/2″ 5’6-1/2″ 30
7′ 50″ x 66-1/2″ 6’4-1/2″ 35
100″ 60″ x 80″ 7’6-1/2″ 40
10′ 69″ x 92″ 8’7″ 44
11′ 78″ x 104″ 9’7″ 47
150″ 87″ x 116″ 10’7″ 54
15′ 105″ x 140″ 12’7″ 61
200″ 118″ x 158″ 14’1″ 68

HDTV Format (16.9)
Size Image Area Case Length Net Wt.
(lbs.)
92″ 45″ x 80″ 7’6-1/2″ 40
106″ 52″ x 92″ 8’7″ 44
119″ 58″ x 104″ 9’7″ 46
133″ 65″ x 116″ 10’7″ 54
161″ 79″ x 140″ 12’7″ 61
184″ 90″ x 160″ 14’3″ 68

WideScreen Format (1.85:1)
Size Image Area Case Length Net Wt.
(lbs.)
99″ 47″ x 87″ 8’1″ 40
108″ 50″ x 92″ 8’7″ 44
120″ 56″ x 104″ 9’7″ 49
132″ 63″ x 116″ 10’7″ 54
162″ 76″ x 140″ 12’7″ 66
182″ 86-1/2″ x 160″ 14’3″ 68
