StageScreen

Fixed Screens

Highlights:

  • Maximum image width up to 37 meter wide.

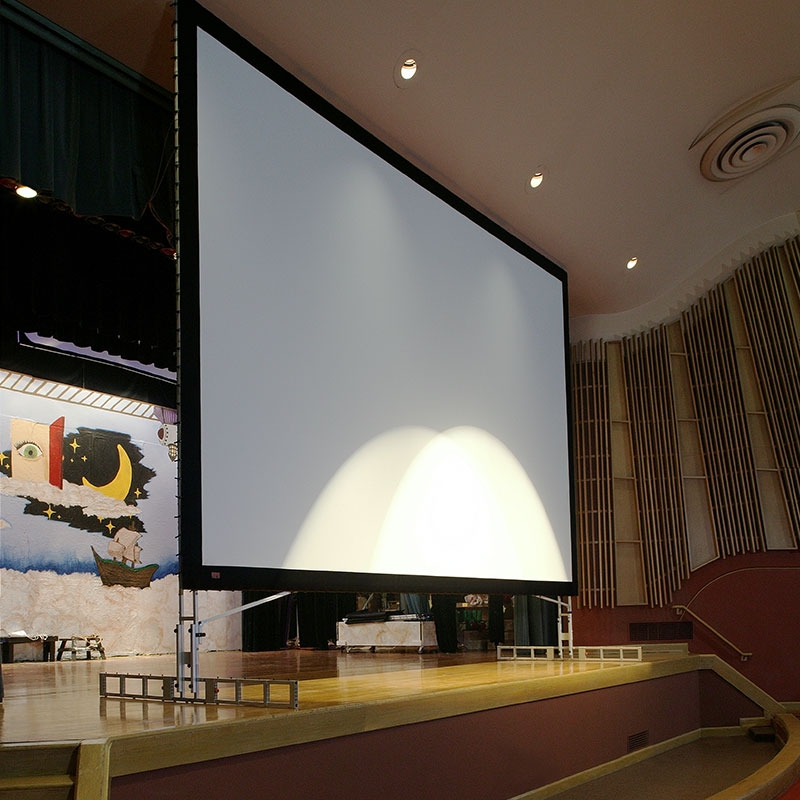

  • The versatile StageScreen may be wall-mounted, suspended, or free-standing..
  • Frame available in silver anodized or black finish.
  • Color-coded frame and instructions ensure fast and easy assembly with no hinges, snaps, or handy cranks required.

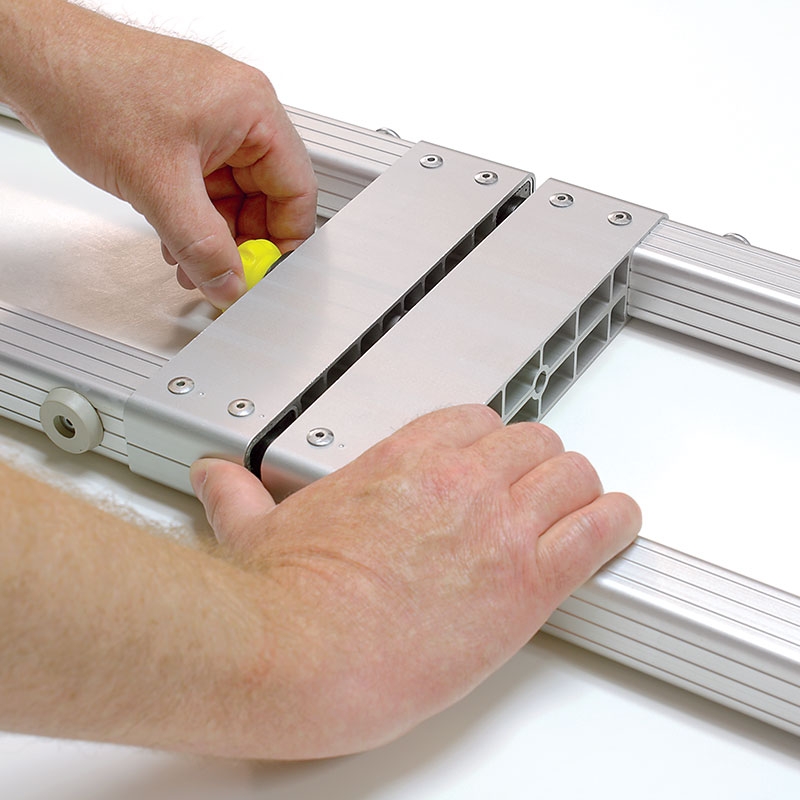

  • Frame sections are connected with permanently attached threaded links and guide pins.

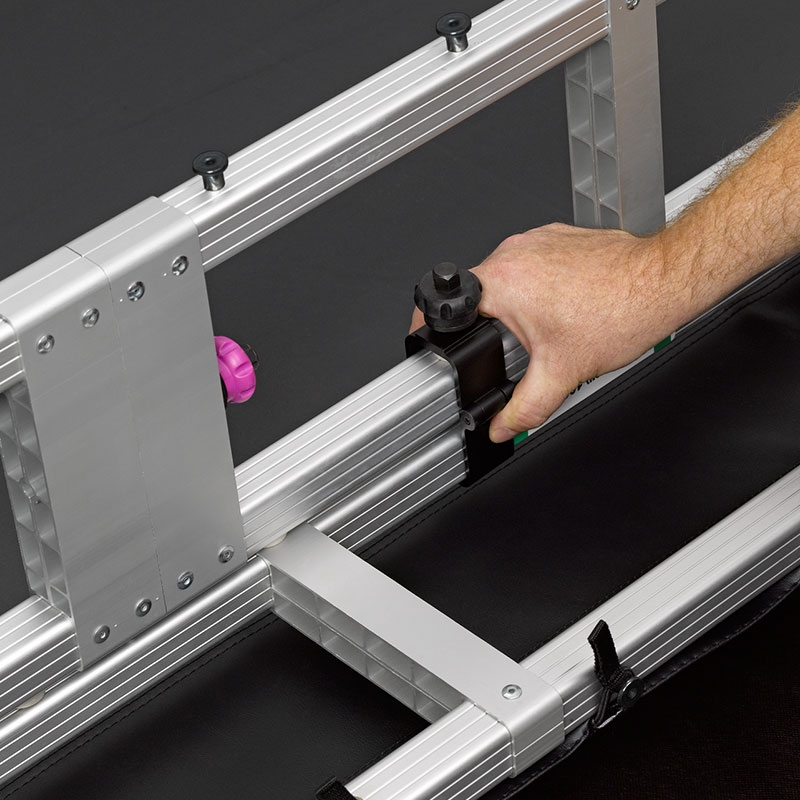

  • Viewing surface attaches easily to perimeter frame with DuraLoop™ bungee cord loops. DuraLoop™ lasts longer than traditional snaps and provide self-centering tension for better image quality.
  • The image area of each screen is exact and true to format.

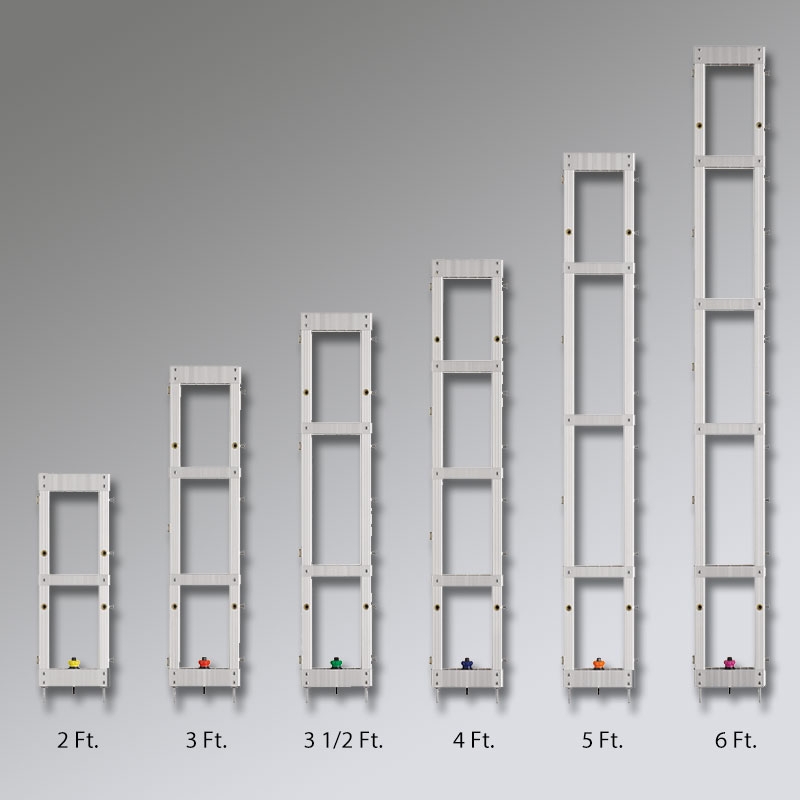

  • Utilizes an 20 cm truss that is significantly stronger than traditional truss folding screens. During in-house testing, StageScreen® trusses tested 60% stronger than folding truss screens.
  • Includes wheeled heavy-duty polyethylene carrying case.
  • Custom sizes available.

StageScreen

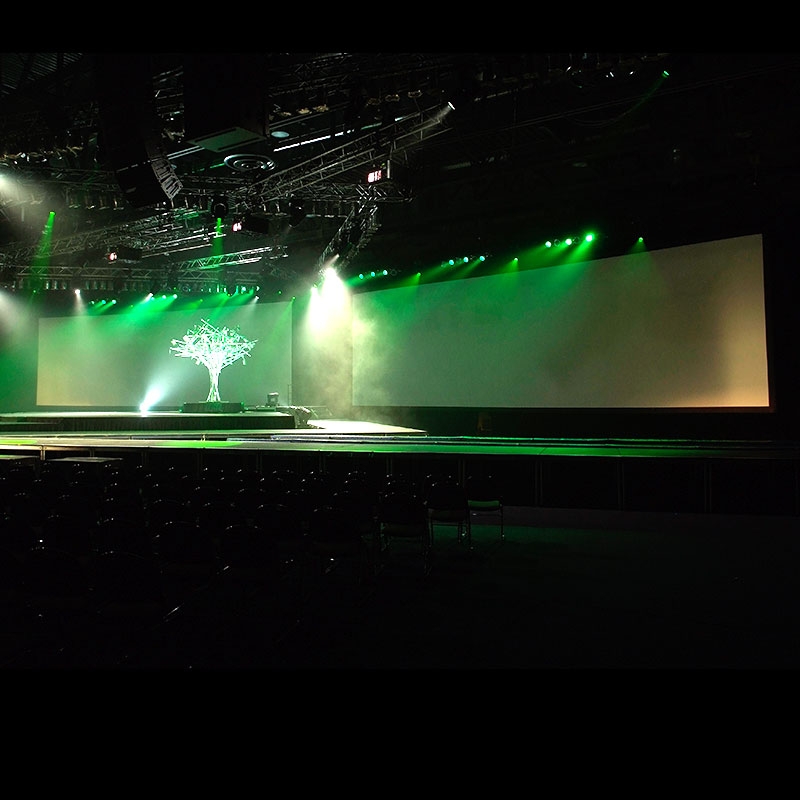

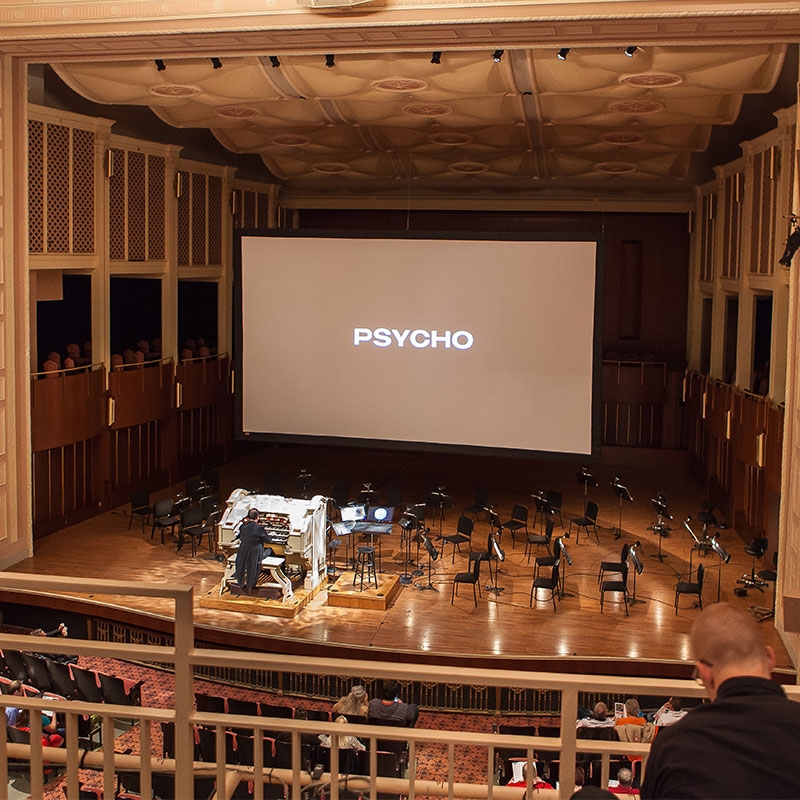

The free-standing or flown stagescreen features interchangeable frame pieces. All available sizes Utilize combinations of the same frame sections; these interchangeable parts make it easy to reuse Frame pieces to create different size viewing formats. The viewing surface attaches to the Perimeter frame easily with draper’s unique duraloop™ bungee cords. This provides a self- Centering, perfectly flat viewing surface for better image quality making it ideal for stage, theaters, Or large venues. With sizing flexibility, stagescreen enables a greater return on initial investment For the av rental markets, while offering an optimal solution for streamlining inventory.

Surfaces

Dimensions Data



AV Format
Size Image Area Case Length Net Wt.
(lbs.)
50″ x 50″ 50″ x 50″ 4’8-1/2″ 26
60″ x 60″ 60″ x 60″ 5’6-1/2″ 30
70″ x 70″ 70″ x 70″ 6’4-1/2″ 35
84″ x 84″ 84″ x 84″ 7’6-1/2″ 40
72″ x 96″ 72″ x 96″ 8’7″ 44
96″ x 96″ 96″ x 96″ 8’7″ 45
7′ x 9′ 7′ x 9′ 9’7″ 47
9′ x 9′ 9′ x 9′ 9’7″ 49
8′ x 10′ 8′ x 10′ 10’7″ 54
10′ x 10′ 10′ x 10′ 10’7″ 58
9′ x 12′ 9′ x 12′ 12’7″ 61
12′ x 12′ 12′ x 12′ 12’7″ 66

NTSC Format (4.3)
Size Image Area Case Length Net Wt.
(lbs.)
6′ 42-1/2″ x 56-1/2″ 5’6-1/2″ 30
7′ 50″ x 66-1/2″ 6’4-1/2″ 35
100″ 60″ x 80″ 7’6-1/2″ 40
10′ 69″ x 92″ 8’7″ 44
11′ 78″ x 104″ 9’7″ 47
150″ 87″ x 116″ 10’7″ 54
15′ 105″ x 140″ 12’7″ 61
200″ 118″ x 158″ 14’1″ 68

HDTV Format (16.9)
Size Image Area Case Length Net Wt.
(lbs.)
92″ 45″ x 80″ 7’6-1/2″ 40
106″ 52″ x 92″ 8’7″ 44
119″ 58″ x 104″ 9’7″ 46
133″ 65″ x 116″ 10’7″ 54
161″ 79″ x 140″ 12’7″ 61
184″ 90″ x 160″ 14’3″ 68

WideScreen Format (1.85:1)
Size Image Area Case Length Net Wt.
(lbs.)
99″ 47″ x 87″ 8’1″ 40
108″ 50″ x 92″ 8’7″ 44
120″ 56″ x 104″ 9’7″ 49
132″ 63″ x 116″ 10’7″ 54
162″ 76″ x 140″ 12’7″ 66
182″ 86-1/2″ x 160″ 14’3″ 68
