| Max Power Output |
200W, 4Ω load (class-D) |
50W, 4Ω Load (class-D) |
55W, 3Ω load (class-D) |
| Speaker System |
8″ full range |
6 ½” full range |
5 ½” full range |
| Frequency Response |
50Hz-20KHz±3dB |
| T.H.D. |
< 0.5% |
| Audio Input |
MIC/LINE in x2 (Ø6.3mm/XLR COMBO), LINE in (Ø3.5mm), BLUETOOTH in |
MIC in (Ø6.3mm), AUX in (Ø6.3mm) |
MIC in (Ø6.3mm), AUX in (Ø3.5mm), USB (optional) |
| Audio Output |
LINE out (Ø6.3mm) |
AUX out (Ø6.3mm) |
AUX out (Ø3.5mm) |
| External Speaker |
4~8Ω (Ø6.3mm), with volume control |
4~8Ω (Ø6.3mm) |
N/A |
| Power Supply |
100-240V AC, 30-32V DC / 4A |
100-240V AC, 15V DC / 3.75A |
100-240V AC, 19V DC / 3.42A |
| Battery |
Lead-Acid (12V / 5Ah) x 2 |
Lead-acid (12V / 2.9Ah) x1 |
Lithium (16.8V / 2.6Ah)x1 |
| Operating Time |
5-6 hours in music, >10 hours in speech |
5-6 hours in music, 10-12 hours in speech |
5-6 hours in music, 10-12 hours in speech |
| Dimensions (mm) |
290 x 250 x 424 |
220 x 215 x 313 |
162 x 292 x 184 |
| Weight (kg) |
10.8 |
4.8 |
2.2 |
| Digital Recorder Player |
MP3/USB/SD with LCD track information display. |
| Special Features |

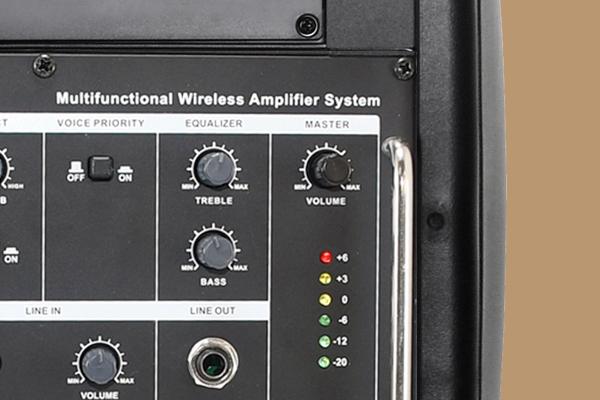

- 2-Band Equalizer: Bass/treble and master volume control.
- Digital Limiter: Prevents distortion.
- Voice Priority Function: Automatically mutes music during announcements.
- Reverb Control: Enhances microphone audio quality.
- Auxiliary Outputs: For external speakers and audio recording.
- Digital Input: Connects to PC/laptop for audio output
|
- Frequency Response: Wide frequency range to handle both speech and music.
- Voice Priority Function: Automatically mutes music during speech.
- Built-in Receiving Antenna: Ensures clear reception.
- Auxiliary Inputs: Multimedia input with dedicated volume control.
- Compander Circuit: Improves signal-to-noise ratio and reduces background noise.
|
- Frequency Response: Wide frequency range to handle both speech and music.
- Special Features: Can generates siren/alarm tones to attract attention or emergency evacuation.
- Anti-interference Pilotone Circuitry: For superior reception quality.
|
| Application |
Excellent for indoor & outdoor activity for speeches, announcement, house of worship, exhibition, community, lecture halls, outdoor assemblies and etc |
Crystal clear sound for small indoor venue activity The truly compact and lightweight design for portability. Ideal for meeting rooms, events, house of worship, schools, retail outlets, gyms and other leisure activity. |
Clear and powerful audio quality with high speech intelligibility output for outdoor use compared to megaphone. Excellent for school activities, factory, association, office, and any crowd control application. |
| Crowd Coverage |
200 pax |
100 pax |
50 pax |

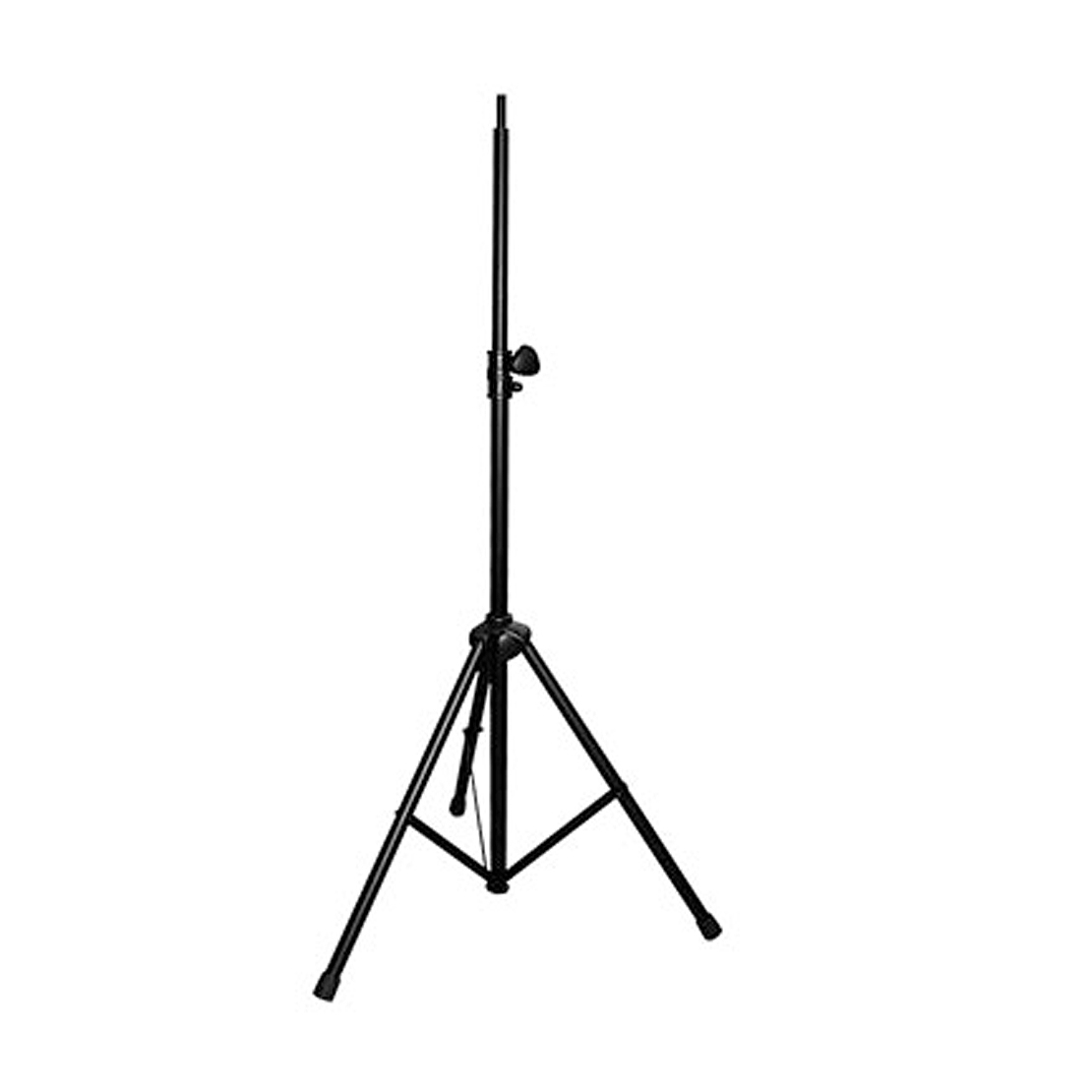

| Mount Option |
Tripod Stand |
Tripod Stand |
Tripod Stand / Handheld / Shoulder-Hung |
