ShadowBox Clarion

Fixed Screens

Highlights:

  • Maximum image width up to 488 cm wide.
  • ShadowBox Clarion is available for custom curved applications. Please contact Draper for more information.
  • Fixed screen designed to be wall-mounted. Mounting fasteners not included.
  • Aluminum frame finished in black powder coat or optional Vel-Tex finish available.
  • Vel-Tex is a black, velvety textile covering that cuts reflection and conceals all trace of joints in the frame.

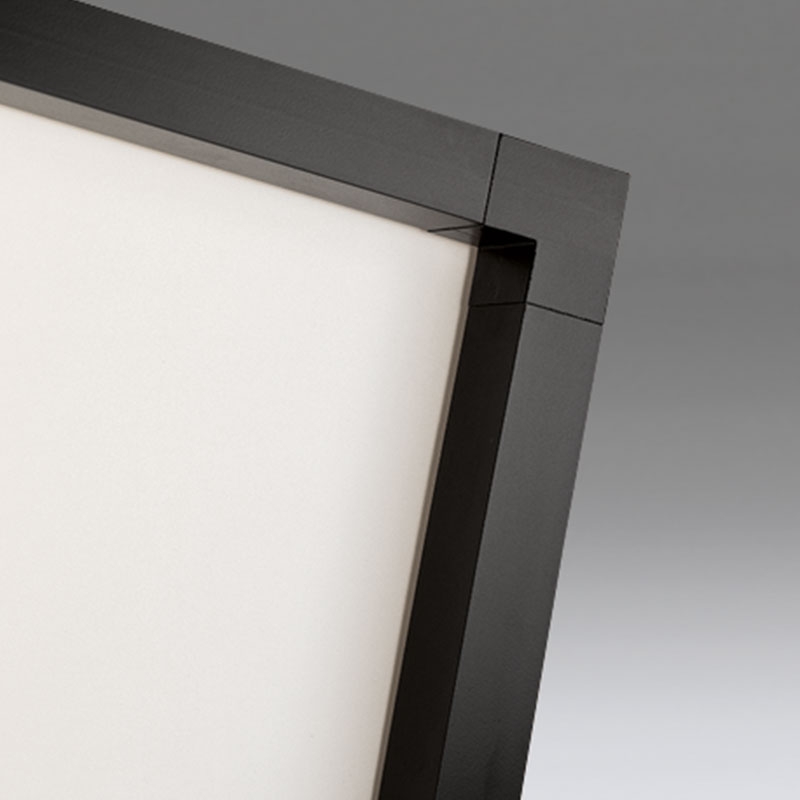

  • Includes a 38 mm black border that reduces border reflection and provides a trim, finished appearance.
  • Viewing surface snaps to the back of a 38 mm extruded aluminum frame.
  • Frame equipped with mounting flange that mates with wall brackets.
  • Custom sizes available.

ShadowBox Clarion

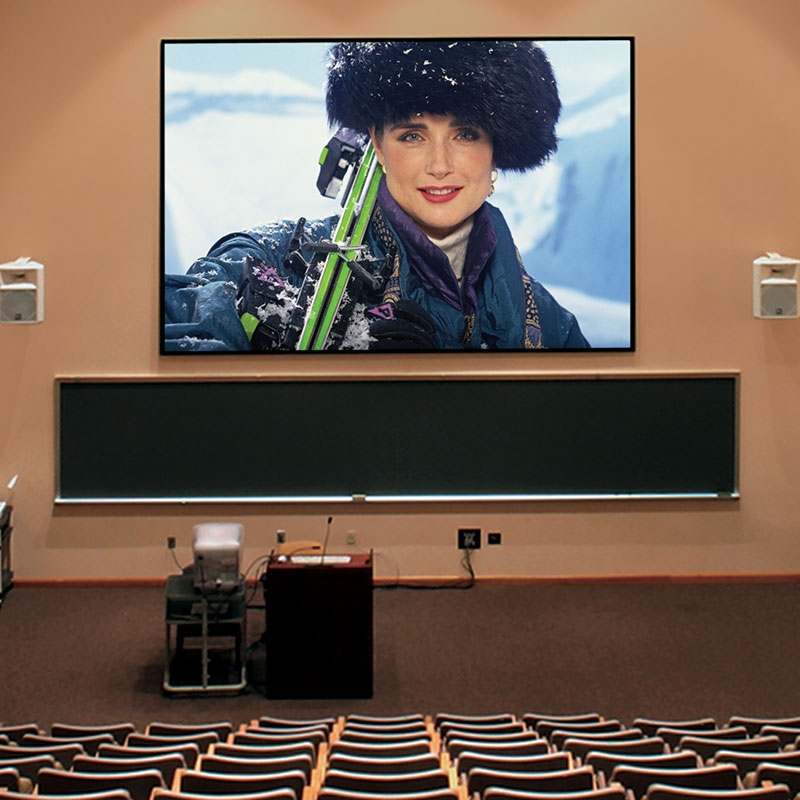

The wall-mounted shadowbox clarion projection screen features the advantage of a fixed frame screen. This unit is Constructed utilizing snaps to attach the viewing surface onto the back of an extruded aluminum frame. The system Keeps the surface taut providing a truly flat viewing surface for better image quality that is perfect for residential, Corporate, or educational setting. A visible frame provides a black border around the perimeter of the viewing area to Present a theater-like, finished appearance. The black frame also reduces border reflection and makes image alignment Easier during installation. The shadowbox clarion is available for custom curved applications; please contact draper for More intormation.

Surfaces

Dimensions Data



AV Format
Size Image Area Case Length Net Wt.
(lbs.)
50″ x 50″ 50″ x 50″ 4’8-1/2″ 26
60″ x 60″ 60″ x 60″ 5’6-1/2″ 30
70″ x 70″ 70″ x 70″ 6’4-1/2″ 35
84″ x 84″ 84″ x 84″ 7’6-1/2″ 40
72″ x 96″ 72″ x 96″ 8’7″ 44
96″ x 96″ 96″ x 96″ 8’7″ 45
7′ x 9′ 7′ x 9′ 9’7″ 47
9′ x 9′ 9′ x 9′ 9’7″ 49
8′ x 10′ 8′ x 10′ 10’7″ 54
10′ x 10′ 10′ x 10′ 10’7″ 58
9′ x 12′ 9′ x 12′ 12’7″ 61
12′ x 12′ 12′ x 12′ 12’7″ 66

NTSC Format (4.3)
Size Image Area Case Length Net Wt.
(lbs.)
6′ 42-1/2″ x 56-1/2″ 5’6-1/2″ 30
7′ 50″ x 66-1/2″ 6’4-1/2″ 35
100″ 60″ x 80″ 7’6-1/2″ 40
10′ 69″ x 92″ 8’7″ 44
11′ 78″ x 104″ 9’7″ 47
150″ 87″ x 116″ 10’7″ 54
15′ 105″ x 140″ 12’7″ 61
200″ 118″ x 158″ 14’1″ 68

HDTV Format (16.9)
Size Image Area Case Length Net Wt.
(lbs.)
92″ 45″ x 80″ 7’6-1/2″ 40
106″ 52″ x 92″ 8’7″ 44
119″ 58″ x 104″ 9’7″ 46
133″ 65″ x 116″ 10’7″ 54
161″ 79″ x 140″ 12’7″ 61
184″ 90″ x 160″ 14’3″ 68

WideScreen Format (1.85:1)
Size Image Area Case Length Net Wt.
(lbs.)
99″ 47″ x 87″ 8’1″ 40
108″ 50″ x 92″ 8’7″ 44
120″ 56″ x 104″ 9’7″ 49
132″ 63″ x 116″ 10’7″ 54
162″ 76″ x 140″ 12’7″ 66
182″ 86-1/2″ x 160″ 14’3″ 68
