Rolleramic

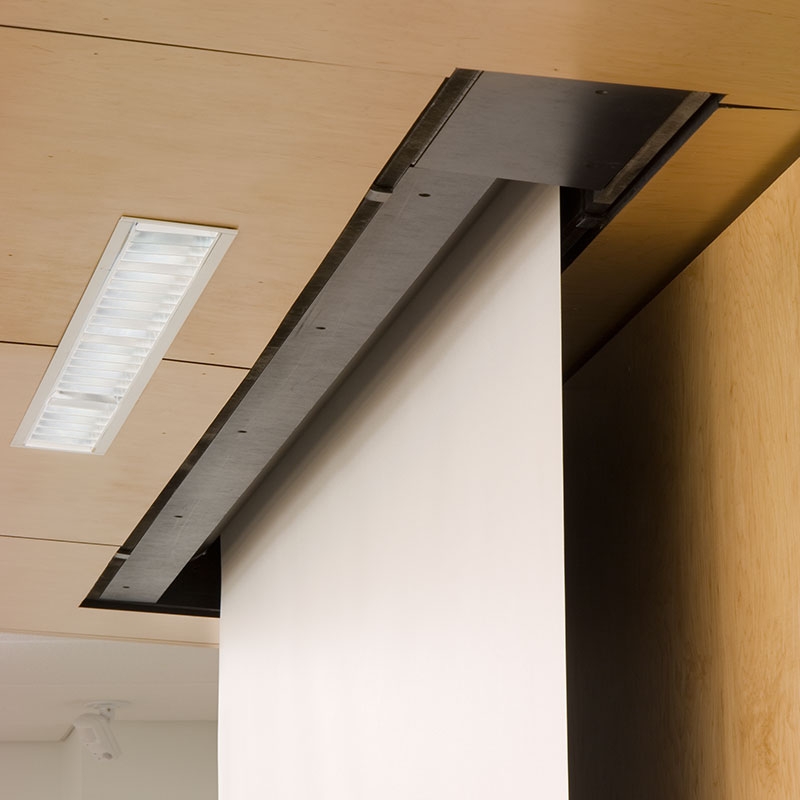

Electric Projection Screen – Wall/Ceiling Mounted Non-Tensioned

Highlights:

  • Case dimensions 23 cm x 23 cm.
  • Maximum image width up to 610 cm wide, depending on surface selection.
  • Available in AV format, HDTV, AV and 16:10 format.
  • Housed in 19 mm warp resistant composition wood with hinged panel for motor compartment. Case finished with a coat of black primer paint.
  • Heavy-duty 220V motor electric projection screen with end mounted motor and direct drive.
  • Custom sizes available.

Rolleramic

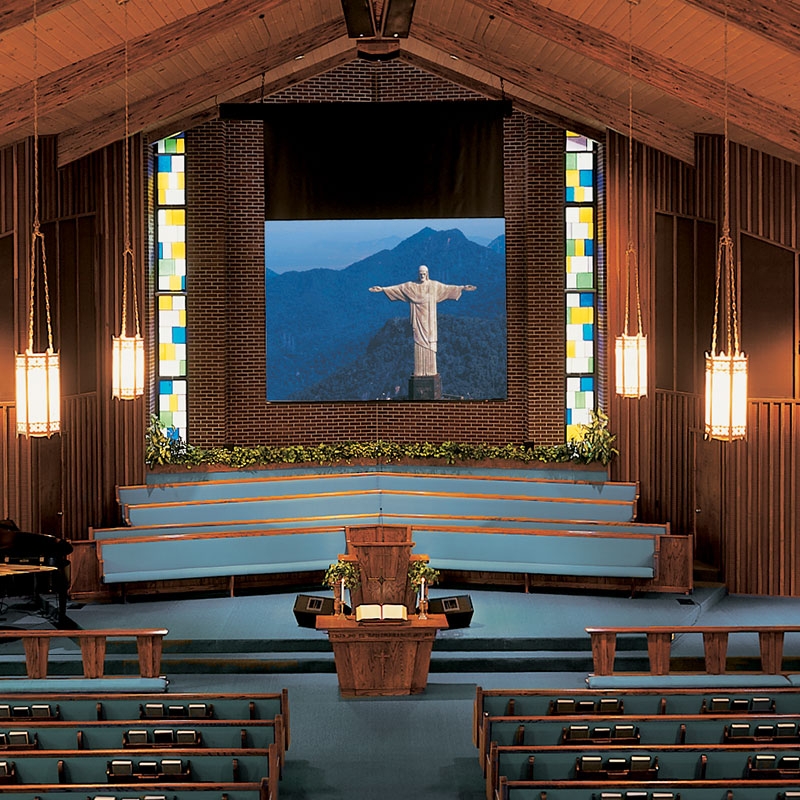

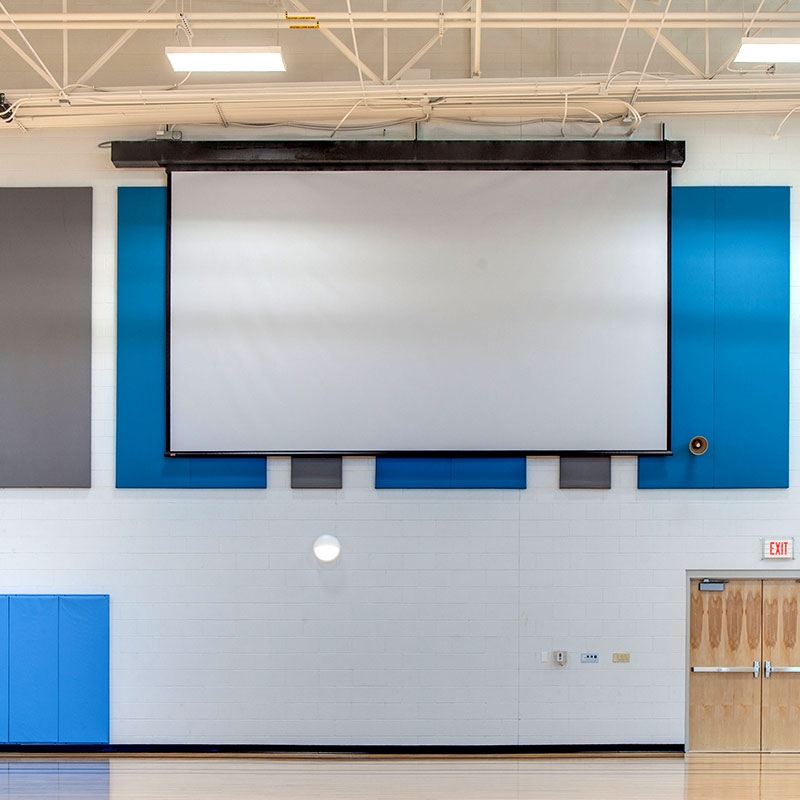

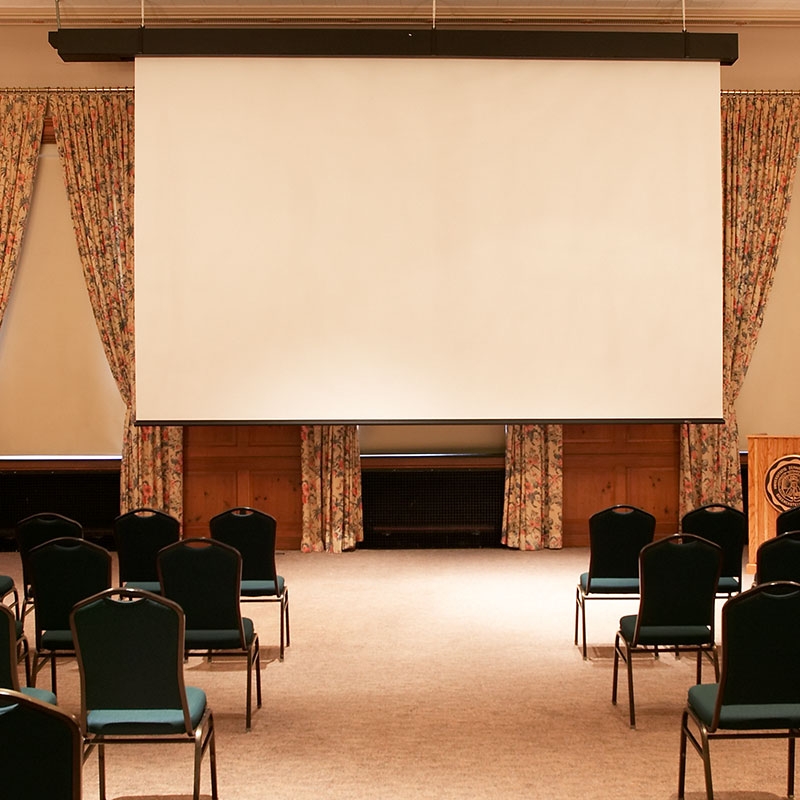

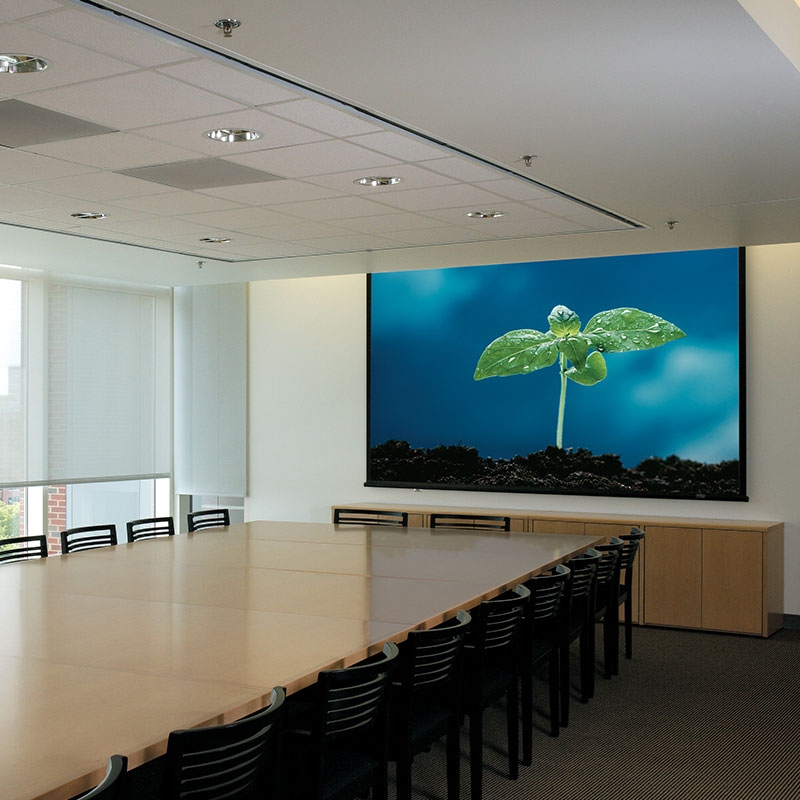

Engineered with a direct drive motor, the wall- or ceiling-mounted rolleramic electric projection Screen is an economical option for large venues in auditoriums, lecture halls, hospitals, hotels, and Churches. This free-hanging, fiberglass-backed projection screen maintains flatness thanks to the Weight of the screen and bottom dowel. The motor is housed in an all wood case and is insulated To minimize friction, which provides smooth, quiet operation.

Surface

Dimensions Data



AV Format
Size Image Area Case Length Net Wt.
(lbs.)
50″ x 50″ 50″ x 50″ 4’8-1/2″ 26
60″ x 60″ 60″ x 60″ 5’6-1/2″ 30
70″ x 70″ 70″ x 70″ 6’4-1/2″ 35
84″ x 84″ 84″ x 84″ 7’6-1/2″ 40
72″ x 96″ 72″ x 96″ 8’7″ 44
96″ x 96″ 96″ x 96″ 8’7″ 45
7′ x 9′ 7′ x 9′ 9’7″ 47
9′ x 9′ 9′ x 9′ 9’7″ 49
8′ x 10′ 8′ x 10′ 10’7″ 54
10′ x 10′ 10′ x 10′ 10’7″ 58
9′ x 12′ 9′ x 12′ 12’7″ 61
12′ x 12′ 12′ x 12′ 12’7″ 66

NTSC Format (4.3)
Size Image Area Case Length Net Wt.
(lbs.)
6′ 42-1/2″ x 56-1/2″ 5’6-1/2″ 30
7′ 50″ x 66-1/2″ 6’4-1/2″ 35
100″ 60″ x 80″ 7’6-1/2″ 40
10′ 69″ x 92″ 8’7″ 44
11′ 78″ x 104″ 9’7″ 47
150″ 87″ x 116″ 10’7″ 54
15′ 105″ x 140″ 12’7″ 61
200″ 118″ x 158″ 14’1″ 68

HDTV Format (16.9)
Size Image Area Case Length Net Wt.
(lbs.)
92″ 45″ x 80″ 7’6-1/2″ 40
106″ 52″ x 92″ 8’7″ 44
119″ 58″ x 104″ 9’7″ 46
133″ 65″ x 116″ 10’7″ 54
161″ 79″ x 140″ 12’7″ 61
184″ 90″ x 160″ 14’3″ 68

WideScreen Format (1.85:1)
Size Image Area Case Length Net Wt.
(lbs.)
99″ 47″ x 87″ 8’1″ 40
108″ 50″ x 92″ 8’7″ 44
120″ 56″ x 104″ 9’7″ 49
132″ 63″ x 116″ 10’7″ 54
162″ 76″ x 140″ 12’7″ 66
182″ 86-1/2″ x 160″ 14’3″ 68
