Premier/Series C

Electric Projection Screen – Wall/Ceiling Mounted Tab-Tensioned

Highlights:

  • Case dimensions are 15 cm x 13 cm)
  • Maximum image width up to 366 cm wide, depending on surface selection.

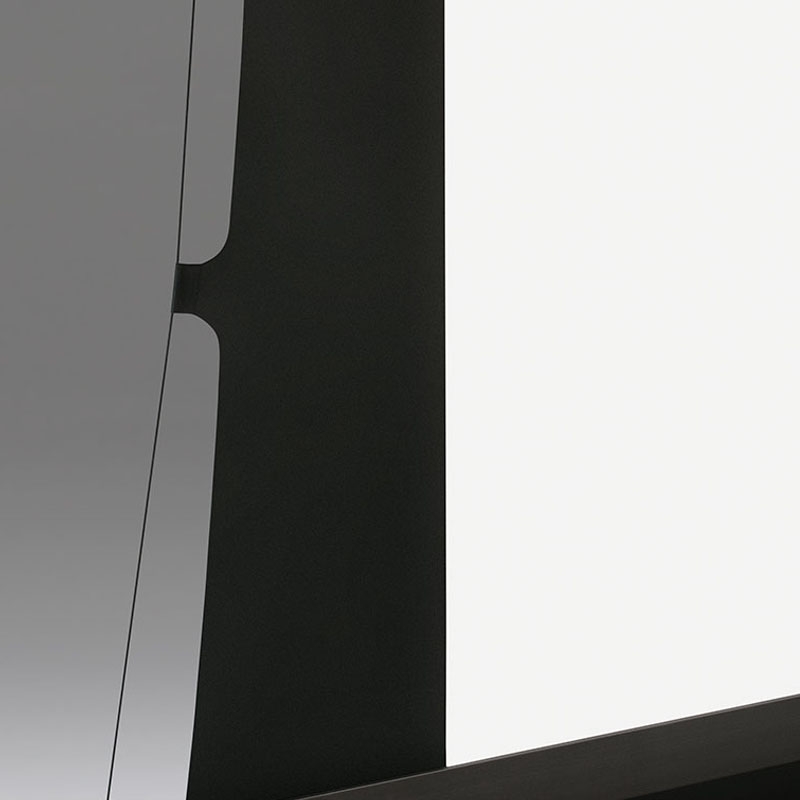

  • RF welded tabs eliminate stickiness and tab separation. Tabs warranted against separation for five years.
  • Image area framed with black on all four sides. Black drop standard, depending on screen size. Extra drop above image area available upon request.

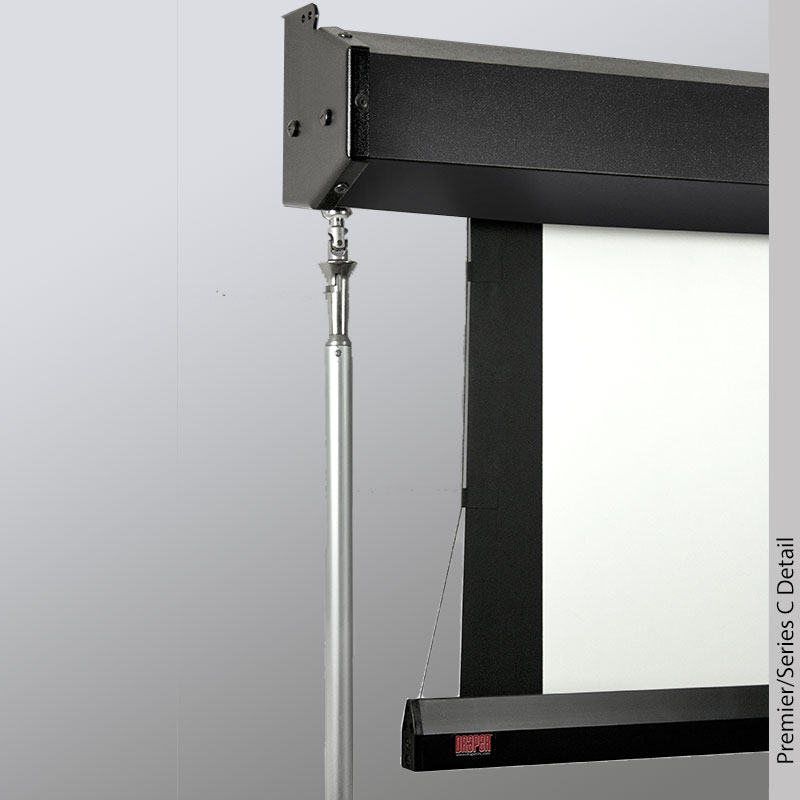

  • Crank-operated projection screen. Polished aluminum crank handle is removable when not in use.
  • Includes black case with matching endcaps. Endcaps form universal hanging brackets for attachment to wall or ceiling.
  • Optional floating mounting brackets (for wall and ceiling)
  • Custom sizes available.

Premier/Series C

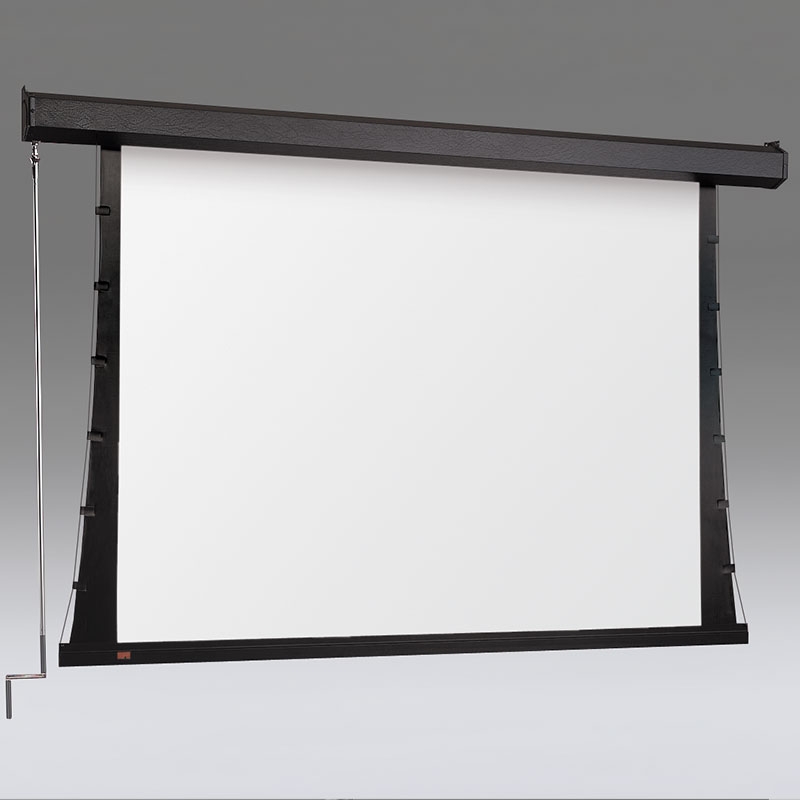

The crank-operated premier c wall-or ceiling-mounted, tab-tensioned projection screen features a Crank handle for enhanced screen security. The detachable crank handle provides an added Benefit of limiting screen access within educational or business-related environments. Tab- Tensioned screens provide a perfectly flat viewing surface with better image quality. Draper’s rf Welded tabs create a more durable seal that eliminates separation and stickiness.

Surfaces

Dimension Data



AV Format
Size Image Area Case Length Net Wt. (lbs.)
50″ x 50″ 50″ x 50″ 4’8-1/2″ 26
60″ x 60″ 60″ x 60″ 5’6-1/2″ 30
70″ x 70″ 70″ x 70″ 6’4-1/2″ 35
84″ x 84″ 84″ x 84″ 7’6-1/2″ 40
72″ x 96″ 72″ x 96″ 8’7″ 44
96″ x 96″ 96″ x 96″ 8’7″ 45
7′ x 9′ 7′ x 9′ 9’7″ 47
9′ x 9′ 9′ x 9′ 9’7″ 49
8′ x 10′ 8′ x 10′ 10’7″ 54
10′ x 10′ 10′ x 10′ 10’7″ 58
9′ x 12′ 9′ x 12′ 12’7″ 61
12′ x 12′ 12′ x 12′ 12’7″ 66

NTSC Format (4.3)
Size Image Area Case Length Net Wt. (lbs.)
6′ 42-1/2″ x 56-1/2″ 5’6-1/2″ 30
7′ 50″ x 66-1/2″ 6’4-1/2″ 35
100″ 60″ x 80″ 7’6-1/2″ 40
10′ 69″ x 92″ 8’7″ 44
11′ 78″ x 104″ 9’7″ 47
150″ 87″ x 116″ 10’7″ 54
15′ 105″ x 140″ 12’7″ 61
200″ 118″ x 158″ 14’1″ 68

HDTV Format (16.9)
Size Image Area Case Length Net Wt. (lbs.)
92″ 45″ x 80″ 7’6-1/2″ 40
106″ 52″ x 92″ 8’7″ 44
119″ 58″ x 104″ 9’7″ 46
133″ 65″ x 116″ 10’7″ 54
161″ 79″ x 140″ 12’7″ 61
184″ 90″ x 160″ 14’3″ 68

WideScreen Format (1.85:1)
Size Image Area Case Length Net Wt. (lbs.)
99″ 47″ x 87″ 8’1″ 40
108″ 50″ x 92″ 8’7″ 44
120″ 56″ x 104″ 9’7″ 49
132″ 63″ x 116″ 10’7″ 54
162″ 76″ x 140″ 12’7″ 66
182″ 86-1/2″ x 160″ 14’3″ 68
