Available model by power output;
PLE‑2MA120‑EU
PLE‑2MA240‑EU
Highlights:

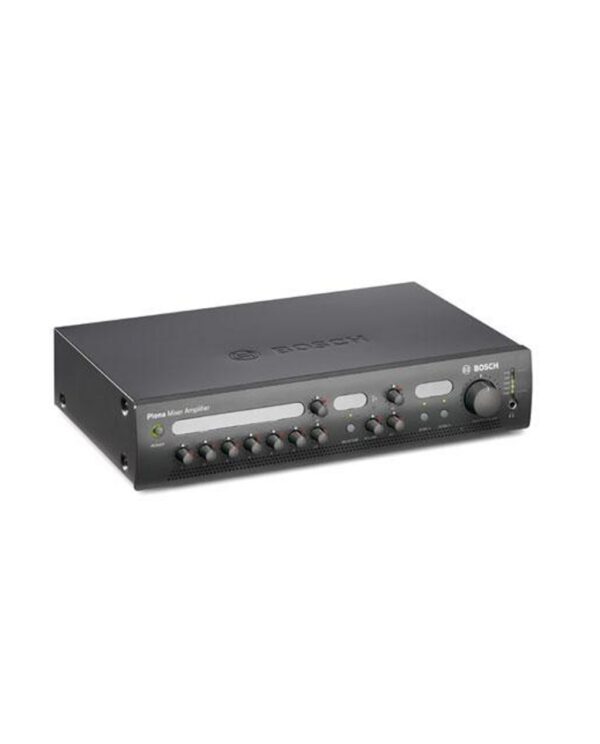

The Plena mixer is a high performance, professional public address mixer with modern state of the art features. Combined with the PLE-1P120-EU or PLE-1P240-EU amplifiers, you can build an easy-to-operate yet powerful and flexible public address system. All this without sacrificing features such as ducking, priority, and flexibility. The mixer fulfills a wide variety of public address requirements
| Specification | Details |
|---|---|
| Mains power supply | |
| Voltage | 115 – 230 VAC ±10%, 50/60 Hz |
| Inrush Current PLE‑1P120‑EU | 4.5/9 A (230/115 VAC) |
| Inrush Current PLE‑1P240‑EU | 9/18 A (230/115 VAC) |
| Power consumption PLE‑1P120‑EU | 380 VA |
| Power consumption PLE‑1P240‑EU | 760 VA |
| Battery power supply | |
| Voltage | 24 VDC, +10% / -15% |
| Current PLE‑1P120‑EU | 5.5 A |
| Current PLE‑1P240‑EU | 11 A |
| Charge current | 0.5 ADC |
| Charge float voltage | 27.3 VDC |
| Power consumption (PLE‑1P120‑EU) | |
| Max power (mains) | 227 W |
