Highlights:

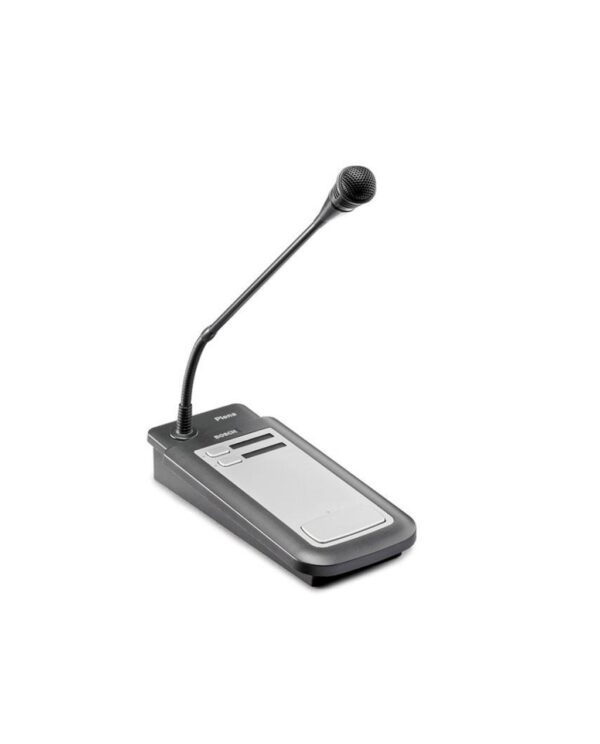

The Plena two-zone call station is a modern, high-quality call station with a stable metal base design, a flexible microphone stem and a unidirectional condenser microphone. It can make calls to selected zones in a public address system built with the PLE series two-zone mixer and mixer amplifiers. In addition to tabletop use, the Plena design allows neat flush-mounting in desktops.
| Category | Specification |
|---|---|
| Phantom power supply | Voltage range: 12 to 48 V Current consumption: <8 mA |
| Performance | Sensitivity: 0.7 mV @ 85 dB SPL (2 mV/Pa) Maximum input sound level: 110 dB SPL Distortion: <0.6% (maximum input) Input noise level (equiv.): 28 dB SPLA (S/N 66 dBA ref. 1 Pa) Frequency response: 100 Hz to 16 kHz Output impedance: 200 ohm |
| Mechanical | Base dimensions (H x W x D): 40 x 100 x 235 mm / (1.57 x 3.97 x 9.25 in) Weight Approx.: 1 kg (2.2 lb) Color: Charcoal with silver Stem length with mic: 390 mm (15.35 in) Cable length: 2 m (6.56 ft) |
| Environmental | Operating temperature: -10 ºC to +55 ºC (14 ºF to +131 ºF) Storage temperature: -40 ºC to +70 ºC (-40 ºF to +158 ºF) Relative humidity: <95% |
