Onyx

Fixed Screens

Highlights:

  • Maximum image width up to 610 cm wide, depending on surface selection.
  • Onyx is available for custom curved applications. Please contact Draper for more information.
  • Fixed frame screen designed to be wall-mounted or flown. Mounting fasteners not included.

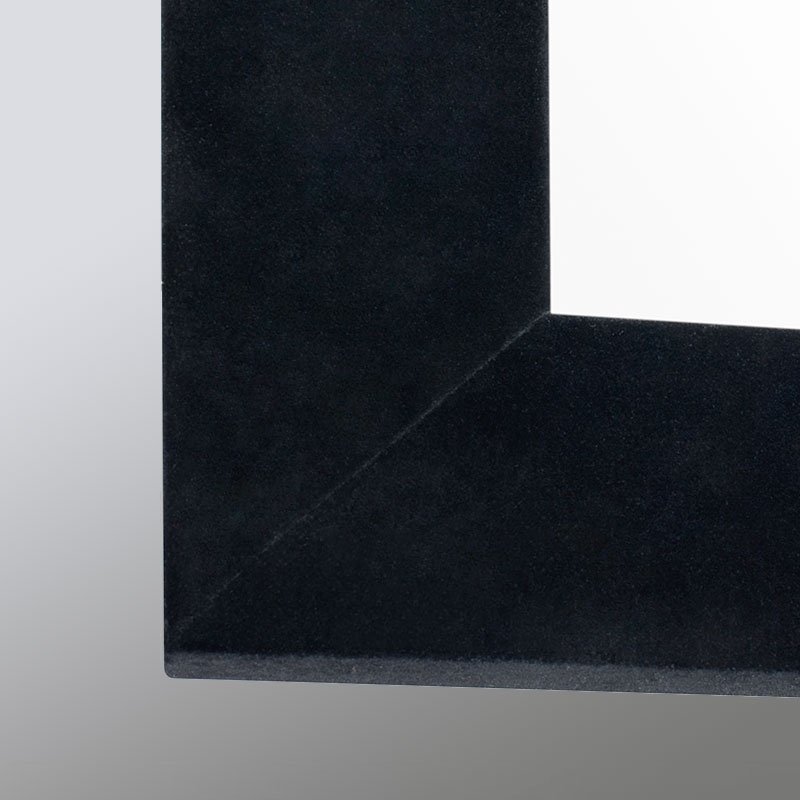

  • Extruded aluminum frame finished in black and forms 10 cm border on all four sides. Vel-Tex finish optional.
  • Vel-Tex is a black, velvety textile covering that cuts reflection and conceals all trace of joints in the frame.
  • Frame equipped with mounting flange that matches wall brackets.
  • Viewing surface to have 19 mm hem pocket on all four sides to accept screen insertion tubing.
  • Custom sizes available.

Onyx

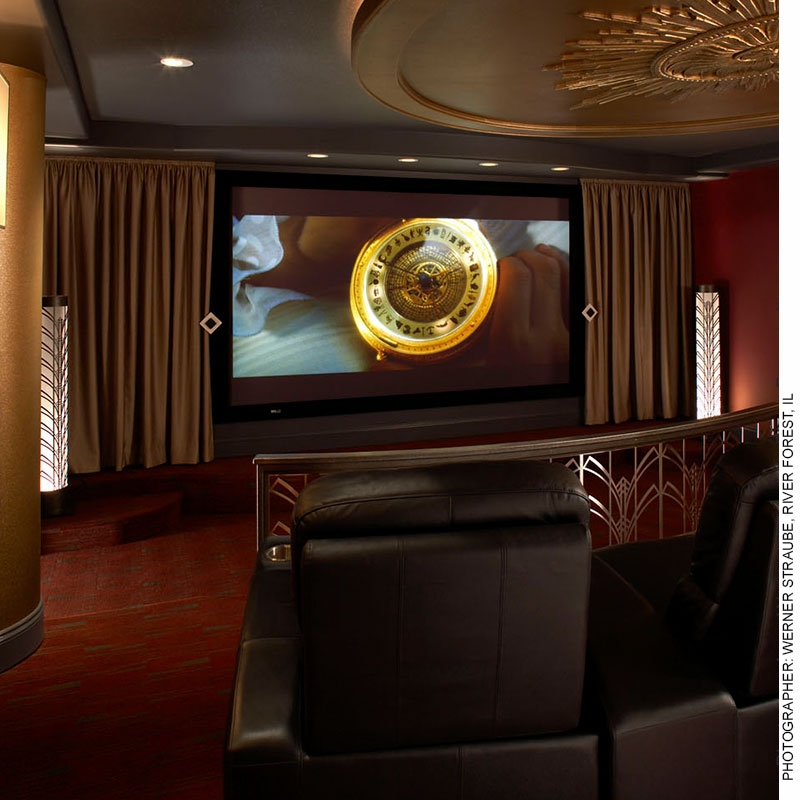

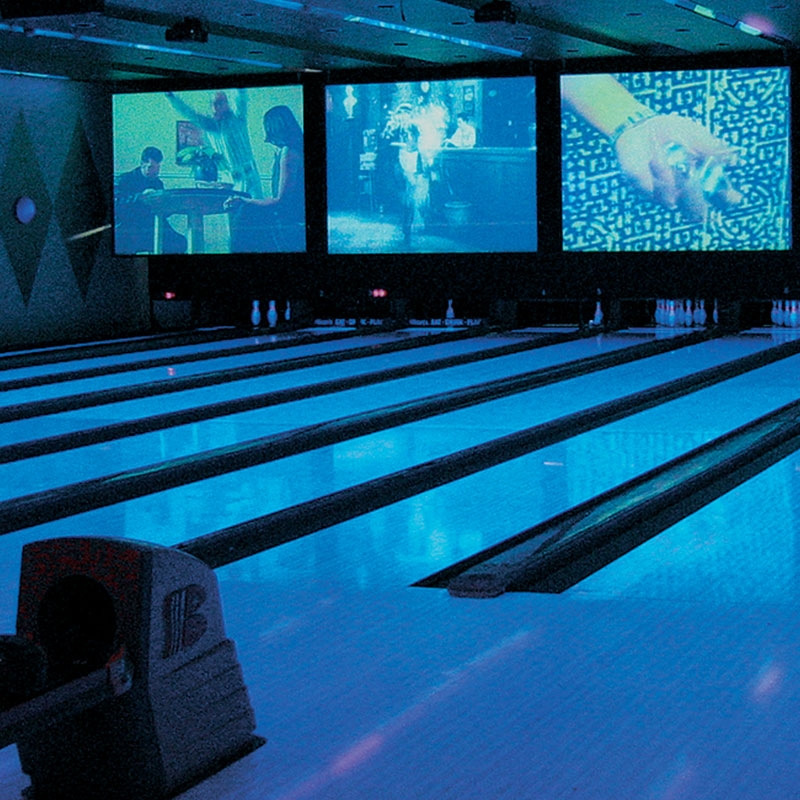

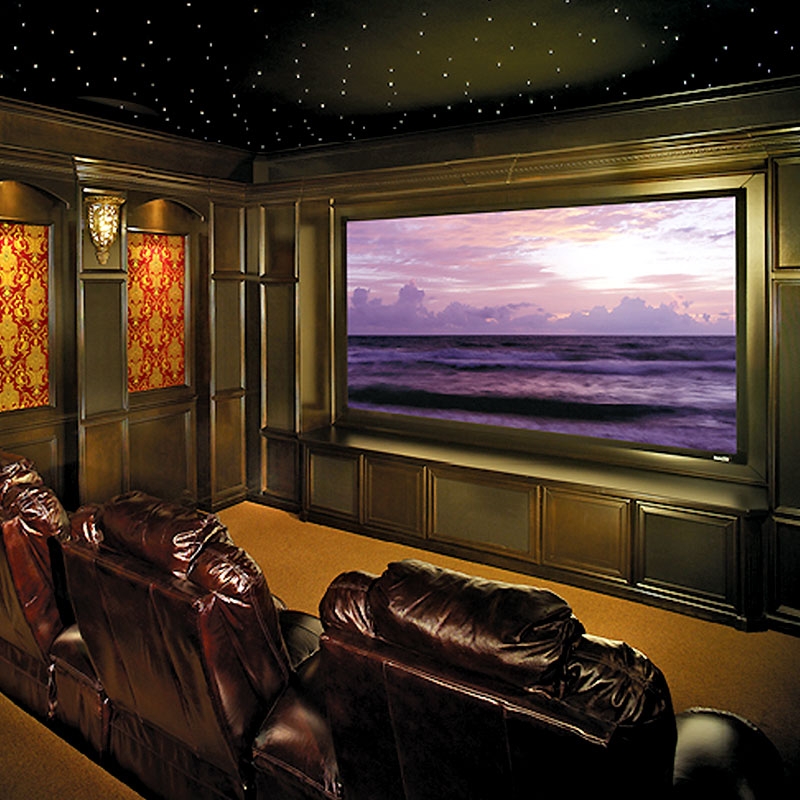

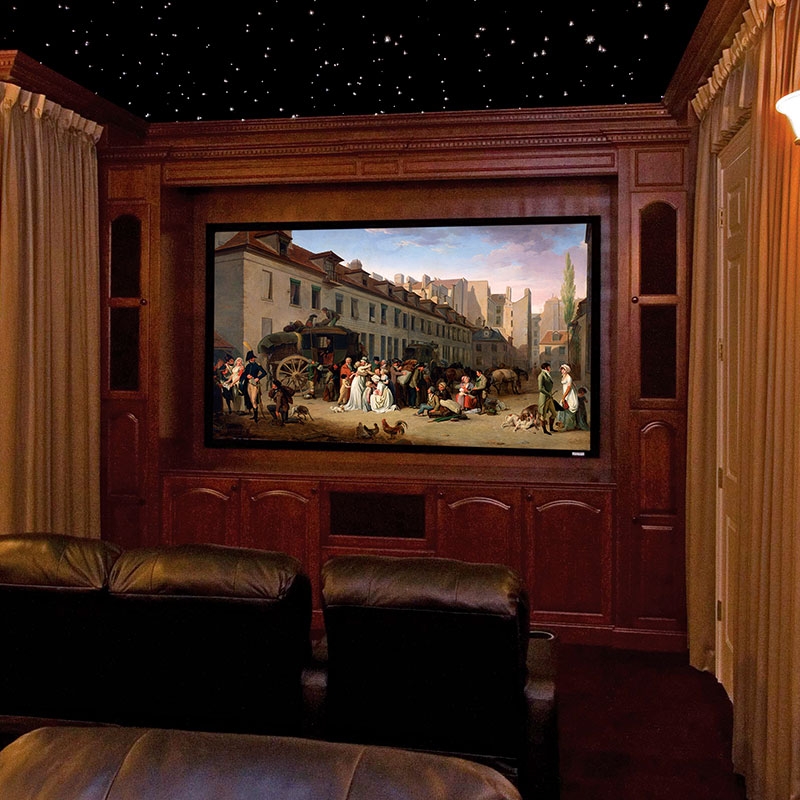

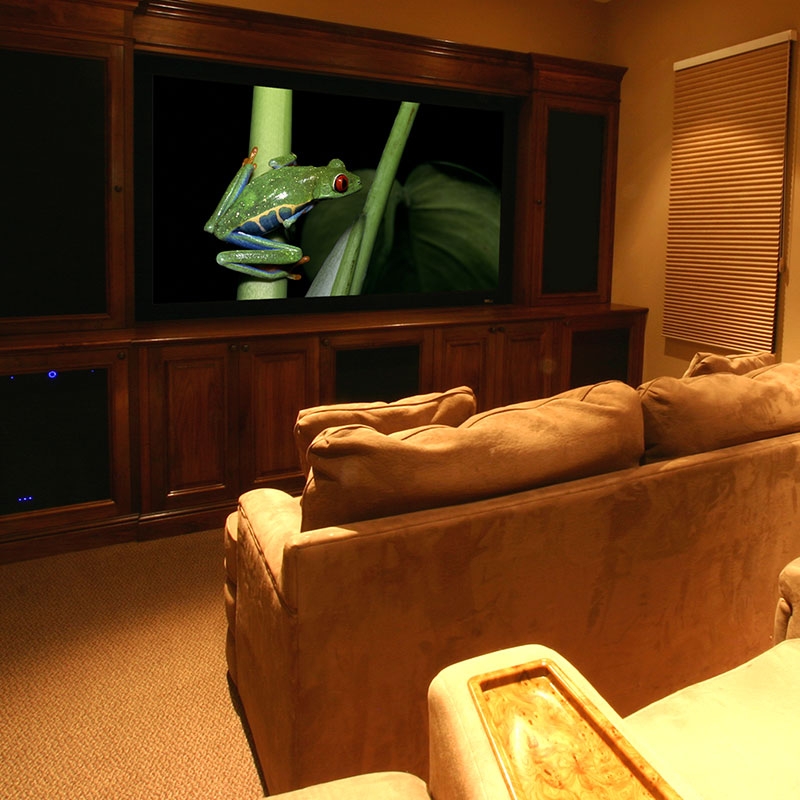

Sharper image quality makes the fixed frame onyx projection screen ideal for control centers, Boardrooms, training centers, home theaters, or any application that requires better image quality. Housed in a larger “Picture frame” style, the onyx offers a beautifully framed image for any home Or commercial decor. There are no snaps! Unique fabric retention system enables uniform tension Adjustment to the entire surface area, without tools, to provide a truly flat viewing surface in Seconds. The result is excellent image quality and quick and easy assembly. The onyx is available For custom curved applications; please contact draper for more information.

Surfaces

Dimensions Data



AV Format
Size Image Area Case Length Net Wt.
(lbs.)
50″ x 50″ 50″ x 50″ 4’8-1/2″ 26
60″ x 60″ 60″ x 60″ 5’6-1/2″ 30
70″ x 70″ 70″ x 70″ 6’4-1/2″ 35
84″ x 84″ 84″ x 84″ 7’6-1/2″ 40
72″ x 96″ 72″ x 96″ 8’7″ 44
96″ x 96″ 96″ x 96″ 8’7″ 45
7′ x 9′ 7′ x 9′ 9’7″ 47
9′ x 9′ 9′ x 9′ 9’7″ 49
8′ x 10′ 8′ x 10′ 10’7″ 54
10′ x 10′ 10′ x 10′ 10’7″ 58
9′ x 12′ 9′ x 12′ 12’7″ 61
12′ x 12′ 12′ x 12′ 12’7″ 66

NTSC Format (4.3)
Size Image Area Case Length Net Wt.
(lbs.)
6′ 42-1/2″ x 56-1/2″ 5’6-1/2″ 30
7′ 50″ x 66-1/2″ 6’4-1/2″ 35
100″ 60″ x 80″ 7’6-1/2″ 40
10′ 69″ x 92″ 8’7″ 44
11′ 78″ x 104″ 9’7″ 47
150″ 87″ x 116″ 10’7″ 54
15′ 105″ x 140″ 12’7″ 61
200″ 118″ x 158″ 14’1″ 68

HDTV Format (16.9)
Size Image Area Case Length Net Wt.
(lbs.)
92″ 45″ x 80″ 7’6-1/2″ 40
106″ 52″ x 92″ 8’7″ 44
119″ 58″ x 104″ 9’7″ 46
133″ 65″ x 116″ 10’7″ 54
161″ 79″ x 140″ 12’7″ 61
184″ 90″ x 160″ 14’3″ 68

WideScreen Format (1.85:1)
Size Image Area Case Length Net Wt.
(lbs.)
99″ 47″ x 87″ 8’1″ 40
108″ 50″ x 92″ 8’7″ 44
120″ 56″ x 104″ 9’7″ 49
132″ 63″ x 116″ 10’7″ 54
162″ 76″ x 140″ 12’7″ 66
182″ 86-1/2″ x 160″ 14’3″ 68
