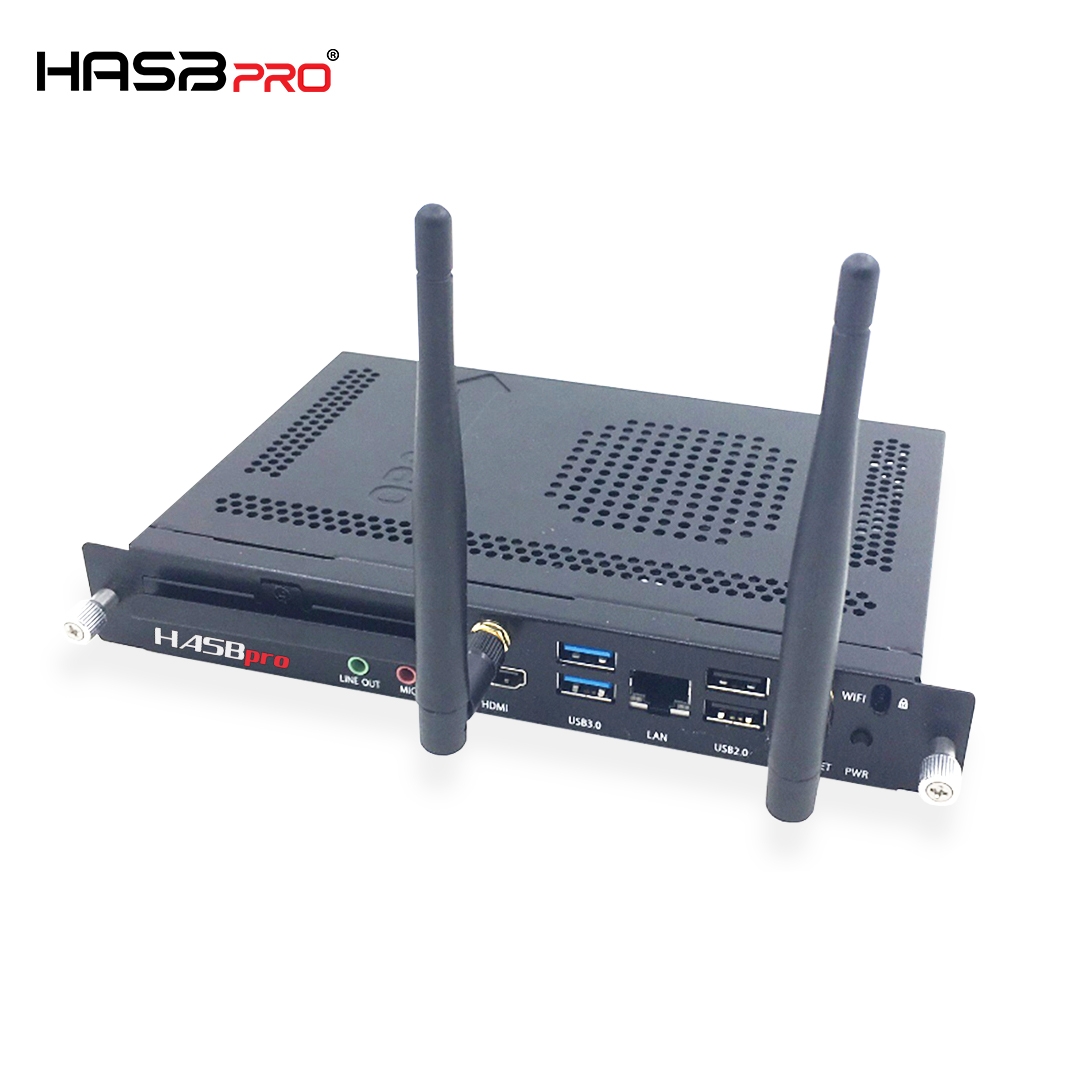

HASBpro Mini PC OPS Model – HP100

HASBpro HP100 Mini PC OPS modules provide a hassle-free Windows 11 solution based on the latest 13th Generation Intel Core™ processors, and are designed specifically to work with Newline interactive touch panel

Features:

  • Intel OPS Standard Module
  • Intel Sky Lake-U & Kabylake-U
  • Pin to Pin Design
  • Dual Channel DDR4 Memory
  • JAE 80-pin connection
  • Support M.2 WIFI/BT Module
  • Support M.2 SSD Module
  • Optional Intel vPro/AMT Technology
  • Optional TPM2.0
  • Optional 4K/30Hz & 4K/60Hz

CERTIFICATIONS & APPROVALS



Provide a hassle-free Windows 11

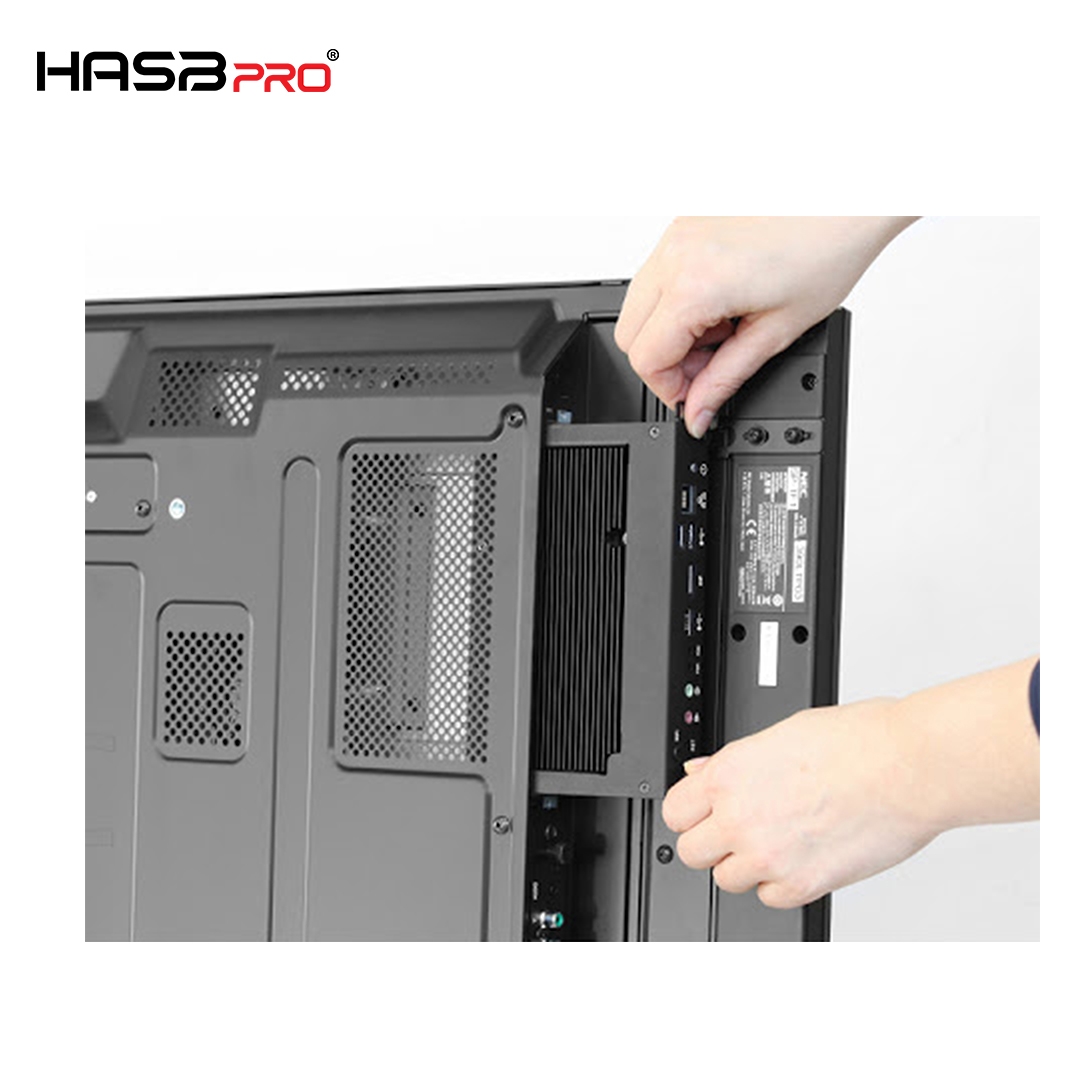

HASBpro Open Pluggable Specification (OPS) PC modules provide a hassle-free Windows 11 solution based on the latest 13th generation Intel Core™ processors, and are designed specifically to work with Newline interactive displays. Install the OPS PC module in a Newline interactive display’s OPS slot to provide a complete 4K UHD Windows 11 solution at your fingertips, without the need for an external device or additional cables.

Powerful Processor with integrated Intel HD Graphics Chipset

Eco-friendly with low consumption, bringing better performance.

Specification

Category Specification
General
CPU Intel® Gen13th, Alder Lake Core™ i5/i7 CPU, Main Frequency 3.3~4.4GHz/3.4~4.7GHz (e.g., i5-1240P/i7-1260P) 12 Core 16 Thread, 12/18 MB Intel® Smart Cache Standard Power Consumption 28W, Max Turbo to 64W
Graphic Intel Iris Xe Graphics eligible
Memory 2 x DDR4 Slot, support 2666/3200 MT/s, Max 64GB
Storage 1 x NGFF-M.2 PCIE Slot, for NVME / SATA, 1 x MSATA Slot, Supports hard disk interface
Ethernet LAN 1 x 10/100/1000Mbps
WIFI 1 x M.2 2230 Slot, Support WiFi 2.4G & 5G (WiFi6 for Optional)
Audio Cmedia USB Audio (HS100B)
I/O Port

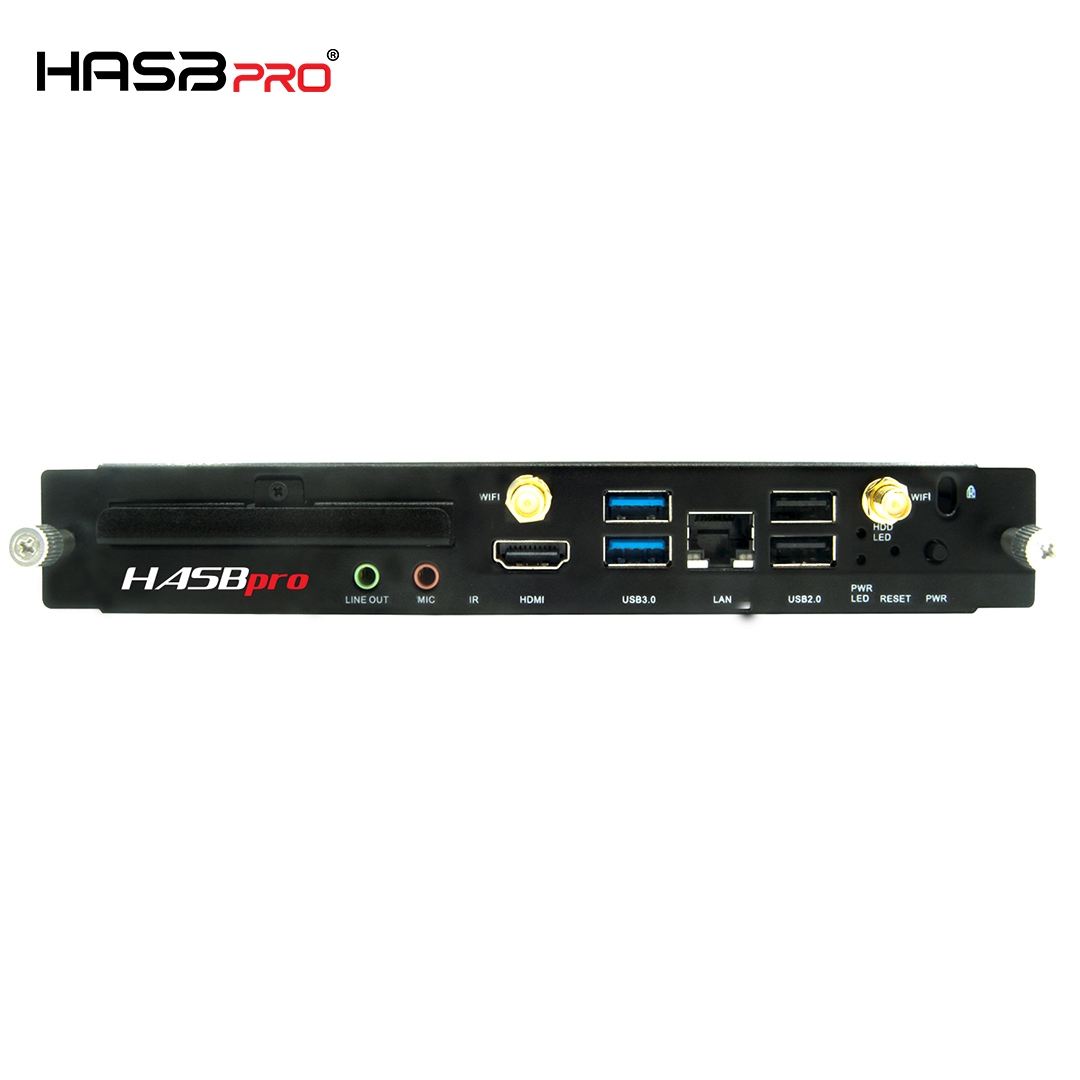

Interface 2 x USB 3.2, 2 x USB 2.0, 1 x Type-C (USB 3.0), 1 x HDMI: 4K/60HZ, 1 x DP: 8K/60Hz, 1 x Line-out, 1 x Mic in, 1 x Gigabit Lan, 1 x Power On/Off
Power
Power Supply 19V/4.7A
Dimension
Size (mm) OPS: 118*180*30mm
UnitBox: 228*257*79mm
Weight (kg) N.W. ≈0.8 Kg
G.W ≈1 Kg
Temperature/ Humidity
Working Temperature 0°C ~ 45°C
Storage Temperature -40°C ~ 80°C
Working Humidity 10% – 95% @40°C non-condensing
OS
Support Windows 10/11 & Linux
