Evenroll Rope & Pulley

Manual Projection Screen – Wall/Ceiling Recessed Non-Tensioned

Highlights:

  • Maximum fabric width up to 732 cm wide.
  • Optional wall mounting brackets, formed of 6 mm strap steel, extends projection screen 30 cm from the wall.
  • Rope and pulley system utilizes nylon marine pulleys and flanged spools for smooth operation.
  • Installs easily to wall or ceiling.
  • Cable clamp provided to stop screen at desired level.
  • Custom sizes available.

Evenroll Rope & Pulley

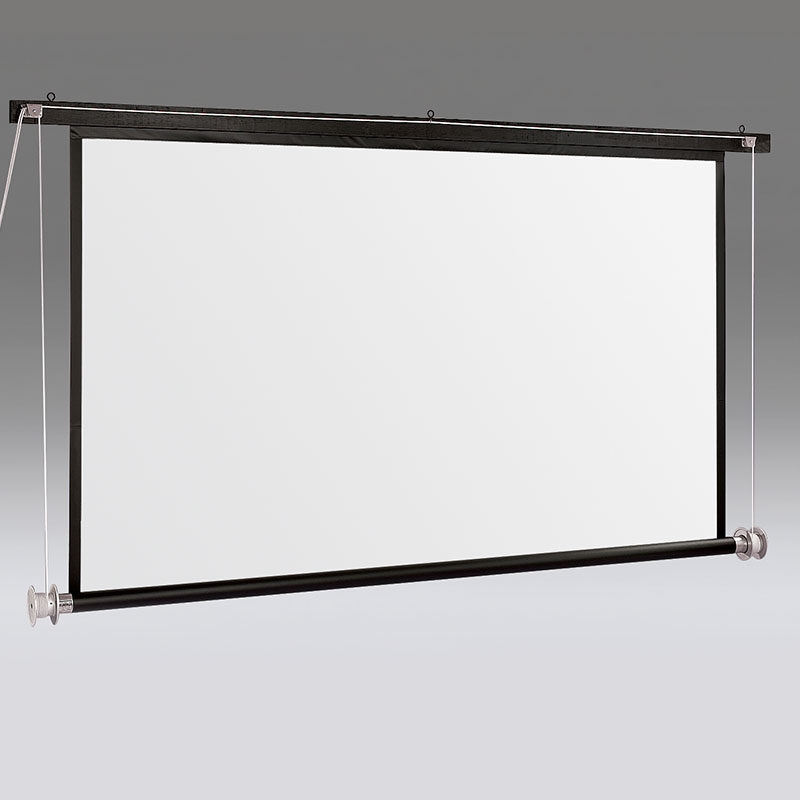

The evenroll rope & pulley wall- or ceiling-mounted, projection screen utilizes a nylon marine Pulley system. Flanged spools keep the cords tracking properly and provide smooth operation and Performance. This free-hanging, fiberglass-backed projection screen maintains flatness thanks to The weight of the screen and bottom roller. It installs easily making it ideal for gymnasiums, Auditoriums, or other large venues.

Surfaces

Dimensions Data



AV Format
Size Image Area Case Length Net Wt.
(lbs.)
50″ x 50″ 50″ x 50″ 4’8-1/2″ 26
60″ x 60″ 60″ x 60″ 5’6-1/2″ 30
70″ x 70″ 70″ x 70″ 6’4-1/2″ 35
84″ x 84″ 84″ x 84″ 7’6-1/2″ 40
72″ x 96″ 72″ x 96″ 8’7″ 44
96″ x 96″ 96″ x 96″ 8’7″ 45
7′ x 9′ 7′ x 9′ 9’7″ 47
9′ x 9′ 9′ x 9′ 9’7″ 49
8′ x 10′ 8′ x 10′ 10’7″ 54
10′ x 10′ 10′ x 10′ 10’7″ 58
9′ x 12′ 9′ x 12′ 12’7″ 61
12′ x 12′ 12′ x 12′ 12’7″ 66

NTSC Format (4.3)
Size Image Area Case Length Net Wt.
(lbs.)
6′ 42-1/2″ x 56-1/2″ 5’6-1/2″ 30
7′ 50″ x 66-1/2″ 6’4-1/2″ 35
100″ 60″ x 80″ 7’6-1/2″ 40
10′ 69″ x 92″ 8’7″ 44
11′ 78″ x 104″ 9’7″ 47
150″ 87″ x 116″ 10’7″ 54
15′ 105″ x 140″ 12’7″ 61
200″ 118″ x 158″ 14’1″ 68

HDTV Format (16.9)
Size Image Area Case Length Net Wt.
(lbs.)
92″ 45″ x 80″ 7’6-1/2″ 40
106″ 52″ x 92″ 8’7″ 44
119″ 58″ x 104″ 9’7″ 46
133″ 65″ x 116″ 10’7″ 54
161″ 79″ x 140″ 12’7″ 61
184″ 90″ x 160″ 14’3″ 68

WideScreen Format (1.85:1)
Size Image Area Case Length Net Wt.
(lbs.)
99″ 47″ x 87″ 8’1″ 40
108″ 50″ x 92″ 8’7″ 44
120″ 56″ x 104″ 9’7″ 49
132″ 63″ x 116″ 10’7″ 54
162″ 76″ x 140″ 12’7″ 66
182″ 86-1/2″ x 160″ 14’3″ 68
