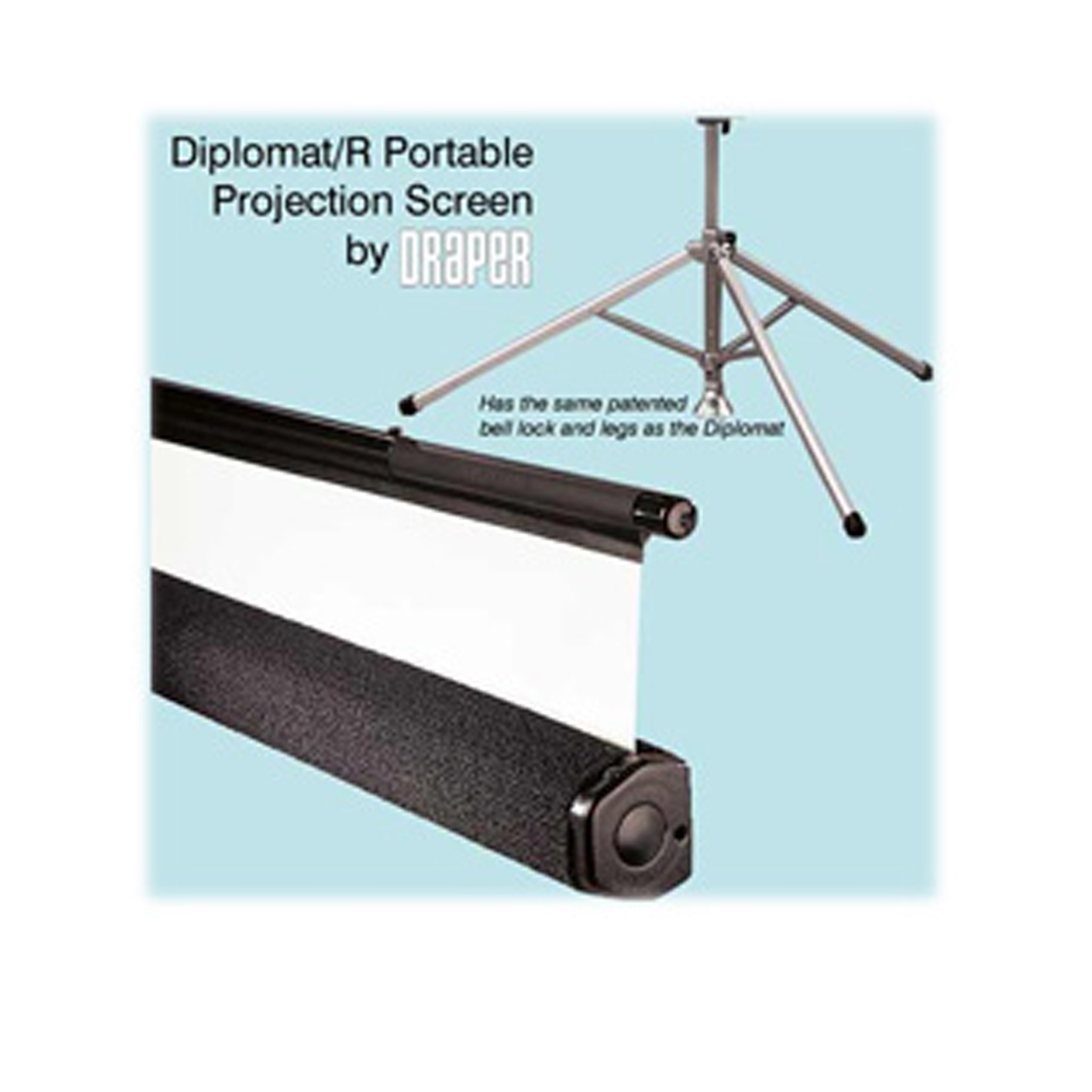

Diplomat/R


Portable Folding Screen – Tripod

Highlights:

  • All the best features of the Diplomat made more durable.
  • Case is scratch resistant baked-on black plastisol on steel.
  • Available with optional black or grey carpet.
  • Combines simplicity of design, rugged components, and careful workmanship.
  • One-hand case adjustment makes the Diplomat/R a pleasure to use.
  • Suspension slat saddle in all sizes maintains a flat viewing surface.
  • Easy setup.
  • Exclusive Bell Leg Lock protects the Diplomat/R’s sturdy gabled aluminum legs during storage and transportation.
  • Black leatherette zippered carrying case is optionally available.
  • Depending on surface, available in sizes through 244 cm x 244 cm and 305 cm AV format.
  • AV format screens have black borders on all four sides.
  • Optional skirts to dress-up your presentation.
  • Warranted for one year against defects in materials and workmanship.

Diplomat/R

Portable projection screen designed specifically for AV rental usage.

Dimensions Data



AV Format

Size Image Area Case Length Net Wt.
(lbs.)
50″ x 50″ 50″ x 50″ 4’8-1/2″ 26
60″ x 60″ 60″ x 60″ 5’6-1/2″ 30
70″ x 70″ 70″ x 70″ 6’4-1/2″ 35
84″ x 84″ 84″ x 84″ 7’6-1/2″ 40
72″ x 96″ 72″ x 96″ 8’7″ 44
96″ x 96″ 96″ x 96″ 8’7″ 45
7′ x 9′ 7′ x 9′ 9’7″ 47
9′ x 9′ 9′ x 9′ 9’7″ 49
8′ x 10′ 8′ x 10′ 10’7″ 54
10′ x 10′ 10′ x 10′ 10’7″ 58
9′ x 12′ 9′ x 12′ 12’7″ 61
12′ x 12′ 12′ x 12′ 12’7″ 66

NTSC Format (4.3)

Size Image Area Case Length Net Wt.
(lbs.)
6′ 42-1/2″ x 56-1/2″ 5’6-1/2″ 30
7′ 50″ x 66-1/2″ 6’4-1/2″ 35
100″ 60″ x 80″ 7’6-1/2″ 40
10′ 69″ x 92″ 8’7″ 44
11′ 78″ x 104″ 9’7″ 47
150″ 87″ x 116″ 10’7″ 54
15′ 105″ x 140″ 12’7″ 61
200″ 118″ x 158″ 14’1″ 68

HDTV Format (16.9)

Size Image Area Case Length Net Wt.
(lbs.)
92″ 45″ x 80″ 7’6-1/2″ 40
106″ 52″ x 92″ 8’7″ 44
119″ 58″ x 104″ 9’7″ 46
133″ 65″ x 116″ 10’7″ 54
161″ 79″ x 140″ 12’7″ 61
184″ 90″ x 160″ 14’3″ 68

WideScreen Format (1.85:1)

Size Image Area Case Length Net Wt.
(lbs.)
99″ 47″ x 87″ 8’1″ 40
108″ 50″ x 92″ 8’7″ 44
120″ 56″ x 104″ 9’7″ 49
132″ 63″ x 116″ 10’7″ 54
162″ 76″ x 140″ 12’7″ 66
182″ 86-1/2″ x 160″ 14’3″ 68
