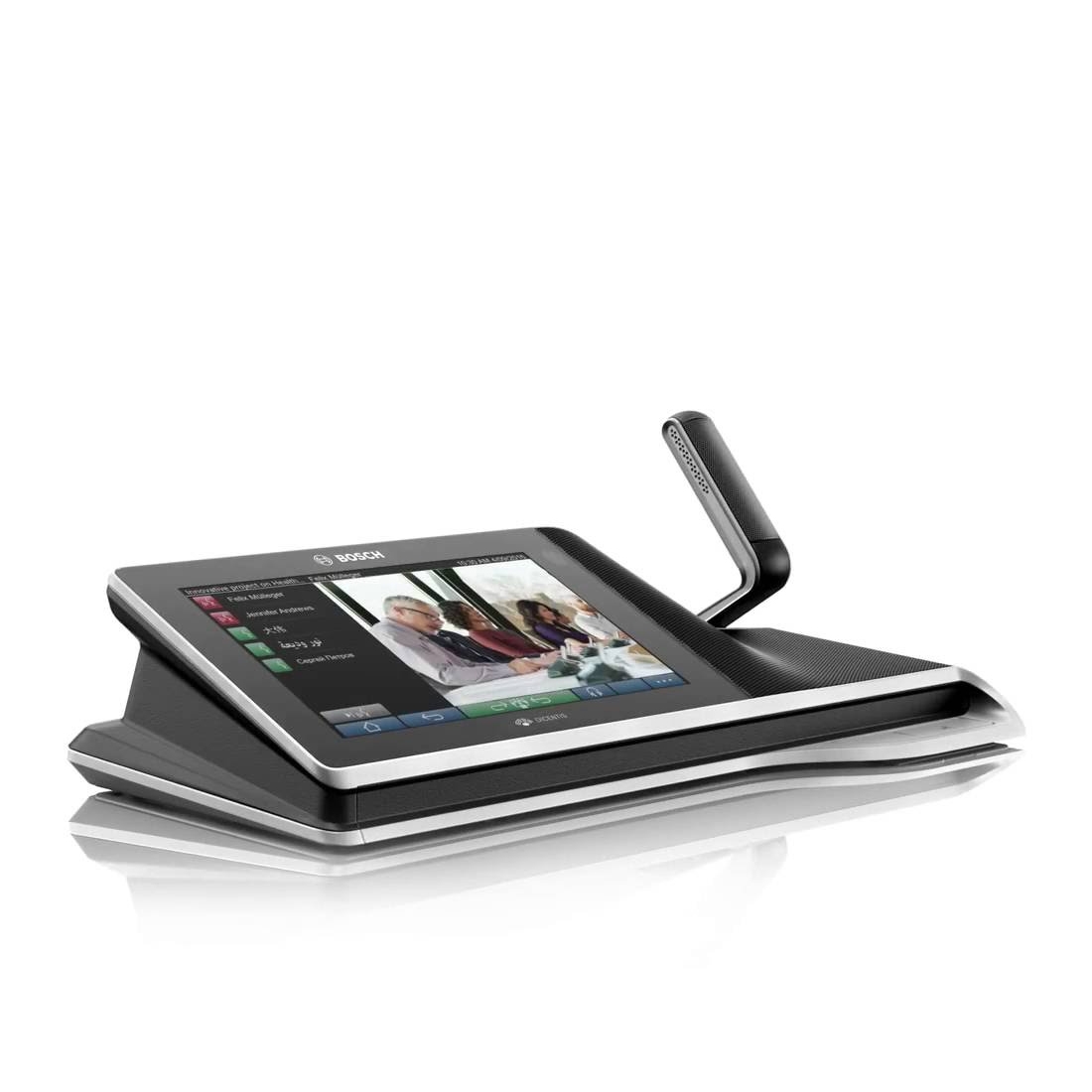

DCNM-MMD2 −Dicentis Multimedia Device

General

• 7″ capacitive touchscreen for video, meeting
  content and internet acces
• Built‑in Near Field Communication (NFC)
  contactless tag reade
• Unobtrusive pluggable microphone
• Built‑in two‑way loudspeaker
• Additional functionality via software licenses and third party/custom apps

Functions

• Full color 7” capacitive‑touch graphical display including:
  – Agenda and meeting data browsing.
  – Internet browsing.
  – Customer logo can be shown on login screen and home screen.
  – Live video (e.g. showing the current speaker).
  – Meeting management for the chair person.
  – Headphones volume control.
  – Possibility for adding 3rd party android app.
  – Functionality can be increased by adding software.
• Pluggable microphone.
• Built‑in 3M pixel camera for future use.
• Built‑in two‑way loudspeaker.
• Microphone on/off button or request‑to‑speak button.
• Microphone mute or chairperson priority button.
• Indicators showing: microphone on state, request‑to‑speak and possible‑to‑speak.
• Two‑way speaker system.
• Built‑in Near Field Communication (NFC) contactless tag reader
