Cineperm

Fixed Screens

Highlights:

  • Maximum image width up to 274 cm x 488 cm. Maximum image width for Truss Cineperm up to 762 cm wide.
  • Available in larger sizes with a truss-style square tubular aluminum welded perimeter frame. Reinforced in a 15 cm wide double truss with a 15 cm vinyl border.
  • Fixed screen designed to be wall-mounted or flown. Mounting fasteners not included.
  • Tubular aluminum frame finished in silver (standard). Optional black finish is available.

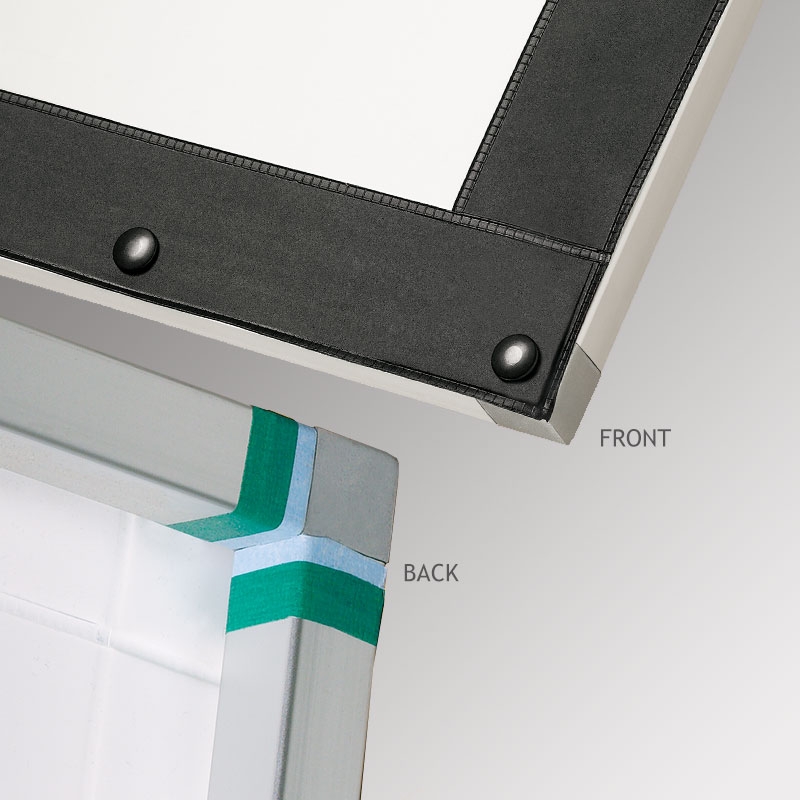

  • Snap-on viewing surface has 5 cm black vinyl borders.
  • Custom sizes available.

Cineperm

Designed to be wall-mounted, suspended from a ceiling, or flown, cineperm features an Economical, fixed screen that is versatile. The value of a fixed screen is the method used to attach The viewing surface to the frame. This flexible screen snaps onto the perimeter frame easily and Quickly without tools to create a perfectly flat viewing surface for better image quality. A black vinyl Border provides a contemporary, theater-like appearance for draper’s most economical fixed Frame projection screen.

Surfaces

Dimensions Data



AV Format
Size Image Area Case Length Net Wt.
(lbs.)
50″ x 50″ 50″ x 50″ 4’8-1/2″ 26
60″ x 60″ 60″ x 60″ 5’6-1/2″ 30
70″ x 70″ 70″ x 70″ 6’4-1/2″ 35
84″ x 84″ 84″ x 84″ 7’6-1/2″ 40
72″ x 96″ 72″ x 96″ 8’7″ 44
96″ x 96″ 96″ x 96″ 8’7″ 45
7′ x 9′ 7′ x 9′ 9’7″ 47
9′ x 9′ 9′ x 9′ 9’7″ 49
8′ x 10′ 8′ x 10′ 10’7″ 54
10′ x 10′ 10′ x 10′ 10’7″ 58
9′ x 12′ 9′ x 12′ 12’7″ 61
12′ x 12′ 12′ x 12′ 12’7″ 66

NTSC Format (4.3)
Size Image Area Case Length Net Wt.
(lbs.)
6′ 42-1/2″ x 56-1/2″ 5’6-1/2″ 30
7′ 50″ x 66-1/2″ 6’4-1/2″ 35
100″ 60″ x 80″ 7’6-1/2″ 40
10′ 69″ x 92″ 8’7″ 44
11′ 78″ x 104″ 9’7″ 47
150″ 87″ x 116″ 10’7″ 54
15′ 105″ x 140″ 12’7″ 61
200″ 118″ x 158″ 14’1″ 68

HDTV Format (16.9)
Size Image Area Case Length Net Wt.
(lbs.)
92″ 45″ x 80″ 7’6-1/2″ 40
106″ 52″ x 92″ 8’7″ 44
119″ 58″ x 104″ 9’7″ 46
133″ 65″ x 116″ 10’7″ 54
161″ 79″ x 140″ 12’7″ 61
184″ 90″ x 160″ 14’3″ 68

WideScreen Format (1.85:1)
Size Image Area Case Length Net Wt.
(lbs.)
99″ 47″ x 87″ 8’1″ 40
108″ 50″ x 92″ 8’7″ 44
120″ 56″ x 104″ 9’7″ 49
132″ 63″ x 116″ 10’7″ 54
162″ 76″ x 140″ 12’7″ 66
182″ 86-1/2″ x 160″ 14’3″ 68
