Baronet

Electric Projection Screen – Wall/Ceiling Mounted Non-Tensioned

Highlights:

  • Case dimensions 10 cm x 8 cm.
  • Maximum image width up to 244 cm wide, depending on surface selection.
  • Image area framed in black on all four sides, 30 cm extra drop standard.
  • Heavyduty motor 220V.
  • Custom sizes available.

Baronet

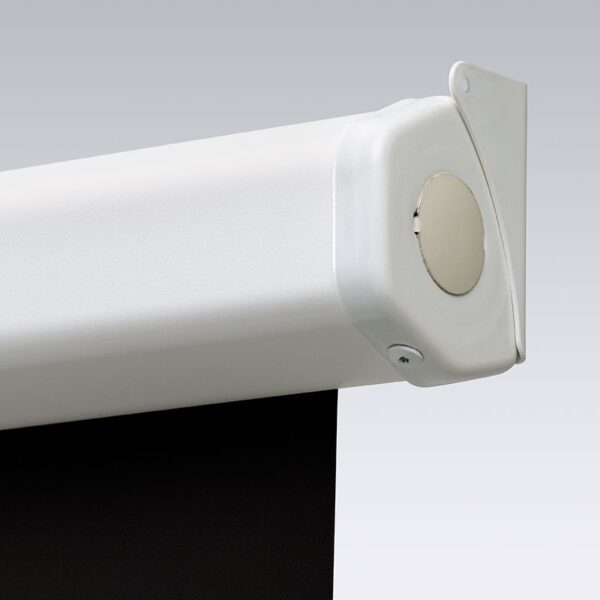

No electrician is required for the baronet wall- or ceiling-mounted, electric projection screen. Endcaps form universal mounting brackets for easy installation. Just install the electric screen and Plug the power cord into the nearest wall outlet. This free-hanging, fiberglass-backed projection Screen maintains flatness thanks to the weight of the screen and bottom dowel. The attractive, Slender pentagonal case design is scratch-resistant and fits into most spaces housing a quiet. Trouble-free motor-in-roller.

Surface

Dimensions Data

AV Format
Size Image Area Overall Area Case Length Net Wt. (lbs.)
Metric (cm) US
127 x 127 50 x 50
152 x 152 60 x 60
178 x 178 70 x 70
213 x 213 84 x 84
244 x 244 96 x 96
cm in
127 x 127 50 x 50
152 x 152 60 x 60
178 x 178 70 x 70
213 x 213 84 x 84
244 x 244 96 x 96
cm in
127 x 127 50 x 50
152 x 152 60 x 60
178 x 178 84 x 84
213 x 213 96 x 96
244 x 244 70 x 70
cm in
140 55
140 65
190 75
225 89
257 101
kg lbs
7 15
8 18
9 20
11 24
12 26
NTSC Format (4.3)
Size
Metric (cm) US
183 6′
213 7′
244 100″
305 10′
Image Area
cm in
108 x 144 42-1/2 x 56-1/2
127 x 169 50 x 66-1/2
152 x 203 60 x 80
175 x 234 69 x 92
Overall Area
cm in
117 x 151 46 x 59-1/2
135 x 177 53-1/2 x 69-1/2
160 x 212 64 x 83-1/2
191 x 244 73 x 96
Case Length
cm in
164 65
190 75
225 89
257 101
Net Wt.
kg lbs
8 18
9 20
11 24
12 26
HDTV Format (16.9)
Size
Metric (cm) US
234 92″
269 106″
Image Area
cm in
114 x 203 45 x 80
132 x 234 52 x 92
Overall Area
cm in
125 x 212 49 x 83-1/2
142 x 244 56 x 96
Case Length
cm in
225 89
257 101
Net Wt.
kg lbs
11 24
12 26
