Artisan/Series M


Manual Projection Screen – Wall/Ceiling Recessed Non-Tensioned

Highlights:

  • For larger screen widths, case dimensions are 11 cm x 11 cm. For smaller screen widths of 178 cm or less, case dimensions are 9 cm x 9 cm.
  • Maximum fabric width up to 244 cm wide.

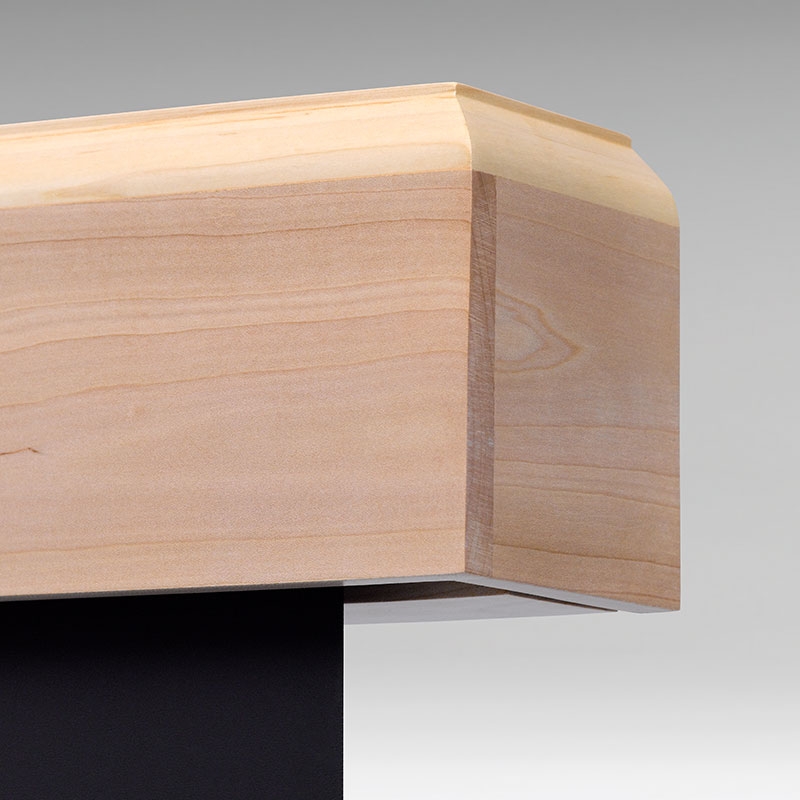

  • Cases available in seven hand-rubbed solid hardwood finishes or five plastic laminate colors. Custom finishes are available.
  • Case has no exposed screw heads.
  • Custom sizes available.

Artisan/Series M

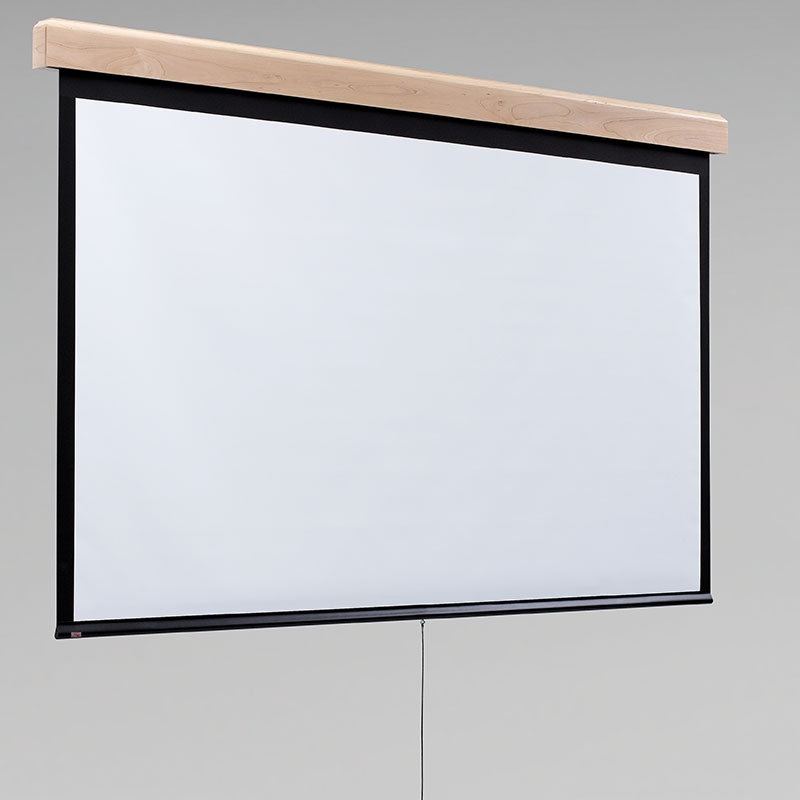

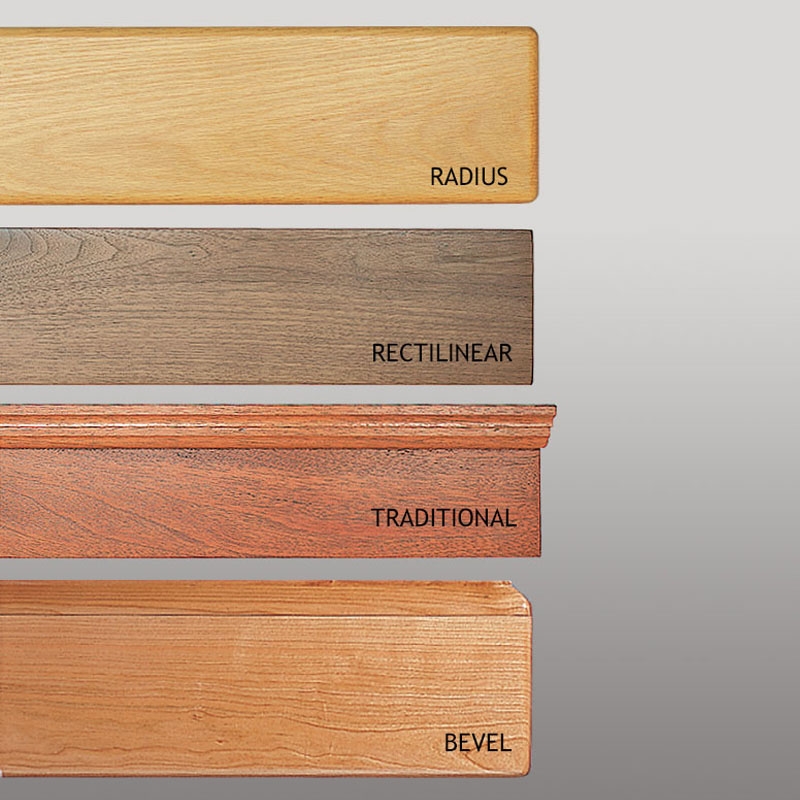

A stylish solution for any home theater or business environment, the artisan m wall- or ceiling- Mounted, manually-operated, spring-roller projection screen offers the beauty of natural wood. It Features either a solid, hand-rubbed hardwood or plastic laminate case with an array of colors and Finishes, or custom color matching to the existing interior decor. There are several case style Options to choose from making this projection screen an attractive addition to any home or Commercial setting. This free-hanging, fiberglass-backed projection screen maintains flatness Thanks to the weight of the screen and bottom dowel.

Surfaces

Dimension Data



AV Format

Size Image Area Case Length Net Wt. (lbs.)
50″ x 50″ 50″ x 50″ 4’8-1/2″ 26
60″ x 60″ 60″ x 60″ 5’6-1/2″ 30
70″ x 70″ 70″ x 70″ 6’4-1/2″ 35
84″ x 84″ 84″ x 84″ 7’6-1/2″ 40
72″ x 96″ 72″ x 96″ 8’7″ 44
96″ x 96″ 96″ x 96″ 8’7″ 45
7′ x 9′ 7′ x 9′ 9’7″ 47
9′ x 9′ 9′ x 9′ 9’7″ 49
8′ x 10′ 8′ x 10′ 10’7″ 54
10′ x 10′ 10′ x 10′ 10’7″ 58
9′ x 12′ 9′ x 12′ 12’7″ 61
12′ x 12′ 12′ x 12′ 12’7″ 66

NTSC Format (4.3)

Size Image Area Case Length Net Wt. (lbs.)
6′ 42-1/2″ x 56-1/2″ 5’6-1/2″ 30
7′ 50″ x 66-1/2″ 6’4-1/2″ 35
100″ 60″ x 80″ 7’6-1/2″ 40
10′ 69″ x 92″ 8’7″ 44
11′ 78″ x 104″ 9’7″ 47
150″ 87″ x 116″ 10’7″ 54
15′ 105″ x 140″ 12’7″ 61
200″ 118″ x 158″ 14’1″ 68

HDTV Format (16.9)

Size Image Area Case Length Net Wt. (lbs.)
92″ 45″ x 80″ 7’6-1/2″ 40
106″ 52″ x 92″ 8’7″ 44
119″ 58″ x 104″ 9’7″ 46
133″ 65″ x 116″ 10’7″ 54
161″ 79″ x 140″ 12’7″ 61
184″ 90″ x 160″ 14’3″ 68

WideScreen Format (1.85:1)

Size Image Area Case Length Net Wt. (lbs.)
99″ 47″ x 87″ 8’1″ 40
108″ 50″ x 92″ 8’7″ 44
120″ 56″ x 104″ 9’7″ 49
132″ 63″ x 116″ 10’7″ 54
162″ 76″ x 140″ 12’7″ 66
182″ 86-1/2″ x 160″ 14’3″ 68
