Artisan/Series E

Electric Projection Screen – Wall/Ceiling Mounted Non-Tensioned

Highlights:

  • Case dimensions 13 cm x 13 cm. Bevel case style dimensions 16 cm high.
  • Maximum image width up to 244 cm wide, depending on surface selection.
  • AV format, HDTV, and 16:10 format have image area framed with black on all fours sides. Black side borders are available on request for AV format screens.
  • Black drop standard, depending on screen size. Extra drop above image area available upon request.
  • Mounts flush to the wall with Z-clips or suspends from the ceiling with no exposed screwheads or mounting brackets.

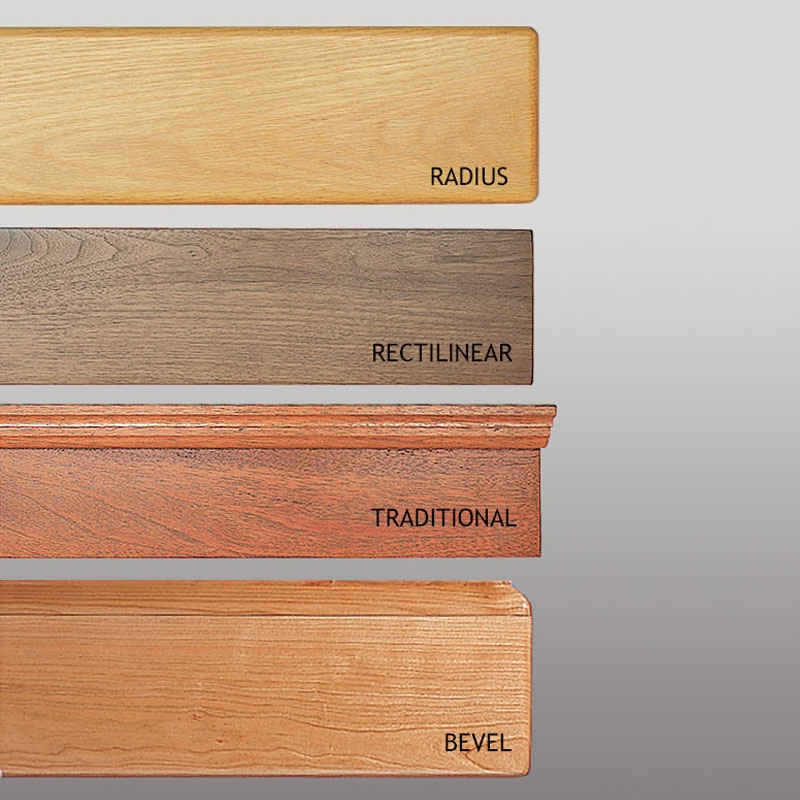

  • Hardwood case styles: rectilinear, radius, bevel, or traditional. Choose from seven solid, hand-rubbed hardwood finishes. Custom finishes available.
  • Plastic laminate case style is rectilinear. Choose from five laminate finishes or optional custom finish.
  • Heavyduty 220V motor, 3-position switch (standard). Other control options are available.
  • Custom sizes available.

Artisan/Series E

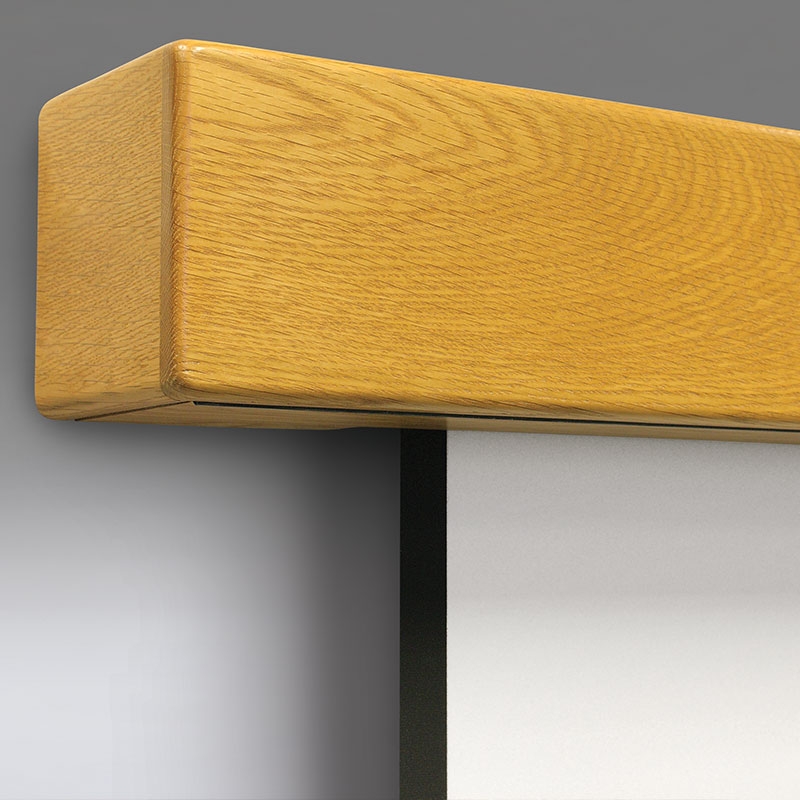

A stylish solution for any home theater or business environment, the Artisan E wall- or ceiling-mounted, electric projection screen offers the beauty of natural wood. It features either a solid, hand-rubbed hardwood or plastic laminate case with an array of colors and finishes, or custom color matching to the existing interior decor. There are several case style options to choose from, making this projection screen an attractive addition to any home or commercial setting. This free-hanging, fiberglass-backed projection screen maintains flatness thanks to the weight of the screen and bottom dowel

Surface

Dimensions Data



AV Format
Size Image Area Case Length Net Wt.
(lbs.)
50″ x 50″ 50″ x 50″ 4’8-1/2″ 26
60″ x 60″ 60″ x 60″ 5’6-1/2″ 30
70″ x 70″ 70″ x 70″ 6’4-1/2″ 35
84″ x 84″ 84″ x 84″ 7’6-1/2″ 40
72″ x 96″ 72″ x 96″ 8’7″ 44
96″ x 96″ 96″ x 96″ 8’7″ 45
7′ x 9′ 7′ x 9′ 9’7″ 47
9′ x 9′ 9′ x 9′ 9’7″ 49
8′ x 10′ 8′ x 10′ 10’7″ 54
10′ x 10′ 10′ x 10′ 10’7″ 58
9′ x 12′ 9′ x 12′ 12’7″ 61
12′ x 12′ 12′ x 12′ 12’7″ 66

NTSC Format (4.3)
Size Image Area Case Length Net Wt.
(lbs.)
6′ 42-1/2″ x 56-1/2″ 5’6-1/2″ 30
7′ 50″ x 66-1/2″ 6’4-1/2″ 35
100″ 60″ x 80″ 7’6-1/2″ 40
10′ 69″ x 92″ 8’7″ 44
11′ 78″ x 104″ 9’7″ 47
150″ 87″ x 116″ 10’7″ 54
15′ 105″ x 140″ 12’7″ 61
200″ 118″ x 158″ 14’1″ 68

HDTV Format (16.9)
Size Image Area Case Length Net Wt.
(lbs.)
92″ 45″ x 80″ 7’6-1/2″ 40
106″ 52″ x 92″ 8’7″ 44
119″ 58″ x 104″ 9’7″ 46
133″ 65″ x 116″ 10’7″ 54
161″ 79″ x 140″ 12’7″ 61
184″ 90″ x 160″ 14’3″ 68

WideScreen Format (1.85:1)
Size Image Area Case Length Net Wt.
(lbs.)
99″ 47″ x 87″ 8’1″ 40
108″ 50″ x 92″ 8’7″ 44
120″ 56″ x 104″ 9’7″ 49
132″ 63″ x 116″ 10’7″ 54
162″ 76″ x 140″ 12’7″ 66
182″ 86-1/2″ x 160″ 14’3″ 68
