Access XL/Series V

Electric Projection Screen – Ceiling Recessed Tab-Tensioned

Highlights:

  • Case dimensions are 26 cm x 24 cm, includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
  • Maximum image width up to 549 cm wide, depending on surface selection.
  • RF welded tabs eliminate stickiness and tab separation. Tabs warranted against separation for five years.

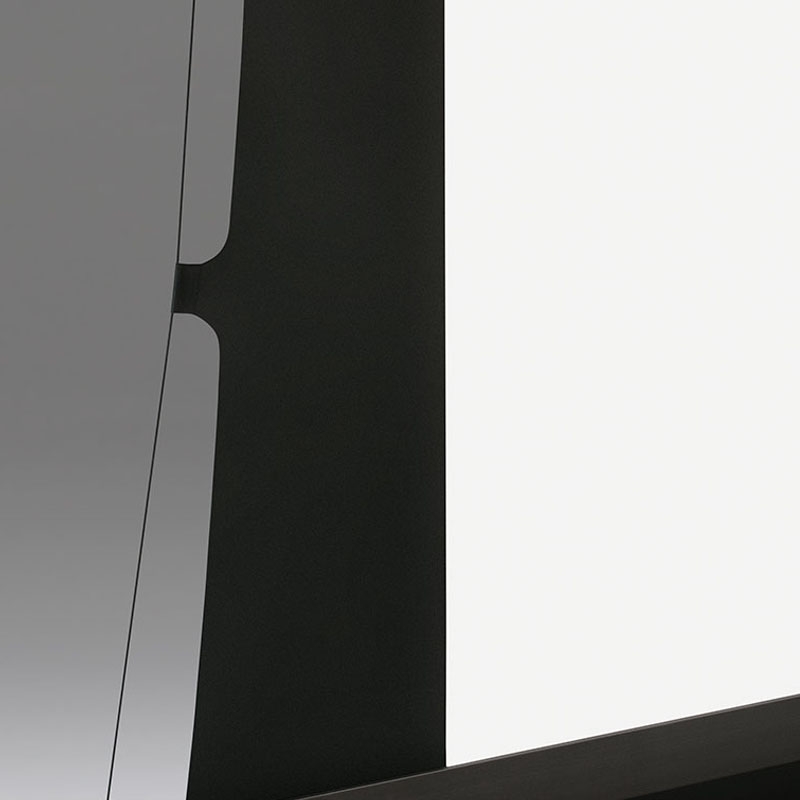

  • Image area fully framed with black. Standard 30 cm black drop at top of viewing area.
  • Adjustable or removable hoisting brackets included for easy lifting during installation.

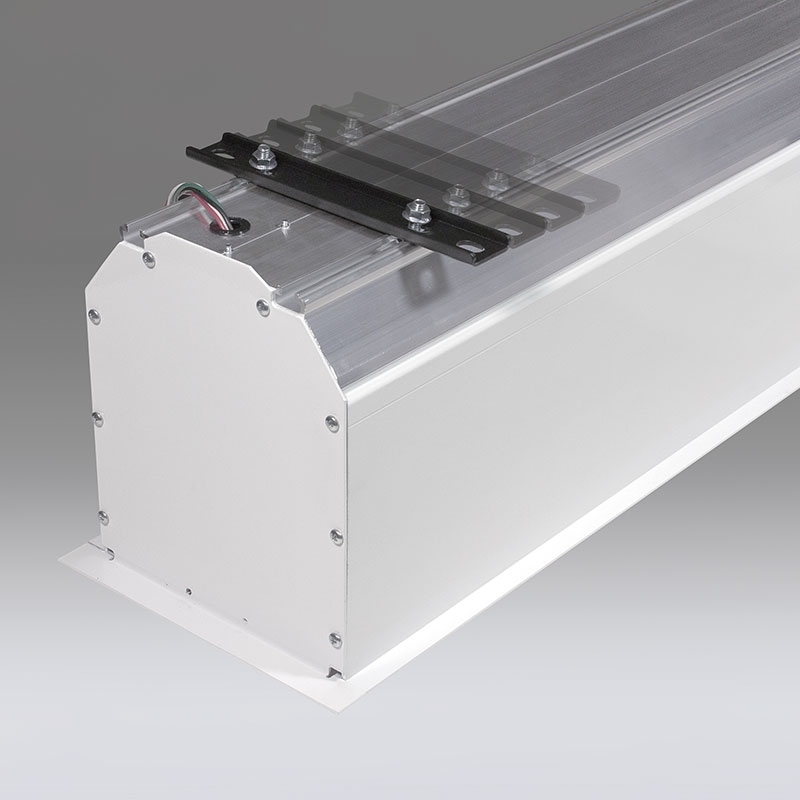

  • Sliding brackets on top of case allow unlimited adjustment for mounting.
  • Sliding brackets inside case accommodate different size screens.

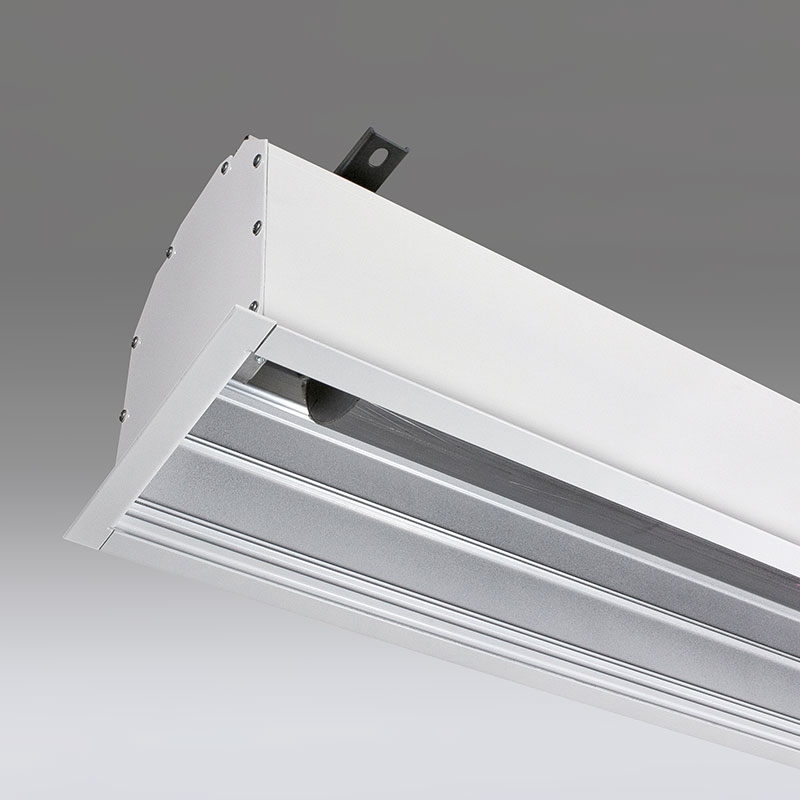

  • Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.
  • Heavyduty 220V motor, 3-position switch (standard).
  • White case standard, black available upon request.
  • Custom sizes available.

Access XL/Series V

Large venues—such as ballrooms, conference centers, or university classrooms—can benefit from the larger projection screen sizes available in the access xl v electric, ceiling-recessed, tab-tensioned projection screen. Tab-tensioned screens provide a perfectly flat viewing surface with better image quality. Draper’s rf welded tabs create a more durable seal that eliminates separation and stickiness. The bottom closure panel provides access to all components for easier service and maintenance.

Surface

Dimensions Data



AV Format
Size Image Area Case Length Net Wt.
(lbs.)
50″ x 50″ 50″ x 50″ 4’8-1/2″ 26
60″ x 60″ 60″ x 60″ 5’6-1/2″ 30
70″ x 70″ 70″ x 70″ 6’4-1/2″ 35
84″ x 84″ 84″ x 84″ 7’6-1/2″ 40
72″ x 96″ 72″ x 96″ 8’7″ 44
96″ x 96″ 96″ x 96″ 8’7″ 45
7′ x 9′ 7′ x 9′ 9’7″ 47
9′ x 9′ 9′ x 9′ 9’7″ 49
8′ x 10′ 8′ x 10′ 10’7″ 54
10′ x 10′ 10′ x 10′ 10’7″ 58
9′ x 12′ 9′ x 12′ 12’7″ 61
12′ x 12′ 12′ x 12′ 12’7″ 66

NTSC Format (4.3)
Size Image Area Case Length Net Wt.
(lbs.)
6′ 42-1/2″ x 56-1/2″ 5’6-1/2″ 30
7′ 50″ x 66-1/2″ 6’4-1/2″ 35
100″ 60″ x 80″ 7’6-1/2″ 40
10′ 69″ x 92″ 8’7″ 44
11′ 78″ x 104″ 9’7″ 47
150″ 87″ x 116″ 10’7″ 54
15′ 105″ x 140″ 12’7″ 61
200″ 118″ x 158″ 14’1″ 68

HDTV Format (16.9)
Size Image Area Case Length Net Wt.
(lbs.)
92″ 45″ x 80″ 7’6-1/2″ 40
106″ 52″ x 92″ 8’7″ 44
119″ 58″ x 104″ 9’7″ 46
133″ 65″ x 116″ 10’7″ 54
161″ 79″ x 140″ 12’7″ 61
184″ 90″ x 160″ 14’3″ 68

WideScreen Format (1.85:1)
Size Image Area Case Length Net Wt.
(lbs.)
99″ 47″ x 87″ 8’1″ 40
108″ 50″ x 92″ 8’7″ 44
120″ 56″ x 104″ 9’7″ 49
132″ 63″ x 116″ 10’7″ 54
162″ 76″ x 140″ 12’7″ 66
182″ 86-1/2″ x 160″ 14’3″ 68
