Access Multiview /Series V

Electric Projection Screen – Ceiling Recessed Tab-Tensioned

Highlights:

  • Case dimensions 20 cm x 23 cm includes trim flange. Built-in controls may increase length of case.
  • Maximum image width up to 315 cm wide, depending on surface selection.
  • Image area fully framed with black. Standard 30 cm black drop at top of viewing area.
  • Flat black mask on second motor-in-roller converts projection screen to an alternate viewing format by masking the right and left sides of the viewing surface.
  • Sliding brackets on top of the case allow for adjustments for mounting.
  • Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.
  • Height of viewing surface remains constant.

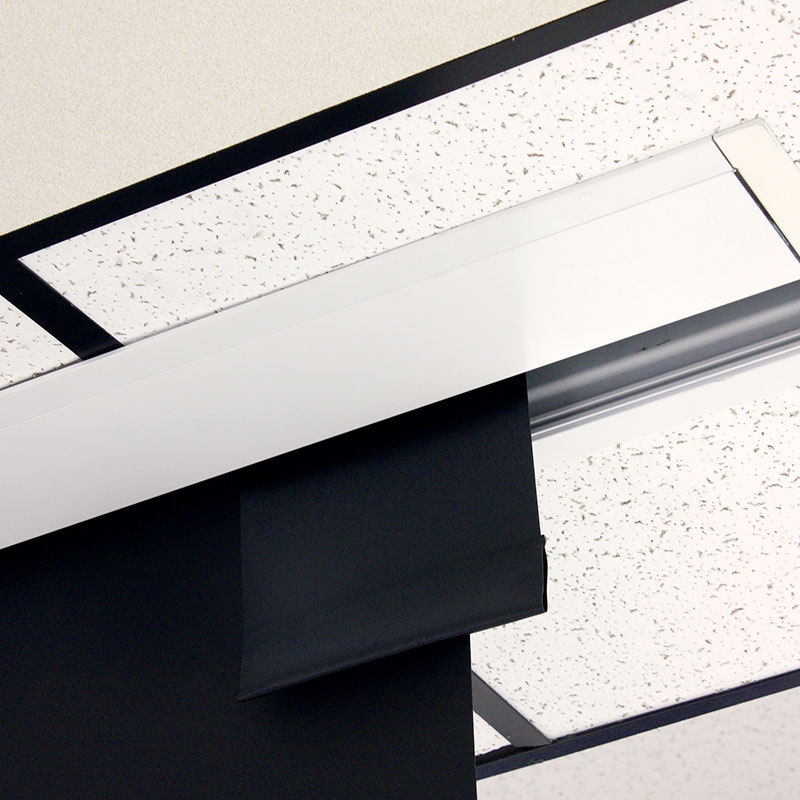

  • Ceiling-recessed: viewing surface retracts completely into the case providing complete concealment.
  • Heavyduty 220V motor, 3-position switches (standard).
  • Low voltage, video interface or other controls can be built into housing for below ceiling access.
  • White case standard, black available upon request.
  • Custom sizes available.

Access Multiview /Series V

The access multiview v electric, ceiling-recessed, tab-tensioned projection screen features a dual- Masking system with two different aspect ratios. The dual masking system features the ability to Quickly convert from one screen size to another to create a new viewing format. Tab-tensioned Screens provide a perfectly flat viewing surface with better image quality. Draper’s rf welded tabs Create a more durable seal that eliminates separation and stickiness. The bottom closure panel Provides access to all components for easier service and maintenance.

Surface

Dimensions Data



AV Format
Size Image Area Case Length Net Wt.
(lbs.)
50″ x 50″ 50″ x 50″ 4’8-1/2″ 26
60″ x 60″ 60″ x 60″ 5’6-1/2″ 30
70″ x 70″ 70″ x 70″ 6’4-1/2″ 35
84″ x 84″ 84″ x 84″ 7’6-1/2″ 40
72″ x 96″ 72″ x 96″ 8’7″ 44
96″ x 96″ 96″ x 96″ 8’7″ 45
7′ x 9′ 7′ x 9′ 9’7″ 47
9′ x 9′ 9′ x 9′ 9’7″ 49
8′ x 10′ 8′ x 10′ 10’7″ 54
10′ x 10′ 10′ x 10′ 10’7″ 58
9′ x 12′ 9′ x 12′ 12’7″ 61
12′ x 12′ 12′ x 12′ 12’7″ 66

NTSC Format (4.3)
Size Image Area Case Length Net Wt.
(lbs.)
6′ 42-1/2″ x 56-1/2″ 5’6-1/2″ 30
7′ 50″ x 66-1/2″ 6’4-1/2″ 35
100″ 60″ x 80″ 7’6-1/2″ 40
10′ 69″ x 92″ 8’7″ 44
11′ 78″ x 104″ 9’7″ 47
150″ 87″ x 116″ 10’7″ 54
15′ 105″ x 140″ 12’7″ 61
200″ 118″ x 158″ 14’1″ 68

HDTV Format (16.9)
Size Image Area Case Length Net Wt.
(lbs.)
92″ 45″ x 80″ 7’6-1/2″ 40
106″ 52″ x 92″ 8’7″ 44
119″ 58″ x 104″ 9’7″ 46
133″ 65″ x 116″ 10’7″ 54
161″ 79″ x 140″ 12’7″ 61
184″ 90″ x 160″ 14’3″ 68

WideScreen Format (1.85:1)
Size Image Area Case Length Net Wt.
(lbs.)
99″ 47″ x 87″ 8’1″ 40
108″ 50″ x 92″ 8’7″ 44
120″ 56″ x 104″ 9’7″ 49
132″ 63″ x 116″ 10’7″ 54
162″ 76″ x 140″ 12’7″ 66
182″ 86-1/2″ x 160″ 14’3″ 68
