Manual Projection Screen – Wall/Ceiling Recessed Tensioned

Highlights:

  • Case dimensions are 14 cm x 16 cm, includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
  • Maximum image width up to 305 cm wide, depending on surface selection.
  • AV format, HDTV AND 16:10 format have image area framed with black on all fours sides. Black side borders are available on request for AV format Screens.
  • Spring-roller operated screen for ceiling–recessed installation.

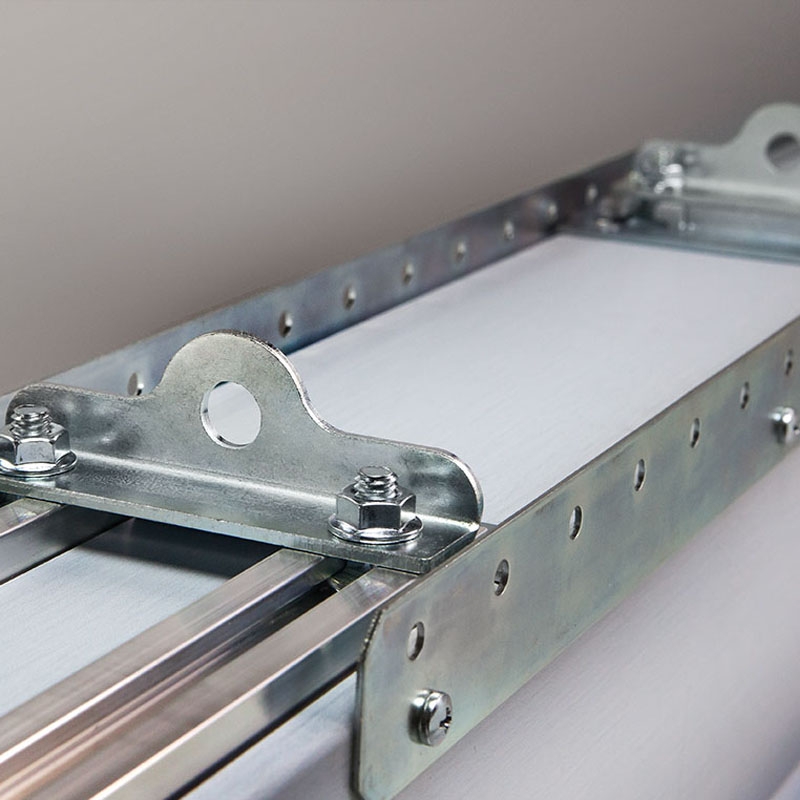

  • Adjustable or removable hoisting brackets included for easy lifting during installation.
  • Sliding brackets inside case accommodate different size screens.
  • Optional, removable aluminum operating pole available in lengths of 122 cm or 183 cm.
  • White case standard, black available upon request
  • Custom sizes available.

Access FIT M

Compact housing allows the access fit m ceiling-recessed, manual projection screen to fit tighter Ceiling spaces. It is an ideal choice for boardrooms, training rooms, universities, and churches. This Free-hanging, fiberglass-backed projection screen maintains flatness thanks to the weight of the Screen and bottom dowel. The bottom closure panel provides access to all components for easier Service and maintenance. Installation of the case during the initial phase of construction eliminates Job site damage, allowing for installation of the screen at a later time.

Surfaces

Dimensions Data



AV Format
Size Image Area Case Length Net Wt.
(lbs.)
50″ x 50″ 50″ x 50″ 4’8-1/2″ 26
60″ x 60″ 60″ x 60″ 5’6-1/2″ 30
70″ x 70″ 70″ x 70″ 6’4-1/2″ 35
84″ x 84″ 84″ x 84″ 7’6-1/2″ 40
72″ x 96″ 72″ x 96″ 8’7″ 44
96″ x 96″ 96″ x 96″ 8’7″ 45
7′ x 9′ 7′ x 9′ 9’7″ 47
9′ x 9′ 9′ x 9′ 9’7″ 49
8′ x 10′ 8′ x 10′ 10’7″ 54
10′ x 10′ 10′ x 10′ 10’7″ 58
9′ x 12′ 9′ x 12′ 12’7″ 61
12′ x 12′ 12′ x 12′ 12’7″ 66

NTSC Format (4.3)
Size Image Area Case Length Net Wt.
(lbs.)
6′ 42-1/2″ x 56-1/2″ 5’6-1/2″ 30
7′ 50″ x 66-1/2″ 6’4-1/2″ 35
100″ 60″ x 80″ 7’6-1/2″ 40
10′ 69″ x 92″ 8’7″ 44
11′ 78″ x 104″ 9’7″ 47
150″ 87″ x 116″ 10’7″ 54
15′ 105″ x 140″ 12’7″ 61
200″ 118″ x 158″ 14’1″ 68

HDTV Format (16.9)
Size Image Area Case Length Net Wt.
(lbs.)
92″ 45″ x 80″ 7’6-1/2″ 40
106″ 52″ x 92″ 8’7″ 44
119″ 58″ x 104″ 9’7″ 46
133″ 65″ x 116″ 10’7″ 54
161″ 79″ x 140″ 12’7″ 61
184″ 90″ x 160″ 14’3″ 68

WideScreen Format (1.85:1)
Size Image Area Case Length Net Wt.
(lbs.)
99″ 47″ x 87″ 8’1″ 40
108″ 50″ x 92″ 8’7″ 44
120″ 56″ x 104″ 9’7″ 49
132″ 63″ x 116″ 10’7″ 54
162″ 76″ x 140″ 12’7″ 66
182″ 86-1/2″ x 160″ 14’3″ 68
